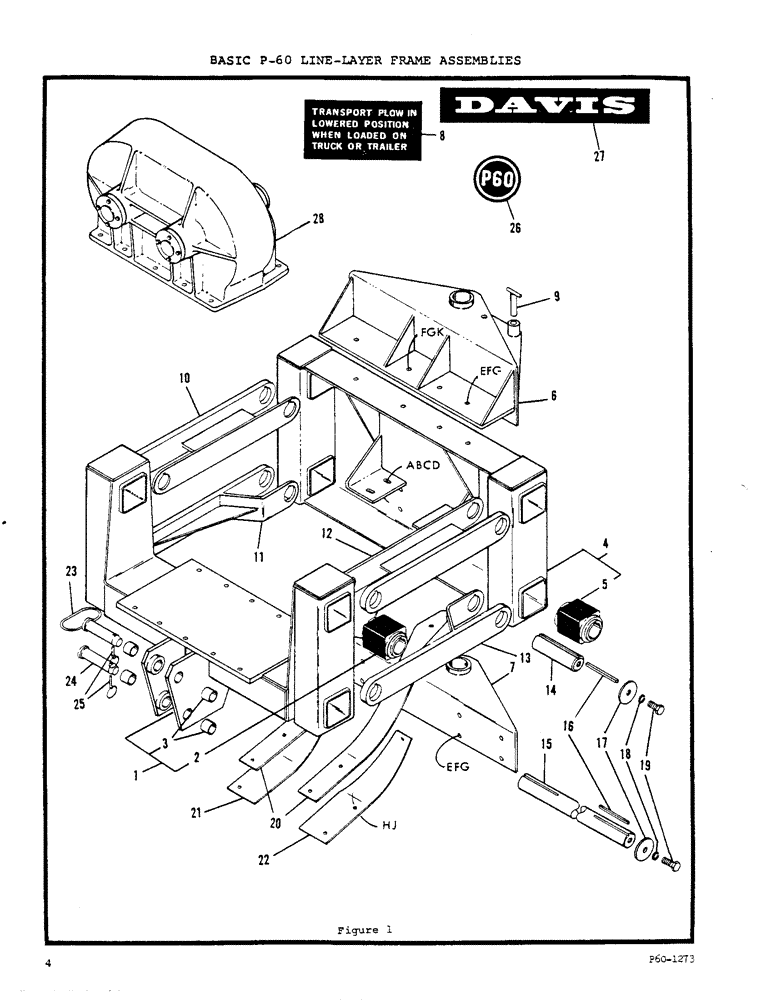

Запчасти Case P-60 (04) - BASIC P-60 LINE-LAYER FRAME ASSEMBLIES

1

H562538

FRAME ASSY

Gear Case Mounting Asm, Includes: Ref. 2 and 3

1шт.

These parts used to spec. No. P16Ws04, P16FG05 and P16FD06.

1шт.

2

H235069

SEAL

Rubber Joint

4шт.

Rubber joints should be ordered in complete sets. In the event this is not done then they must be replaced in pairs. For example if the rear upper left joint is replaced, then the rear upper right must be replaced.

1шт.

These parts used spec. No. P16WS04, P16FG05, P16FD06 and up.

1шт.

3

H131102

BUSHING

4шт.

4

H562520

Trunion Frame Asm, Includes: Ref. 5

1шт.

5

H235069

SEAL

Rubber Joint

4шт.

Rubber joints should be ordered in complete sets. In the event this is not done then they must be replaced in pairs. For example if the rear upper left joint is replaced, then the rear upper right must be replaced.

1шт.

6

H560284

Upper Pivot Bracket

1шт.

7

H560276

PIVOT

Lower Pivot Bracket

1шт.

8

H208280

DECAL

- Transport Position

1шт.

9

H565259

PIN

Lock Pin

1шт.

10

H568899

Upper Link - Left, Serial Range: -5100

1шт.

10

H574236

LINK ASSY.

Upper Link - Left, Start Serial: 5100

1шт.

11

H560391

PITMAN ASSY.

Lower Link - Left, Serial Range: -5100

1шт.

11

H574210

LINK ASSY.

Lower Link - Left, Start Serial: 5100

1шт.

12

H568907

Upper Link - Right, Serial Range: -5100

1шт.

12

H574244

LINK ASSY.

Upper Link - Right, Start Serial: 5100

1шт.

13

H560409

Lower Link - Right, Serial Range: -5100

1шт.

13

H574228

LINK ASSY.

Lower Link - Right, Start Serial: 5100

1шт.

14

H195222

SHAFT

6шт.

15

H195230

SHAFT

1шт.

16

H237461

KEY

(1/4" sq x 4 11/16")

8шт.

17

H196626

WASHER

Retainer Washer

14шт.

18

H739250

WASHER

(5/8" - Lock)

14шт.

19

H711366

SCREW

HHCS (5/8 x 1 1/4" NC)

14шт.

20

H142927

VALVE SPRING

Shoe Spring

2шт.

21

H149674

SHOE (ASSY)

Spring Shoe

1шт.

22

H149666

SHOE (ASSY)

Spring Shoe

1шт.

23

H531830

AXLE PIN

Loop Pin

1шт.

24

H079293

Pin (1 1/8" x 4 7/8")

1шт.

25

H032367

Klik Pin

2шт.

26

H198796

DECAL

- P-60

2шт.

27

H052118

Decal - Davis

1шт.

28

Gear case Asm (See figure 6)

1шт.

a

H711382

BOLT

HHCS (5/8 x 1 3/4 " NC)

4шт.

b

H735837

NUT

(5/8" NC)

4шт.

c

H739250

WASHER

(5/8" Lock)

4шт.

d

H738500

WASHER

(5/8" Flat)

4шт.

e

H710640

X

HHCS (1/2" x 1 1 /2" NC)

16шт.

f

H738484

WASHER

(1/2" Flat)

17шт.

g

H738039

LOCK NUT

Nut (1/2" NC - Lock)

17шт.

h

H734400

BOLT

Cap Screw (3/8" x 1" NF CSINK HD)

6шт.

j

H737874

HARDWARE

Nut (3/8" NF - Lock)

6шт.

k

H710657

BOLT

HHCS (1/2" x 1 3/4" NC)

11шт.
