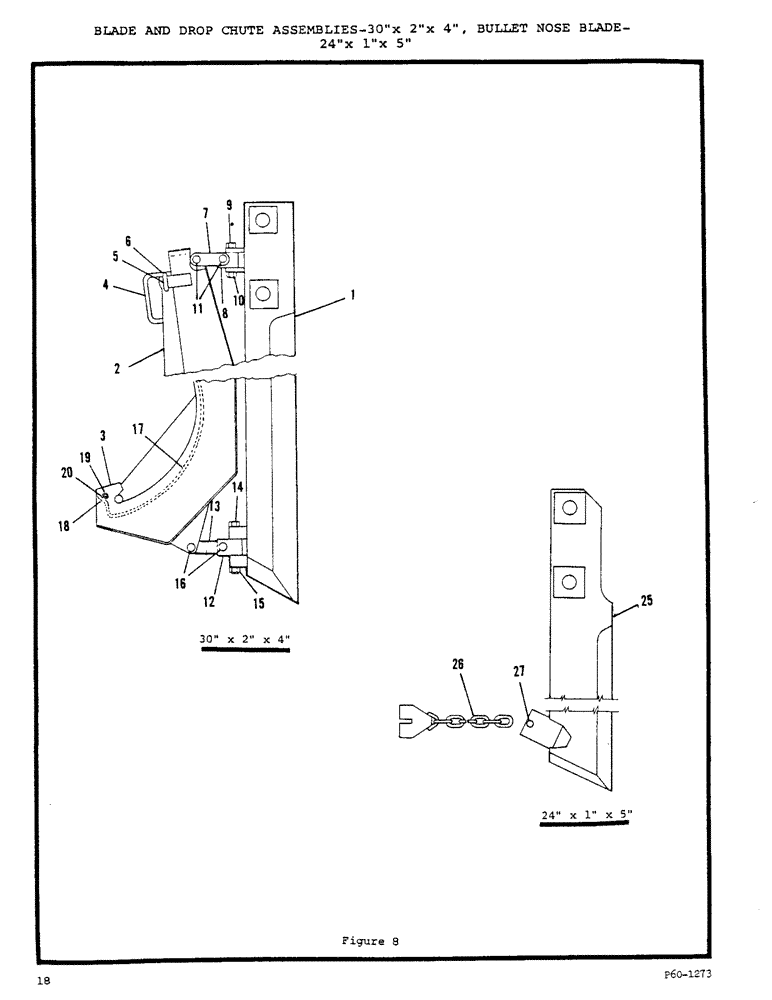

Запчасти Case P-60 (18) - BLADE AND DROP CHUTE ASSEMBLIES-30" X 2" X 4", BULLET NOSE BLADE- 24" X 1" 5"

1

H545079

BLADE

Asm - 30" x 2" x 4"

1шт.

2

H575423

CHUTE ASSY.

Drop Chute Asm - 30" x 2", Includes: Ref. 3 - 20

1шт.

3

H546556

CHUTE ASSY.

Drop Chute

1шт.

4

H546549

GUIDE

Drop Chute Gate

1шт.

5

H537787

AXLE PIN

Gate Pin

1шт.

6

H032292

Hair Pin

1шт.

7

H133157

DRAG LINK

Upper Link

1шт.

8

H142349

BLOCK

Upper Link Block

1шт.

9

H709915

BOLT

HHCS (3/8" x 2 1/2" NC)

1шт.

10

H737452

NUT

(3/8" NC)

1шт.

11

H142752

RIVET

- Upper Link

2шт.

12

H133736

JOINT TURNING

Lower Link Block

1шт.

13

H133165

DRAG LINK

Lower Link

1шт.

14

H710749

X

HHCS (1/2" x 4" NC)

1шт.

15

H737759

NUT

(1/2" NC Jam - Lock)

1шт.

16

H133785

RIVET

- Lower Link

2шт.

17

H152322

EXTENSION

Gate Extension

1шт.

18

H734400

BOLT

FHCS (3/8" x 1" NF - Allen HD)

2шт.

19

H735936

NUT

(3/8" NF)

2шт.

20

H739219

LOCK WASHER

Washer (3/8" Lock)

2шт.

25

H577932

BLADE

Bullet Nose Blade Asm - 24" x 1" x 5"

1шт.

26

H578252

ADAPTER

Chinese Finger Ball Adapter Asm

1шт.

27

H237347

RIVET

- Adapter To Blade

1шт.
