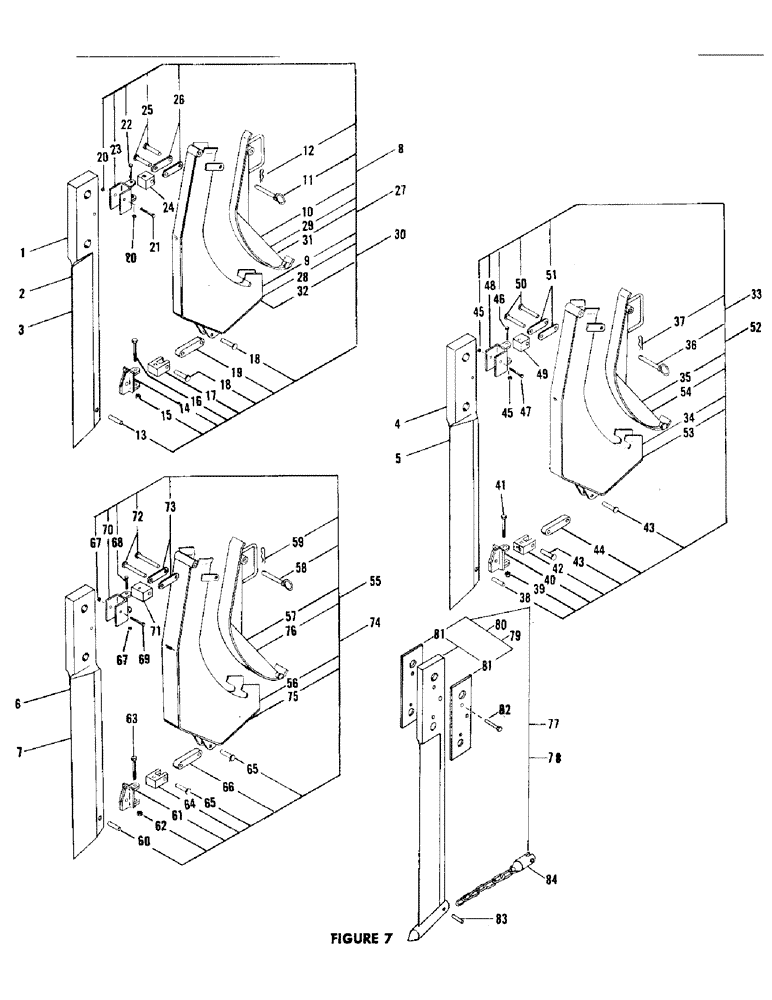

Запчасти Case P-50 (10) - BLADES AND DROP CHUTES

1

8H33-A-3

BLADE (1-3/4" x 18") (Order under equipment)

1шт.

2

8H33-A-4

BLADE (1-1/4" x 24") (Order under equipment)

1шт.

3

8H33-A-5

BLADE (1-1/4" x 30") (Order under equipment)

1шт.

4

8H33-A-6

BLADE (1-1/2" x 18") (Order under equipment)

1шт.

5

8H33-A-7

BLADE (1-1/2" x 24") (Order under equipment)

1шт.

6

8H3-A-9

BLADE (1-3/4" x 18") (Order under equipment)

1шт.

7

8H33-A-10

BLADE (1-3/4" x 24") (Order under equipment)

1шт.

8

8H33-A-11

DROP CHUTE ASSEMBLY (1-1/4" x 18") (Order under equipment)

1шт.

9

8H33-81147W

DROP CHUTE

1шт.

10

8H33-8148W

DROP CHUTE GATE

1шт.

11

8H33-81126W

GATE PING

1шт.

12

8B6-3229

HAIRPIN

1шт.

13

8H30-13392

RIVET

1шт.

14

8H33-81196W

LOWER ADAPTER

1шт.

15

1086-08

NUT (1/2" NC - lock)

1шт.

16

1611-0824

BOLT (1/2" x 2-1/2" NC)

1шт.

17

8H33-13373

LOWER PIVOT BLOCK

1шт.

18

8H33-13378

RIVET

2шт.

19

8H33-13316

LOWER LINK

1шт.

20

1086-6

NUT (3/8" NC - lock)

2шт.

21

1611-0620

BOLT (3/8" x 2" NC)

1шт.

22

1611-0624

BOLT (3/8" x 2-1/2" NC)

1шт.

23

8H28-80914W

BLADE ADAPTER

1шт.

24

8H33-13374

UPPER PIVOT BLOCK

1шт.

25

8H33-13379

RIVET

2шт.

26

8H33-13315

UPPER LINK

2шт.

27

8H33-A-12

DROP CHUTE ASSEMBLY (1-1/4" x 24") (Order under equipment) (Also contains items 11 through 26)

1шт.

28

8H33-81136W

DROP CHUTE

1шт.

29

8H33-81137W

DROP CHUTE GATE

1шт.

30

8H33-A-13

DROP CHUTE ASSEMBLY (1-1/4" x 30") (Order under equipment) (Also contains items 11 through 26)

1шт.

31

8H33-81134W

DROP CHUTE

1шт.

32

8H33-81132W

DROP CHUTE GATE

1шт.

33

8H33-A-14

DROP CHUTE ASSEMBLY (1-1/2" x 18") (Order under equipment)

1шт.

34

8H33-81138W

DROP CHUTE

1шт.

35

8H33-81139W

DROP CHUTE GATE

1шт.

36

8H33-81126W

GATE PIN

1шт.

37

8B6-3229

HAIR PIN

1шт.

38

8H33-13393

RIVET

1шт.

39

1086-08

NUT (1/2" NC - lock)

1шт.

40

8H33-81196W

LOWER ADAPTER

1шт.

41

1611-0824

BOLT (1/2" x 2-1/2" NC)

1шт.

42

8H33-13373

LOWER PIVOT BLOCK

1шт.

43

8H33-13378

RIVET

2шт.

44

8H33-13316

LOWER LINK

1шт.

45

1086-6

NUT (3/8" NC - lock)

2шт.

46

1611-0620

BOLT (3/8" x 2" NC)

1шт.

47

1611-0624

BOLT (3/8" x 2-1/2" NC)

1шт.

48

8H28-80914W

BLADE ADAPTER

1шт.

49

8H33-13375

UPER PIVOT BLOCK

1шт.

50

8H33-13380

RIVET

2шт.

51

8H33-13315

UPPER LINK

2шт.

52

8H33-A-15

DROP CHUTE ASSEMBLY (1-1/2" x 24") (Order under equipment) (Also contains items 36 through 52)

1шт.

53

8H33-81144W

DROP CHUTE

1шт.

54

8H33-81143W

DROP CHUTE GATE

1шт.

55

8H33-A-17

DROP CHUTE ASSEMBLY (1-3/4" x 18") (Order under equipment)

1шт.

56

8H33-81141W

DROP CHUTE

1шт.

57

8H33-81142W

DROP CHUTE GATE

1шт.

58

8H33-81126W

GATE PIN

1шт.

59

8B6-3229

HAIRPIN

1шт.

60

8H33-13394

RIVET

1шт.

61

8H33-81196W

LOWER ADAPTER

1шт.

62

1086-08

NUT (1/2" NC - lock)

1шт.

63

1611-0824

BOLT (1/2" x 2-1/2" NC)

1шт.

64

8H33-13373

LOWER PIVOT BLOCK

1шт.

65

8H33-13378

RIVET

2шт.

66

8H33-13316

LOWER LINK

1шт.

67

1086-6

NUT (3/8" NC - lock)

2шт.

68

1611-0620

BOLT (3/8" x 2" NC)

1шт.

69

1611-0624

BOLT (3/8" x 2-1/2" NC)

1шт.

70

8H28-80914W

BLADE ADAPTER

1шт.

71

8H33-13376

UPPER PIVOT BLOCK

1шт.

72

8H33-13381

RIVET

2шт.

73

8H33-13315

UPPER LINK

2шт.

74

8H33-A-18

DROP CHUTE ASSEMBLY (1-3/4" x 24") (Order under equipment) (Also contains items 58 through 73)

1шт.

75

8H33-1124W

DROP CHUTE

1шт.

76

8H33-81125W

DROP CHUTE GATE

1шт.

77

8H28-A39

BULLET NOSE BLADE AND CHINESE FINGER ADAPTER (3/4" x 18") (Order under equipment)

1шт.

78

8H28-A43

BULLET NOSE BLADE AND CHINESE FINGER ADAPTER (3/4" x 24") (Order under equipment)

1шт.

79

8H28-81216W

BLADE (3/4" x 18")

1шт.

80

8H28-81314W

BLADE (3/4" x 24")

1шт.

81

8H28-12718

BLADE ADAPTER

2шт.

82

1679-0814

RIVET

2шт.

83

8H28-13331

RIVET

1шт.

84

8H28-81163W

CHINESE FINGER BALL ADAPTER

1шт.
