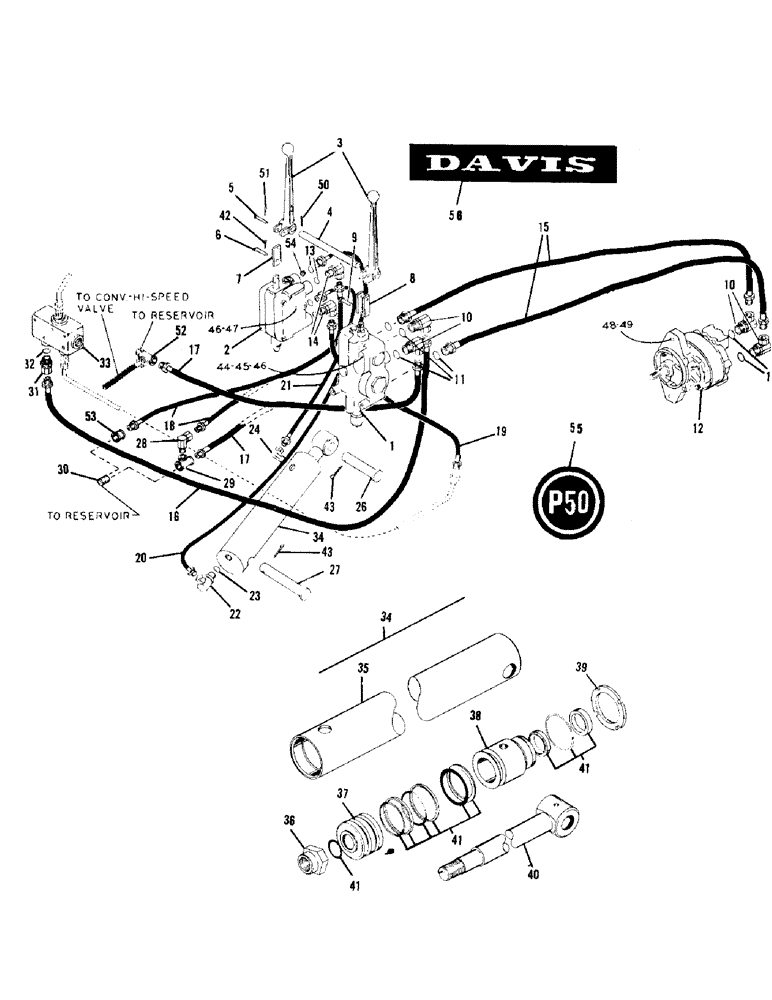

Запчасти Case P-50 (06) - HYDRAULIC LINES, HYDRAULIC CYLINDER

1

8H33-81150W

MOTOR CONTROL VALVE

1шт.

2

8H33-81149W

CYLINDER CONTROL VALVE

1шт.

3

8E11-6894

LEVER, valve control

2шт.

4

8H33-13204

SHAFT, valve lever

1шт.

5

8B6-3297

PIN, Serial Range: lever-links

2шт.

6

8C8-4420

PIN, link to cyl. valve

1шт.

7

8H33-13203

LINK, lever to cyl. valve

1шт.

8

8H33-13202

LINK, lever to motor valve

2шт.

9

8C8-4458

PIN, link to motor valve

1шт.

10

8C8-4552

ADAPTER, in and out ports motor valve and hyd. motor

4шт.

11

1521-12

O RING

6шт.

12

8H33-81006W

HYDRAULIC MOTOR

1шт.

13

1521-8

O RING

4шт.

14

8C8-4555

ADAPTER, in and out ports cylinder valve

2шт.

15

8H33-13347

HOSE (3/4" x 61" - 3/4" M.P. - 1-1/16" O.R.B.)

2шт.

16

8F18-8234

HOSE (3/4" x 68" - 3/4" M.P. - both ends)

1шт.

17

8C8-4573

HOSE (3/4" x 49-1/2" - 3/4" M.P. - both ends)

1шт.

18

8D15-6273

HOSE (1/2" x 54" - 1/2" M.P. - both ends)

1шт.

19

8H33-13346

HOSE (1/2" x 42" - 1/2" M.P. - both ends)

1шт.

20

8D14-6970

HOSE (3/8" x 48" - 3/4" - 16 O.R.B. - 3/8" M.P.)

1шт.

21

8D15-5145

HOSE (3/8" x 35" - 3/4" - 16 O.R.B. - 3/8" M.P.)

1шт.

22

8C8-7105

ADAPTER, hd. end cylinder

1шт.

23

1521-6

O RING

1шт.

24

8C6-4204

ADAPTER, rod end cylinder

1шт.

26

8H30-11496

PIN, rod end cyl. to breakaway lever

1шт.

27

8H30-11498

PIN, hd. end cylinder

1шт.

28

8D11-4968

ADAPTER, return tee to hose (Used before trencher serial no. 3500)

1шт.

29

1640-0664

RETURN TEE (3/4" x 3/4" x 1/2") (Used before trencher serial no. 3500)

1шт.

30

1523-406

NIPPLE (3/4" all thd.)

1шт.

31

8H33-13348

ADAPTER (Hose to flow divider)

1шт.

32

1521-10

O RING

1шт.

33

8H33-81190W

FLOW DIVIDER

1шт.

34

8H33-81115W

HYDRAULIC CYLINDER

1шт.

35

8H33-13569

BARREL ASSEMBLY

1шт.

36

1084-18

NUT, piston retainer

1шт.

37

8H27-12014

PISTON

1шт.

38

8H27-12036

BEARING

1шт.

39

1025-22

BEARING NUT

1шт.

40

8H33-13570

PISTON ROD

1шт.

41

8H30-12223

SEAL REPAIR KIT

1шт.

42

1624-0406

COTTER PIN (1/8" x 3/4")

2шт.

43

1624-1222

COTTER PIN (1/4" x 2")

2шт.

44

1611-0634

BOLT (3/8" x 3-1/2" NC)

3шт.

45

1602-06

NUT (3/8" NC)

3шт.

46

1604-06

LOCKWASHER (3/8")

5шт.

47

1611-0606

BOLT (3/8" x 3/4" NC)

2шт.

48

1611-0816

BOLT (1/2" x 1-3/4" NC)

2шт.

49

1604-08

LOCKWASHER (1/2")

2шт.

50

1624-0410

COTTER PIN (1/8" x 1")

2шт.

51

1624-0204

COTTER PIN ( 1/16" x 1-1/2")

2шт.

52

1640-0666

RETURN TEE (Used after trencher serial no. 3500)

1шт.

53

1638-0406

REDUCER (3/4" to 1/2") (Used after trencher serial no. 3500)

1шт.

54

1097-325

ORIFICE PLATE

1шт.

55

8433-13901

DECAL (P50)

2шт.

56

8D5-5211

DECAL (Davis)

2шт.
