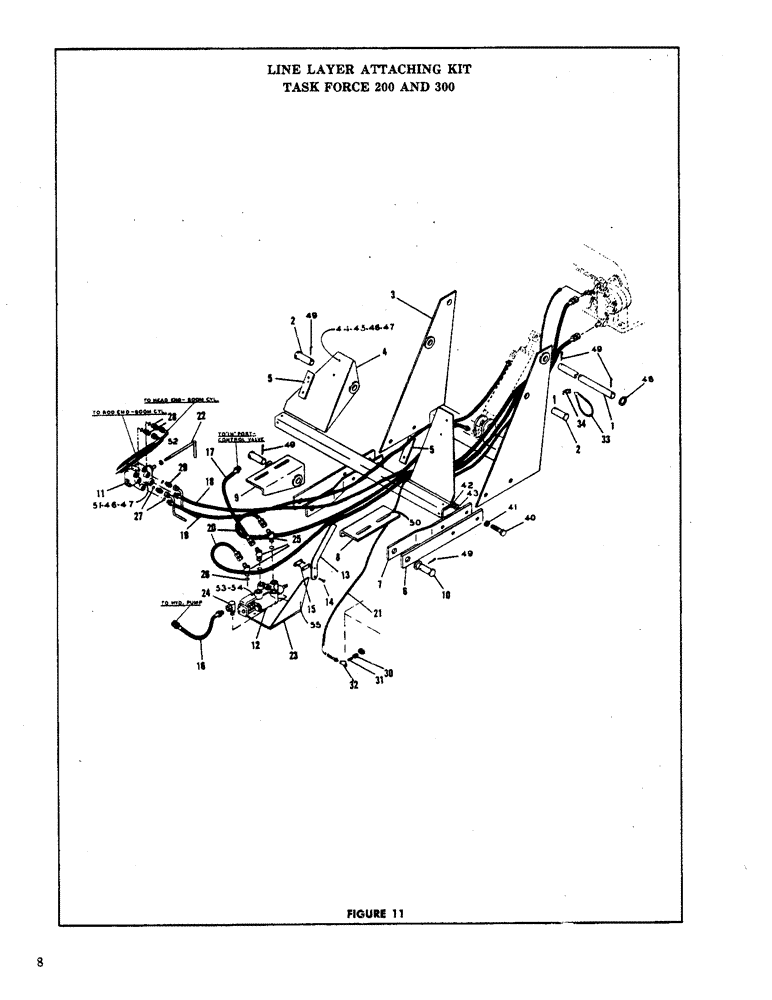

Запчасти Case P-40 (08) - LINE LAYER ATTACHING KIT TASK FORCE 200 AND 300

1

175000

Hinge Pin

1шт.

2

37978

SCREW

Pin (1" x 2 1/2")

2шт.

3

530311

Attaching Frame

1шт.

4

532549

Top Attaching Bracket

1шт.

5

112425

Doubler Plate

2шт.

6

113530

Attaching Bar - Outsdie

2шт.

7

113522

Attaching Bar - Inside

2шт.

8

530352

Lower Bracket - Left

1шт.

9

530360

Lower Bracket - Right

1шт.

10

65003

EXTENSION

Pin (1" x 2")

2шт.

11

510958

ADAPTER

Selector Valve (See Figure 12)

1шт.

12

533240

Control Valve (See Figure 12)

1шт.

13

119305

Lever, Valve

1шт.

14

32579

Pin (3/16" x 31/32")

1шт.

15

748293

CASING

Connector Link

1шт.

16

55152

Hose (1/2" x 16" - 1/2" M.P. & 7/8"-14 FMS)

1шт.

17

71183

Hose (1/2" X 28" - 7/8" - 14FMS) TF-200 only

1шт.

17

109470

Hose (1/2" x 34" - 7/8" - 14FMS) TF-300 only

1шт.

18

112466

Hose (1/4" x 41" - 3/8" MP - 9/16"-18FMS

1шт.

19

113696

Hose (1/4" x 50" - 3/8" MP - 9/16" -18FMS

1шт.

20

113688

Hose (1/2" x 90" - 7/8"-14FMS - both ends)

2шт.

21

113670

Hose (3/16" x 80" - 1/8 MP - both ends)

1шт.

22

112185

Handle, Selector Valve

1шт.

23

532994

Valve Mounting Bracket

1шт.

24

59378

ANGLE

Adapter, 90 degree

1шт.

25

50997

NUT

Adapter, 45 degree

3шт.

26

745174

O Ring

4шт.

27

745158

O Ring

6шт.

28

114215

SPARE PARTS CAT

Adapter, Straight

2шт.

29

114223

Adapter, Straight

2шт.

30

749812

Bushing (1/8" to 1/4" - Pipe)

1шт.

31

748905

Nipple (1/4" all thd.)

1шт.

32

749952

Tee (1/4" Pipe)

1шт.

33

52548

SPECIAL WASHER

Spring, Hose Retainer

2шт.

34

52555

CHAIN

Clip, Spring Hanger

1шт.

40

711390

Bolt (5/8" x 2" NC)

4шт.

41

738500

Flat Washer (5/8" SAE)

4шт.

42

735837

Nut (5/8" NC)

4шт.

43

739250

LITERAT SERV MISC.DE

Lockwasher (5/8")

4шт.

44

709881

DRIVE PINION

Bolt (3/8" x 1 3/4" NC)

8шт.

45

738468

O-RING

Flat Washer (3/8" SAE)

8шт.

46

739219

Lockwasher (3/8")

10шт.

47

735795

Nut (3/8" NC)

10шт.

48

738542

Flat Washer (1 1/8" SAE)

2шт.

49

740548

BUSHING

Cotter Pin (1/4" x 1 3/4")

6шт.

50

728501

GASKET

Bolt (1/2" x 2"NC - CARR.)

4шт.

51

709915

SPARE PART

Bolt (3/8" x 2 1/2" NC)

2шт.

52

736637

Nut (5/16" NC - Jam)

1шт.

53

700591

Bolt (5/16" x 2 1/2" NC)

2шт.

54

739201

SVC LITERATURE MISC

Lockwasher (5/16")

2шт.

55

709451

Bolt (5/16" x 1" NC)

2шт.
