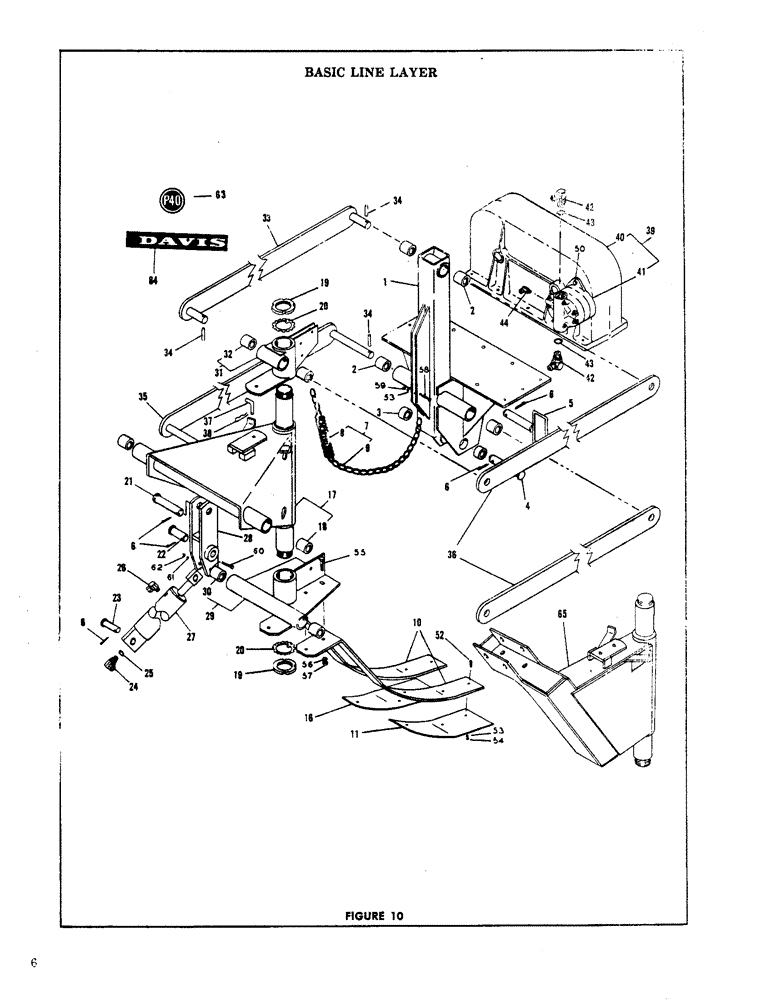

Запчасти Case P-40 (06) - BASIC LINE LAYER

1

529982

ADAPTER

Gear Box Mtg. Bracket, Includes: Ref. 2 and 3

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

2

56192

Bushing

4шт.

3

50435

CASTING

Bushing

4шт.

4

71597

Pin, Blade Mounting

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

5

531830

Loop Pin

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

6

740548

BUSHING

Cotter Pin (1/4" x 1 3/4")

7шт.

Indicates parts used on both front and rear mounted units.

1шт.

7

533265

Spring and chain assembly, Includes: Ref. 8 and 9

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

8

119982

Spring

1шт.

9

139717

Chain

1шт.

10

116020

Shoe Spring

2шт.

Indicates parts used on both front and rear mounted units.

1шт.

11

116012

Shoe - Right

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

16

116004

Shoe - Left

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

17

530014

SHAFT

Trunnion Frame Assembly, Includes: Ref. 18

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

18

56192

Bushing

2шт.

19

748715

Bearing Nut

2шт.

Indicates parts used on both front and rear mounted units.

1шт.

20

748756

Lockwasher

2шт.

Indicates parts used on both front and rear mounted units.

1шт.

21

65011

Pin, Upper Breakaway

1шт.

Indicates parts used on rear mounted units only.

1шт.

22

67264

Pin, Cyl. Rod End

1шт.

Indicates parts used on rear mounted units only.

1шт.

23

71621

Pin, Cyl. Hd End

1шт.

Indicates parts used on rear mounted units only.

1шт.

24

32714

GEARBOX

Adapter, 90

1шт.

Indicates parts used on rear mounted units only.

1шт.

25

745158

O Ring

1шт.

Indicates parts used on rear mounted units only.

1шт.

26

42044

SPINDLE

Adapter, 90 degree

1шт.

Indicates parts used on rear mounted units only.

1шт.

27

504076

Hydraulic Cylinder Assembly

1шт.

Indicates parts used on rear mounted units only.

1шт.

28

532705

Breakaway Lever

1шт.

Indicates parts used on rear mounted units only.

1шт.

29

530055

Lower Pivot Assembly, Includes: Ref. 30

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

30

56192

Bushing

2шт.

31

530022

Upper Pivot Assembly, Includes: Ref. 32

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

32

56192

Bushing

2шт.

33

530063

AIR FILTER

Upper Link

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

34

742825

Roll Pin (3/8" x 2")

4шт.

Indicates parts used on both front and rear mounted units.

1шт.

35

530071

TRACK ROD END

Lower Link

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

36

112813

Link Bar

2шт.

Indicates parts used on both front and rear mounted units.

1шт.

37

50906

WASHER

Pin, Swing Lock

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

38

32292

BEARING ASSY

Hairpin

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

39

530196

Gear Case and Motor Assembly - TF 200, 300, & 500, Includes: Ref. 40 and 41

1шт.

39

535575

Gear Case & Motor Assembly - TF 700 only, Includes: Ref. 40 and 41

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

40

530204

Gear Case Assembly

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

41

525527

Hydraulic Motor Assembly - TF 200, 300, & 500

1шт.

41

529305

LEVER

Hydraulic Motor Assembly - TF 700 only

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

42

31674

Adapter, 90 degree

2шт.

Indicates parts used on both front and rear mounted units.

1шт.

43

745174

O Ring

2шт.

44

71662

Adapter, 90 degree

1шт.

Indicates parts used on both front and rear mounted units.

1шт.

50

122713

Bolt (7/16" x 1 1/2" NC)(Special)

2шт.

52

734400

Bolt (3/8" x 1 1/2" NF Allen Hd.)

6шт.

53

739227

LITERAT SERV MISC.IT

Lockwasher (3/8")

8шт.

54

736785

Nut (3/8" NF - Jam)

6шт.

55

711374

DRIVER SEAT

Bolt (5/8" x 1 1/2" NC)

4шт.

56

739250

LITERAT SERV MISC.DE

Lockwasher (5/8")

4шт.

57

735837

Nut (5/8" NC)

4шт.

58

709873

Bolt (3/8" x 1 1/2" NC)

2шт.

59

735795

Nut (3/8" NC)

2шт.

60

709907

Bolt (7/16" x 2 1/4" NC)

1шт.

61

739227

LITERAT SERV MISC.IT

Lockwasher (7/16")

1шт.

62

735803

Nut (7/16" NC)

1шт.

63

139006

BASKET ASSY

Decal (P40)

2шт.

Indicates parts used on both front and rear mounted units.

1шт.

64

52118

RING

Decal (Davis)

2шт.

Indicates parts used on rear mounted units only.

1шт.

65

535336

Boom Adapter

1шт.

Indicates parts used on front mounted units only.

1шт.
