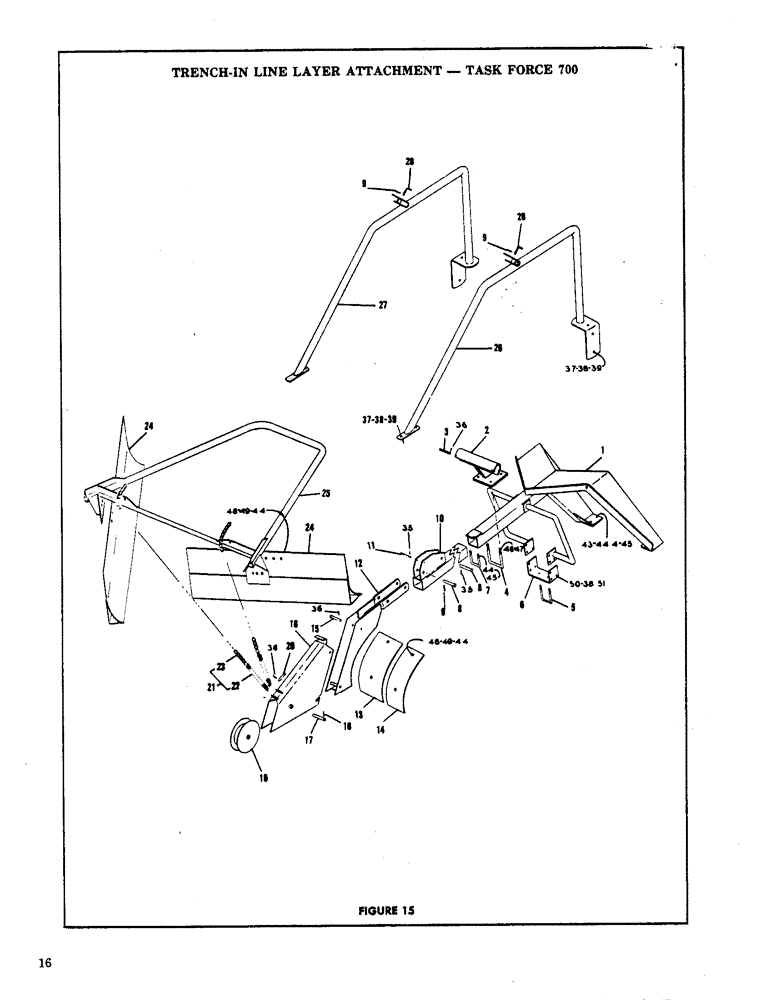

Запчасти Case P-40 (16) - TRENCH - IN LINE LAYER ATTACHMENT - TASK FORCE 700

1

535179

Upper Boom

1шт.

2

535096

Mtg. Base, Drag Trunnion

1шт.

3

126102

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Pin (1/8" x 2 7/8")

2шт.

4

119958

U bolt (5/8" NC)

2шт.

5

117614

SPARE PART

U Bolt (1/2" NC)

1шт.

6

117887

SHAFT

Support Channel

1шт.

7

54312

BATTERY

U Bolt (1/2" NF)

1шт.

8

32730

Pin (3/4" x 3 3/4")

2шт.

9

32292

BEARING ASSY

Hairpin

3шт.

10

533216

Lower Boom

1шт.

11

119990

BRAKE SHOE

Pin, Clevis

1шт.

12

533166

Crumber Shoe

1шт.

13

119974

Crumber Blade - 7"

1шт.

14

119966

Crumber Blade - 5"

1шт.

15

31161

Pin (5/8" x 3 1/2")

1шт.

16

533158

Reel Mtg. Assembly

1шт.

17

NLS

NO LONGER SERVICED

Shaft Reel Mtg.

1шт.

18

742379

Roll Pin (1/4" x 1 1/4")

1шт.

19

535344

Guide Reel

1шт.

20

120220

Pin (1/2" x 3 1/2")

1шт.

21

533257

Drag Spring & Chain Assy., Includes: Ref. 22 and 23

2шт.

22

54338

Drag Spring

1шт.

23

120238

JAM NUT,Jam, 1/2"-13, G5

Drag Chain

1шт.

24

533232

Drag Blade

2шт.

25

533224

Drag Frame

1шт.

26

530188

Spool Stand - Left

1шт.

27

531640

Spool Stand - Right

1шт.

28

112862

Retainer Pin

2шт.

35

740522

WASHER

Cotter Pin (1/4" x 1 1/2")

2шт.

36

739920

SVC LITERATURE MISC

Cotter Pin (1/8" x 3/4")

4шт.

37

709857

Bolt (3/8" x 1" NC)

10шт.

38

739219

Lockwasher (1/2")

14шт.

39

735795

Nut (3/8" NC)

10шт.

43

710632

Bolt (1/2" x 1 1/4" NC)

4шт.

44

739235

LITERAT SERV MISC.FR

Lockwasher (1/2")

12шт.

45

735811

Nut (1/2" NC)

6шт.

46

735837

Nut (5/8" NC)

4шт.

47

739250

LITERAT SERV MISC.DE

Lockwasher (5/8")

4шт.

48

728485

Bolt (1/2" x 1 1/2" NC - Carr.)

6шт.

49

735811

Nut (1/2" NC)

6шт.

50

705400

ARM

Bolt (3/8" x 1 1/4" NC)

6шт.

51

735795

Nut (3/8" NC)

6шт.
