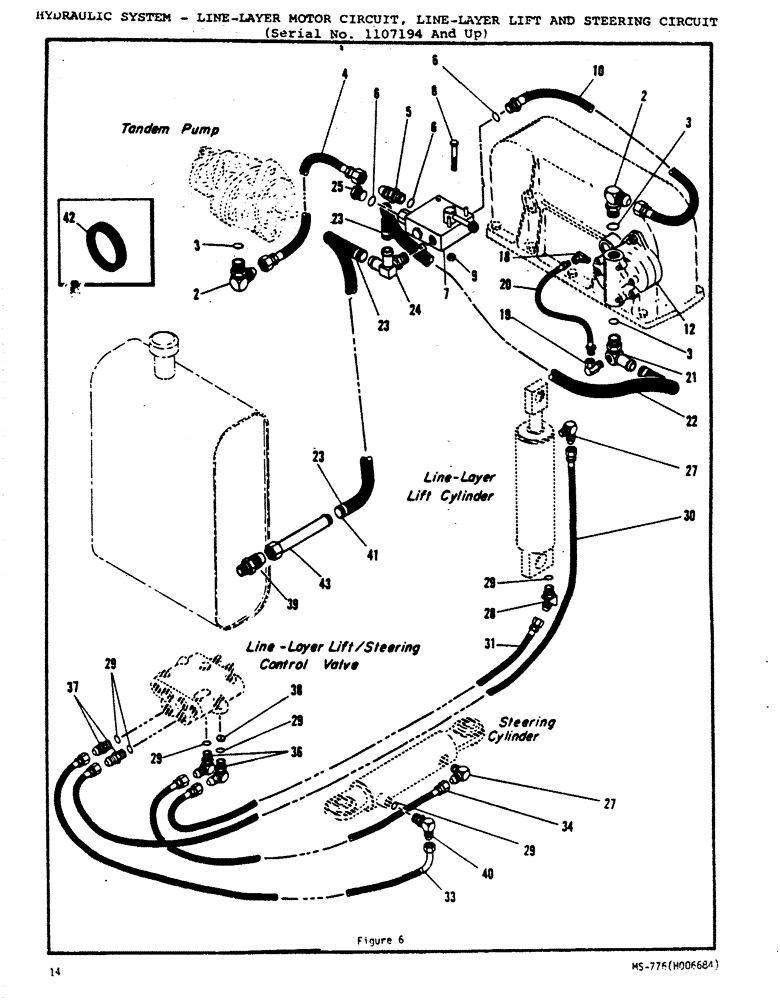

Запчасти Case N63 (14) - HYD SYS, LINE-LAYER MOTOR CIRCUIT, LINE-LAYER LIFT & STEERING CIRCUIT (SERIAL NO. 1107194 & UP)

2

H31674

ADAPTER

Elbow - 90 degrees (7/8 ORB x 7/8 JIC M)

2шт.

3

H745174

O-RING

O Ring

3шт.

4

H317339

HOSE ASSY.

Hose (1/8 x 86 - 7/8 JIC Fe Sw Ends)

1шт.

5

H191742

ADAPTER

Connector (3/4 ORB x 7/8 JIC M)

1шт.

7

H582064

VALVE

Line-Layer Control Valve Asm (See Figure 34)

1шт.

8

H709519

BOLT

HHCS (5/16 x 2 1/2 NC)

2шт.

9

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC - Hex - Lock)

2шт.

10

H203075

Hose (1/2 x 22 - 3/4 ORB x 7/8 JIC Fe Sw)

1шт.

12

H545509

MOTOR

Plow Motor & Gear Asm (See Figure 28)

1шт.

18

H71662

FITTING

Elbow - 90 degrees (1/8 Pipe x 1/8 NPSM)

1шт.

19

H82818

TUBE NUT

Elbow - 90 degrees (1/4 Pipe x 1/4 NPSM)

1шт.

20

H246462

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm

6.35 mm ID x 304.80 mm

1шт.

21

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

Elbow - Special (Replaces H317438)

1шт.

22

H212951

HOSE

(3/4 x 22)

1шт.

23

H78329

HOSE CLAMP

4шт.

24

H307751

TEE

(3/4 ORB x 3/4 Hose Barb)

1шт.

25

H217299

PLUG

1шт.

27

H165076

ELBOW

- 90 degrees (3/8 MP x 9/16 JIC M)

2шт.

28

H169094

ELBOW

- 45 degrees (9/16 ORB x 9/16 JIC M)

1шт.

29

H745158

O-RING

O Ring

6шт.

30

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

31

H253666

HOSE ASSY.

Hose (1/4 x 84 - 9/16 JIC Fe Sw Ends)

1шт.

33

H249029

HOSE ASSY.

Hose & Tube (1/4 x 29 - 9/16 JIC Fe Sw)

1шт.

34

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

6.35 mm ID x 685.40 mm, SAE 100R1

1шт.

36

H165068

ADAPTER

Elbow - 90 degrees (9/16 ORB x 9/16 JIC M)

2шт.

37

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

38

H746875

SCREW

Orifice Plate - .043 Dia ("C" Port Of Valve)

1шт.

39

H169995

TUBE NUT

Connector (3/4 MP x 1 1/16 JIC M)

1шт.

40

H165068

ADAPTER

Elbow - 90 degrees (9/16 ORB x 9/16 JIC M)

1шт.

41

H317305

HOSE

(3/4 x 72)

1шт.

42

D52812

RUBBER STRIP

Grommet (Replaces F54321)

2шт.

43

H624452

TUBE,0.75" OD x 6" L

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O Ring

4шт.
