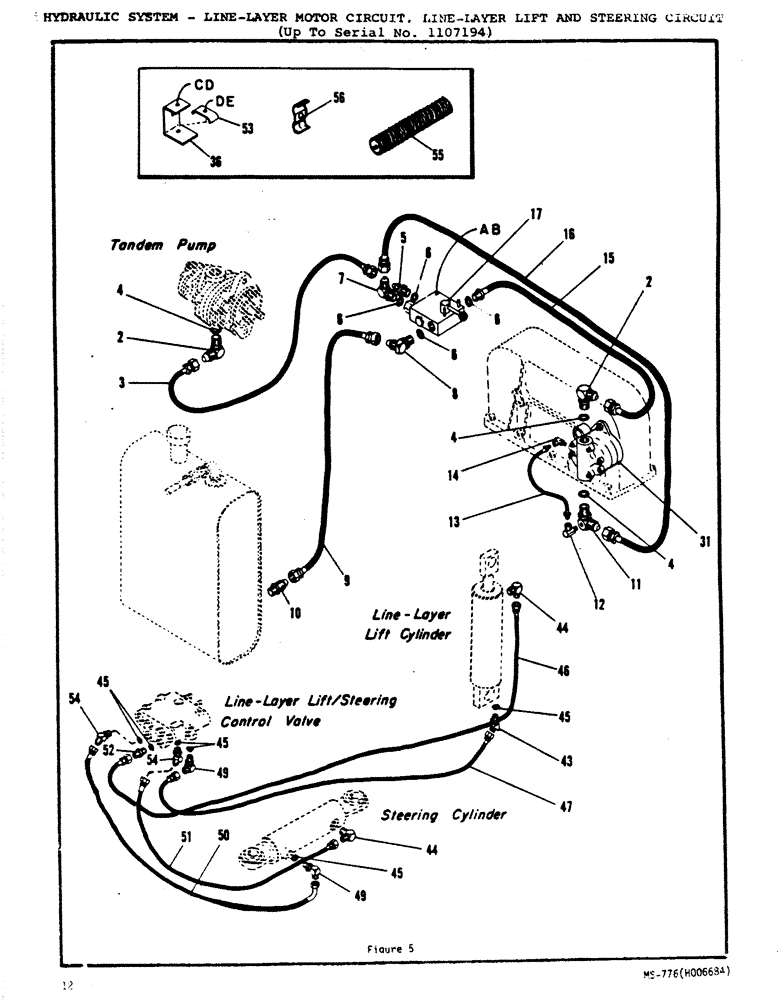

Запчасти Case N63 (12) - HYD SYS, LINE-LAYER MOTOR CIRCUIT, LINE-LAYER LIFT & STEERING CIRCUIT (UP TO S/N 1107194)

2

H31674

ADAPTER

- 90 degrees

2шт.

3

H249037

HOSE

( 1/2" x 109" - 7/8 JIC Sw Ends)

1шт.

4

H745174

O-RING

O Ring

3шт.

5

H191742

ADAPTER

- Straight

1шт.

7

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Adapter - 90 degrees

1шт.

8

H234625

ELBOW

Adapter - 45 degrees

1шт.

9

H246066

HOSE ASSY.

Hose (1/2" x 88" -7/8 JIC Fe Sw - Both Ends)

1шт.

10

H30742

ADAPTER

- Straight, Serial Range: -3101

1шт.

10

H168831

ADAPTER

- Straight, Start Serial: 3101

1шт.

11

H211557

ADAPTER

- 90 degrees Special

1шт.

12

H82818

TUBE NUT

Adapter - 90 degrees

1шт.

13

H246462

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm

6.35 mm ID x 304.80 mm

1шт.

14

H71662

FITTING

Adapter - 90 degrees

1шт.

15

H203075

Hose (1/2" x 22" - 7/8" JIC Fe Sw - 3/4 ORB)

1шт.

16

H211284

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

12.70 mm ID x 939.80 mm, SAE 100R1

1шт.

17

H582064

VALVE

Line-Layer Control Valve (See Figure 34)

1шт.

31

H545509

MOTOR

& Gear Asm (See Figure 28)

1шт.

36

H248260

Clamp Bracket

1шт.

43

H169094

ELBOW

Adapter - 45 degrees

1шт.

44

H165076

ELBOW

Adapter - 90 degrees

2шт.

45

H745158

O-RING

O Ring

6шт.

46

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

47

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

6.35 mm ID x 1574.80 mm, SAE 100R1

1шт.

49

H165068

ADAPTER

- 90 degrees

2шт.

50

H249029

HOSE ASSY.

Hose (1/4" x 29" - 9/16" JIC Fe Sw - Bent Tube)

1шт.

51

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

6.35 mm ID x 685.40 mm, SAE 100R1

1шт.

52

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

53

H45468

CLAMP

- Set

1шт.

54

H169094

ELBOW

Adapter - 45 degrees

2шт.

55

H252700

Boot - Hose, Serial Range: -3101

1шт.

56

H252221

Clamp

2шт.

a

H709519

BOLT

HHCS (5/16" x 2 1/2" NC)

2шт.

b

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC)

2шт.

c

H709857

BOLT

HHCS (3/8" x 1" NC)

1шт.

d

H738013

LOCK NUT

Nut (3/8" NC - Lock

2шт.

e

H709873

BOLT

HHCS (3/8" x 1 1/2" NC)

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O Ring

4шт.
