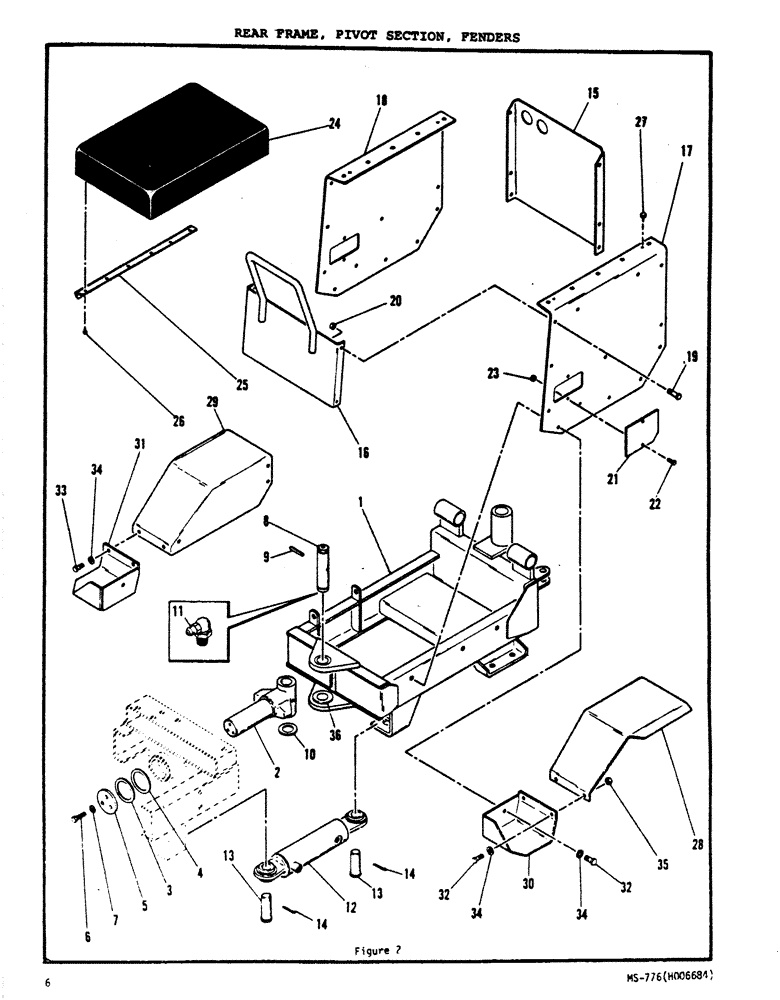

Запчасти Case N63 (06) - REAR FRAME, PIVOT SECTION, FENDERS

1

H579656

Frame Asm - Rear

1шт.

2

H257667

SHAFT

Pivot Shaft, spec. no. N630N02 and up

1шт.

2

H179697

SHAFT

Pivot Shaft, up to spec. no. N630N02

1шт.

3

H191155

SHIM,.062" Thk

Pivot .062" Thk

1шт.

4

H191148

SHIM,.031" Thk

Pivot .031" Thk

1шт.

5

H182543

CYLINDER END CAP

Cap

1шт.

6

H709857

BOLT

HHCS (3/8 x 1 - NC)

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

H182535

PIVOT

Pin

1шт.

9

H742841

PIN

Roll Pin (3/8 x 2 1/4)

1шт.

10

H257915

SHIM,0.813mm Thk

(.031"), Pivot pin 0.813mm Thk

1шт.

11

H745273

FITTING

Grease Fitting - 90 degrees

2шт.

12

H580597

Cylinder Asm - Steering (See Figure 36)

1шт.

13

H67272

PIN,25.3mm OD x 84.93mm L

Pin - Clevis (1 x 3)

2шт.

14

H740548

PIN

- Cotter (1/4 x 1 3/4)

2шт.

15

H582239

Back Panel

1шт.

16

H582221

Front Panel

1шт.

17

H242149

Side Panel - L/H

1шт.

18

H242156

Side Panel - R/H

1шт.

19

H709857

BOLT

HHCS (3/8 x 1 NC)

10шт.

20

H738013

LOCK NUT

Nut (3/8 NC - Lock)

6шт.

21

H265140

Cover Plate

2шт.

22

H709436

BOLT

HHCS (5/16 x 3/4 NC)

4шт.

23

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC Lock)

4шт.

24

H501288

SEAT

Cushion

1шт.

25

H245837

HINGE

1шт.

26

187-484

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

Screw - Self Tapping (#10 x 1/2)

6шт.

27

H66522

BUMPER

2шт.

28

H580225

Fender - Rear L/H

1шт.

29

H580233

Fender - Rear R/H

1шт.

30

H582429

Foot Step - L/H

1шт.

31

H582411

STEP

Foot Step - R/H

1шт.

32

H709865

BOLT

HHCS (3/8 x 1 1/4 NC)

2шт.

33

H709857

BOLT

HHCS (3/8 x 1 NC)

4шт.

34

H738468

WASHER

- Flat (3/8)

6шт.

35

H738013

LOCK NUT

Nut (3/8 NC - Lock)

4шт.

36

H179077

BUSHING

(Part of Rear Frame Asm)

2шт.
