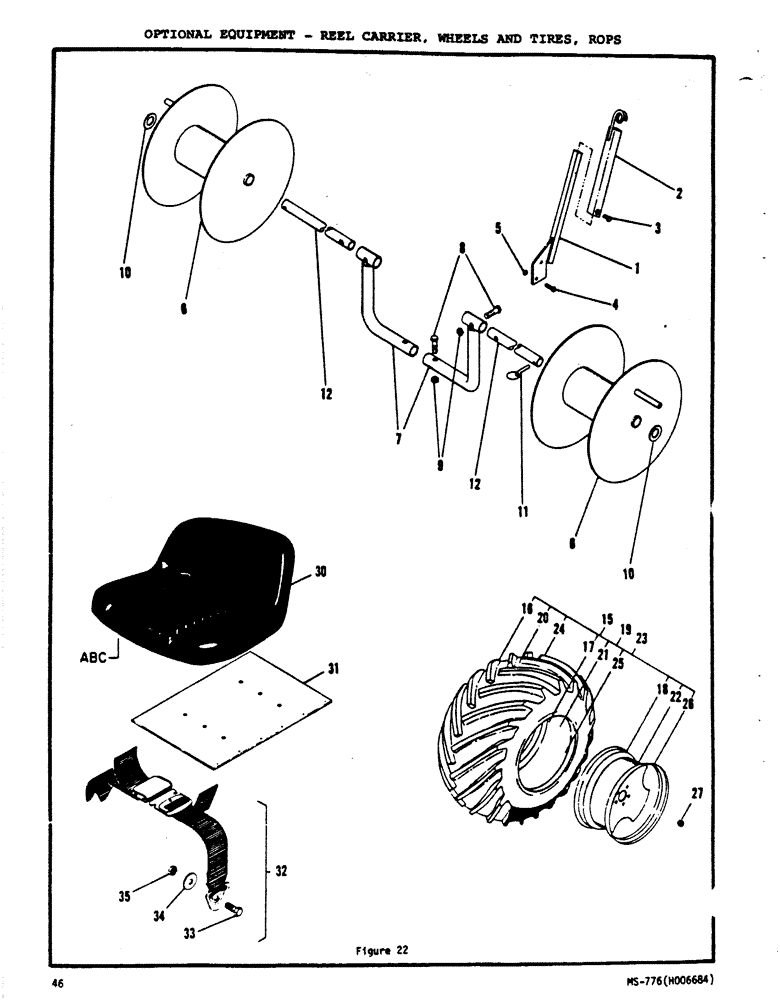

Запчасти Case N63 (46) - OPTIONAL EQUIPMENT - REEL CARRIER, WHEELS AND TIRES, ROPS

1

H564195

Wire Guide Arm

1шт.

2

H583583

TUBE,15.5" L

& Wire Guide

1шт.

3

H709832

BOLT

HHCS (3/8" x 3/4" NC)

1шт.

4

H709865

BOLT

HHCS (3/8" x 1 1/4" NC)

2шт.

5

H738013

LOCK NUT

Nut (3/8" NC - Lock)

2шт.

6

H584268

Reel Asm

2шт.

7

H583674

Reel Bracket

2шт.

8

H710673

BOLT

HHCS (1/2" x 2 1/4" NC)

4шт.

9

H738039

LOCK NUT

Nut (1/2" NC - Lock)

4шт.

10

H249532

Washer

2шт.

11

H32367

PIN

Klik Pin

2шт.

12

H249524

PIPE

- Reel Carrier

2шт.

15

H555581

TYRE/TIRE

Tire & Wheel Asm - Traction

4шт.

16

H164616

TYRE/TIRE

Tire - 23 x 8.50 x 12 All Traction Field & Road - 4 Ply

1шт.

17

H170621

Tube - 8.50 x 12

1шт.

18

H554972

WHEEL

- 12 x 7

1шт.

19

H555599

TYRE/TIRE

Tire & Wheel Asm - Transport

4шт.

20

H169839

TYRE/TIRE

Tire - 23 x 8.50 x 12 Traction Turf & Garden - 4 Ply

1шт.

21

H170621

Tube - 8.50 x 12

1шт.

22

H554972

WHEEL

- 12 x 7

1шт.

23

H575597

Tire & Wheel Asm - Extra Traction

4шт.

24

H231944

TYRE/TIRE

Tire - 23 x 10.50 x 12 Super Terra Grip - 4 Ply

1шт.

25

H231951

Tube - 23 x 10.50 x 12 Heavy Duty

1шт.

26

H575571

RIM

Wheel

1шт.

27

H98467

LUG

Wheel Nut

1шт.

30

H274225

SEAT

1шт.

31

H273623

PLATE

- Seat Mounting

1шт.

32

H594564

SAFETY BELT ,3.00" W

3.00" W

1шт.

33

H714717

X

HHCS (7/16" x 1 1/4" NF)

2шт.

34

H277566

WASHER

(7/16")

2шт.

35

H738161

X

Nut (7/16" NF - Lock)

2шт.

a

H709436

BOLT

HHCS (5/16" x 3/4" NC)

4шт.

b

H738450

WASHER

- Flat (5/16")

4шт.

c

92-5

LOCK WASHER,5/16"

4шт.
