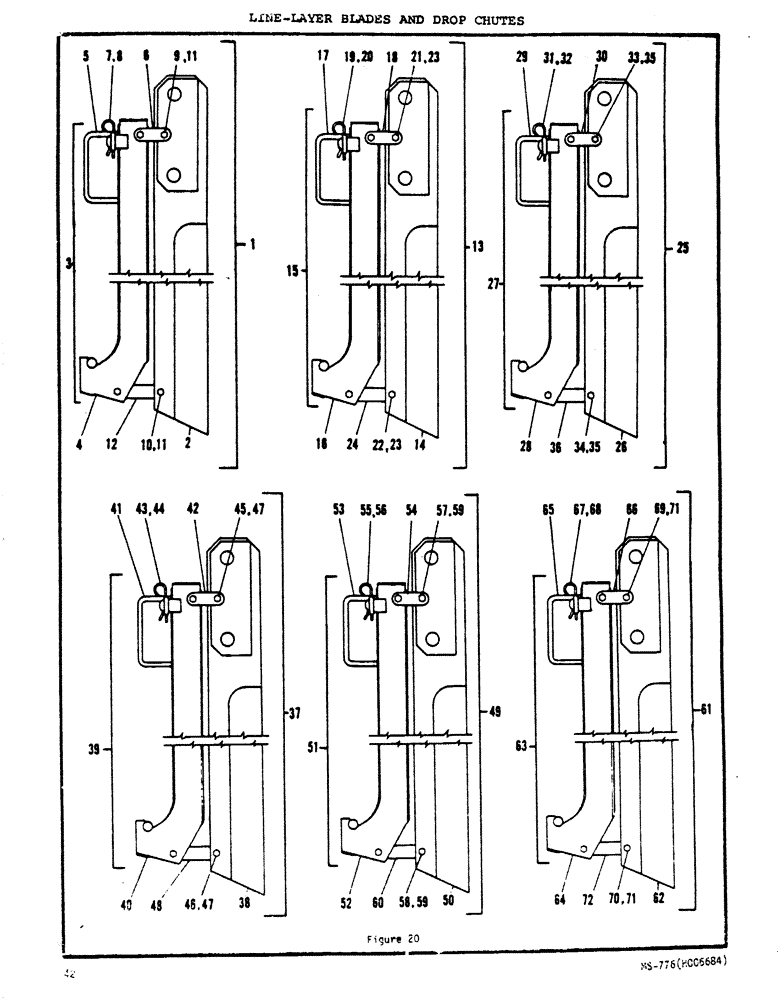

Запчасти Case N63 (42) - LINE-LAYER BLADES AND DROP CHUTES
№
Артикул
Название
Примечание
Количество
1
H574335
HALF BLADE
Blade & Drop Chute Asm - (12 x 3/4 x 4)
1шт.
2
H574285
BLADE
Asm
1шт.
3
H559310
CHUTE ASSY.
Drop Chute & Gate Asm - (3/4 x 12)
1шт.
4
H537175
CHUTE ASSY.
Drop Chute Asm
1шт.
5
H537233
GUIDE
Gate Asm
1шт.
6
H116756
DRAG LINK
Upper Link
2шт.
7
H532648
PIN
Gate Pin
1шт.
8
A70250
PIN
Hair Pin (Replaces H32292)
1шт.
9
H127340
BOLT
HHCS (3/8 x 2 1/4 NF - Grade 8 Special)
2шт.
10
H127324
BOLT
HHCS (3/8 x 1 1/8" NF - Grade 8 Special)
2шт.
11
H737874
HARDWARE
Nut (3/8 NF Hex)
4шт.
12
H127258
DRAG LINK
Lower Link
1шт.
13
H574350
BLADE
& Drop Chute Asm - 12 x 1 x 4
1шт.
14
H574301
BLADE
Asm
1шт.
15
H559344
CHUTE ASSY.
Drop Chute & Gate Asm - 1 x 12
1шт.
16
H537209
CHUTE ASSY.
Drop Chute Asm
1шт.
17
H537266
GUIDE
Gate Asm
1шт.
18
H116756
DRAG LINK
Upper Link
2шт.
19
H532663
PIN
Gate Pin
1шт.
20
A70250
PIN
Hair Pin (Replaces H32292)
1шт.
21
H127340
BOLT
HHCS (3/8 x 2 1/4 NF - Grade 8 Special)
2шт.
22
H127357
BOLT
HHCS (3/8 x 1 5/16 NF - Grade 8 Special)
2шт.
23
H737874
HARDWARE
Nut (3/8 NF- Hex)
4шт.
24
H127258
DRAG LINK
Lower Link
1шт.
25
H585943
HALF BLADE
Blade & Drop Chute Asm - 14 x 3/4 x 4
1шт.
26
H585950
BLADE
Asm
1шт.
27
H585968
ASSEMBLY
Drop Chute & Gate Asm - 3/4 x 14
1шт.
28
H585984
CHUTE ASSY.
Drop Chute Asm
1шт.
29
H585976
DOOR
Gate Asm
1шт.
30
H116756
DRAG LINK
Upper Link
2шт.
31
H532648
PIN
Gate Pin
1шт.
32
A70250
PIN
Hair Pin (Replaces H32292)
1шт.
33
H127340
BOLT
HHCS (3/8 x 2 1/4 NF - Grade 8 Special)
2шт.
34
H127324
BOLT
HHCS (3/8 x 1 1/8 NF - Grade 8 Special)
2шт.
35
131-1326
JAM NUT,Jam, 3/8"-24
Nut (3/8 NF Hex Lock)
4шт.
36
H127258
DRAG LINK
Lower Link
1шт.
37
H586032
BLADE
& Drop Chute Asm - 14 x 1 x 4
1шт.
38
H586016
BLADE
Asm
1шт.
39
H586024
CHUTE ASSY.
Drop Chute & Gate Asm
1шт.
40
H586008
CHUTE ASSY.
Drop Chute Asm
1шт.
41
H585992
GUIDE
Gate Asm
1шт.
42
H116756
DRAG LINK
Upper Link
1шт.
43
H532663
PIN
Gate Pin
1шт.
44
A70250
PIN
Hair Pin (Replaces H32292)
1шт.
45
H127340
BOLT
HHCS (3/8 x 2 1/4" NF - Grade 8 Special)
2шт.
46
H127357
BOLT
HHCS (3/8 x 1 5/16 NF - Grade 8 Special)
2шт.
47
131-1326
JAM NUT,Jam, 3/8"-24
Nut (3/8 NF Hex - Lock)
4шт.
48
H127258
DRAG LINK
Lower Link
1шт.
49
H574343
HALF BLADE
Blade & Drop Chute Asm - 18 x 3/4 x 4
1шт.
50
H574293
BLADE
Asm
1шт.
51
H559328
ASSEMBLY
Drop Chute & Gate Asm - 3/4 x 18
1шт.
52
H537183
CHUTE ASSY.
Drop Chute Asm
1шт.
53
NLS
NO LONGER SERVICED
Gate Asm
1шт.
54
H116756
DRAG LINK
Upper Link
2шт.
55
H532648
PIN
Gate Pin
1шт.
56
A70250
PIN
Hair Pin (Replaces H32292)
1шт.
57
H127340
BOLT
HHCS (3/8 x 2 1/4 NF - Grade 8 Special)
2шт.
58
H127324
BOLT
HHCS (3/8 x 1 1/8 NF - Grade 8 Special
2шт.
59
H737874
HARDWARE
Nut (3/8 NF Hex - Lock)
4шт.
60
H127258
DRAG LINK
Lower Link
1шт.
61
H574368
SPARE PART
Blade & Drop Chute Asm - 18 x 1 x 4
1шт.
62
H574319
BLADE
Asm
1шт.
63
H559351
CHUTE ASSY.
Drop Chute & Gate Asm - 1 x 18
1шт.
64
H537217
CHUTE ASSY.
Drop Chute Asm
1шт.
65
H537274
GUIDE
Gate Asm
1шт.
66
H116756
DRAG LINK
Upper Link
2шт.
67
H532663
PIN
Gate Pin
1шт.
68
A70250
PIN
Hair Pin (Replaces H32292)
1шт.
69
H127340
BOLT
HHCS (3/8 x 2 1/4 NF - Grade 8 Special)
2шт.
70
H127357
BOLT
HHCS (3/8 x 1 5/16 NF - Grade 8 Special)
2шт.
71
H737874
HARDWARE
Nut (3/8 NF Hex - Lock)
4шт.
72
H127258
DRAG LINK
Lower Link
1шт.
Выбрано товаров: 72
