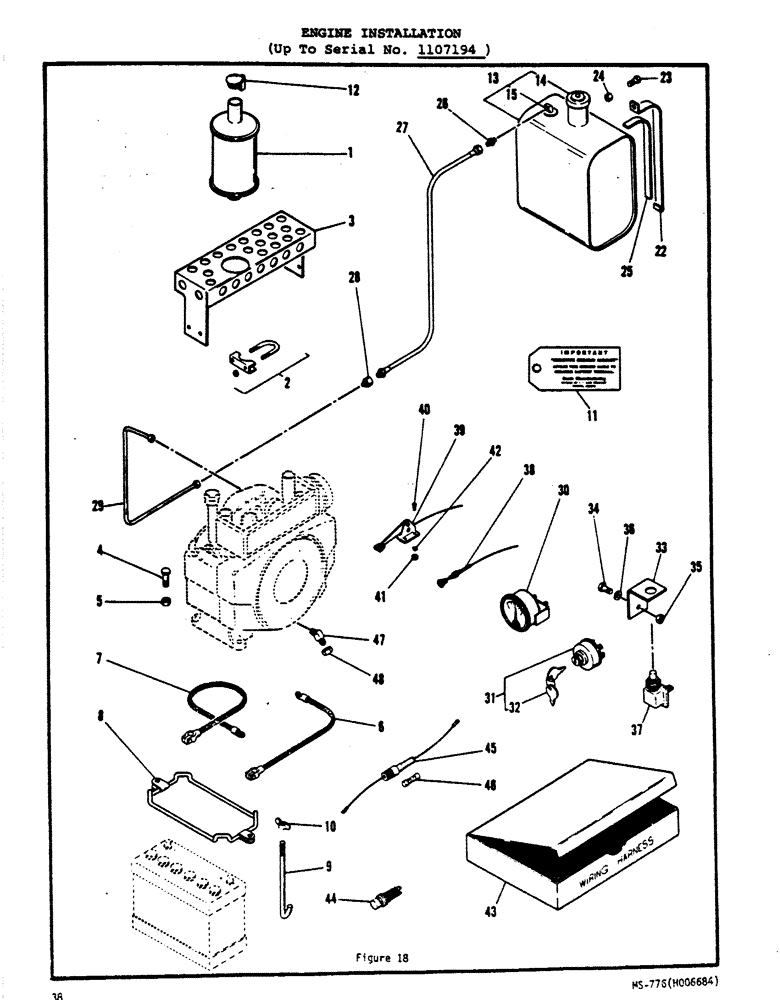

Запчасти Case N63 (38) - ENGINE INSTALLATION, (UP TO SERIAL NO. 1107194)

1

H248039

MUFFLER

(Replaces H602565)

1шт.

2

H250217

Clamp - Muffler

2шт.

3

H583443

Shield - Exhaust

1шт.

4

H710640

X

HHCS (1/2 x 1 1/2 NC)

4шт.

5

H738039

LOCK NUT

Nut (1/2 NC - Lock)

4шт.

6

H243212

NEG BATTERY CABLE

Battery Cable - Positive

1шт.

7

H185306

CABLE PULLING GRIP

Battery Cable - Negative

1шт.

8

H30833

FUNNEL

Battery Bracket

1шт.

9

H30825

BOLT

J-Bolt

2шт.

10

H746834

NUT, WING

Nut - Wing

2шт.

11

H198457

TAG

- Ground Cable

2шт.

12

H224378

CYLINDER END CAP

Rain Cap

1шт.

13

H580555

FUEL TANK

- Steel

1шт.

14

H151274

CYLINDER END CAP

Cap

1шт.

15

H581140

Stand Pipe 0.375" OD x 12.25" L

1шт.

16

H608125

Fuel Tank - Molded

1шт.

17

H288357

CAP

1шт.

18

H581140

Stand Pipe 0.375" OD x 12.25" L

1шт.

19

A65890

STUD,3/8" - 16 x 1/4" NPT

1шт.

20

H313528

NUT

Weld - Nut

1шт.

21

A65892

WASHER

1шт.

22

H311035

Strap - Fuel Tank

4шт.

23

H709436

BOLT

HHCS (5/16 x 3/4 NC)

2шт.

24

230-4215

NUT,5/16"-18, GA

Nut (5/16 NC Lock)

2шт.

25

H295774

Belting (3/4 x 32)

1шт.

25

H295253

Belting (3/4 x 48)

1шт.

25

H295766

Belting (3/4 x 106)

1шт.

26

H130344

FITTING

Connector

1шт.

27

H50302

LINE

Fuel Line

1шт.

28

H216838

COUPLING

Connector

1шт.

29

H580860

Fuel Line

1шт.

30

H72603

AMMETER

AMP Gauge

1шт.

31

H71498

SWITCH

Ignition Switch W/Keys

1шт.

32

A24509

KEY

- ignition start, Set of 2

1шт.

33

H200998

ANGLE

- Start Button

1шт.

34

H709113

X

HHCS (1/4 x 3/4 NC)

2шт.

35

H737999

LOCK NUT

Nut (1/4 NC - Lock)

2шт.

36

H738443

WASHER

- Flat (1/4)

2шт.

37

H201285

SWITCH

- Start

1шт.

38

H501916

CABLE

Choke Control

1шт.

39

H588582

CONTROL BLOCK

Throttle Control

1шт.

Units not equipped with engine - mounted throttle control.

1шт.

40

H750398

RHMS (#10-24 x 3/4)

2шт.

41

H735761

NUT

(#10-24)

2шт.

42

H739185

WASHER

- Lock (#10)

2шт.

43

H584284

HARNESS

Wiring Harness & Diagram

1шт.

44

H603852

LIGHT

- Oil Temperature

1шт.

45

H598292

NOZZLE HOLDER

Fuse Holder

1шт.

46

H233718

SPARE PART

Fuse (30 AMP)

1шт.

47

H167221

ELBOW

- 45 degrees

1шт.

48

H190249

CAP

1шт.

H625954

ADAPTER

, Serial Range: -carb

1шт.
