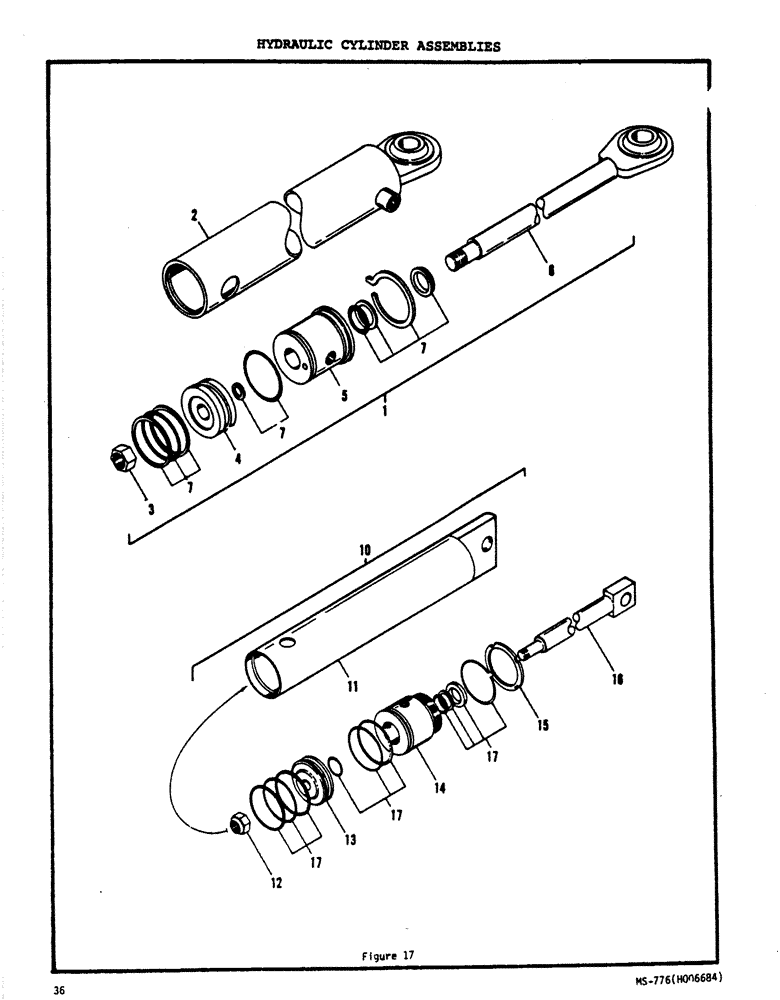

Запчасти Case N63 (36) - HYDRAULIC CYLINDER ASSEMBLIES

1

H580597

Steering Cylinder Asm (Lantex 2125 TM)

1шт.

2

H583138

Barrel

1шт.

3

131-172

LOCK NUT,3/4"-16, GA

Nut - Piston (Replaces H738203)

1шт.

4

H247023

PISTON

1шт.

5

H247031

GLAND

1шт.

6

H583120

ROD

Piston Rod

1шт.

7

H583112

SEAL ASSY.

Seal Repair Kit

1шт.

10

H504076

CYLINDER BLOCK

Line-Layer Lift Cylinder Asm (Cesna 4104ED)

1шт.

11

H72215

SLEEVE CYLINDER

Barrel

1шт.

12

H737643

NUT

- Piston

1шт.

13

H32540

PISTON

1шт.

14

H70078

BEARING

1шт.

15

H745810

NUT

- Bearing

1шт.

16

H66571

ROD

Piston Rod

1шт.

17

H507350

GASKET KIT

Seal Repair Kit

1шт.
