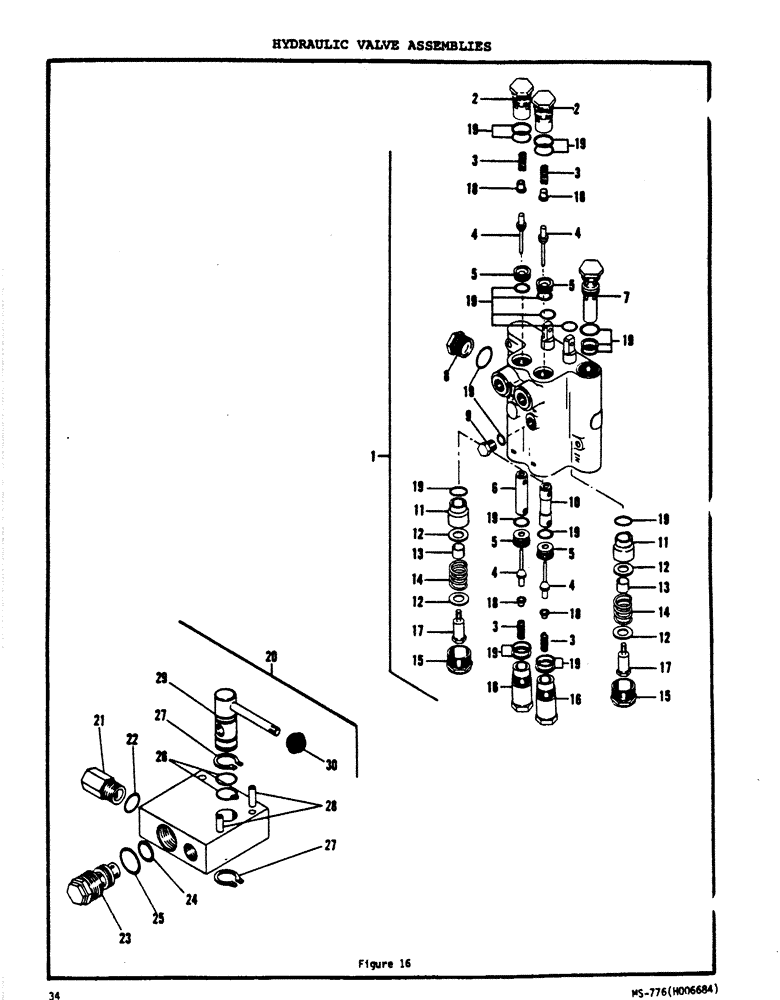

Запчасти Case N63 (34) - HYDRAULIC VALVE ASSEMBLIES

1

H550079

LOCK VALVE

Control Valve Asm

1шт.

2

H172205

PLUG

Asm (Includes O Rings)

2шт.

3

H172585

SPRING

- Lockout

4шт.

4

H266098

SPOOL

Poppet Asm - (Included In Seal Kit)

4шт.

5

H93781

SEAT

Asm (Included O Rings)

4шт.

6

F8229

PLUNGER

- Lockout

1шт.

7

H102053

VALVE

Relief Valve - 2500 PSI (Includes O Rings)

1шт.

8

H94219

PLUG

Asm (Includes O Ring)

1шт.

9

H142141

PLUG

Asm (Includes O Ring)

1шт.

10

H142133

PLUNGER

- Lockout - Float

1шт.

11

H172569

BUSHING

2шт.

12

F8235

WASHER

4шт.

13

H93815

SPACER

- Spool

2шт.

14

H93880

SPRING

- Spool

2шт.

15

H201681

CAP

Asm (Includes O Ring)

2шт.

16

H172601

PLUG

Asm (Includes O Rings)

2шт.

17

H113134

SPOOL

Screw - Spool

2шт.

18

H266684

AXLE PIN

Eyelet - Poppet (Included In Seal Kit)

4шт.

19

H172643

SEAL ASSY.

Major Seal Repair Kit

1шт.

20

H582064

VALVE

Line-Layer Control Valve Asm

1шт.

21

H584557

VALVE

Check Valve Asm

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

O Ring (Replaces H743336)

1шт.

23

H584326

VALVE

Relief Valve Asm (2000 PSI)

1шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O Ring (Replaces H743351)

1шт.

25

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

O Ring (Replaces H744797)

1шт.

26

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

O Ring (Replaces F62114)

2шт.

27

D32101

SNAP RING,#62, Ext

Ring, Snap, (replaces H746479) #62, Ext

2шт.

28

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

29

H249847

HANDLE

1шт.

30

H249839

KNOB

1шт.
