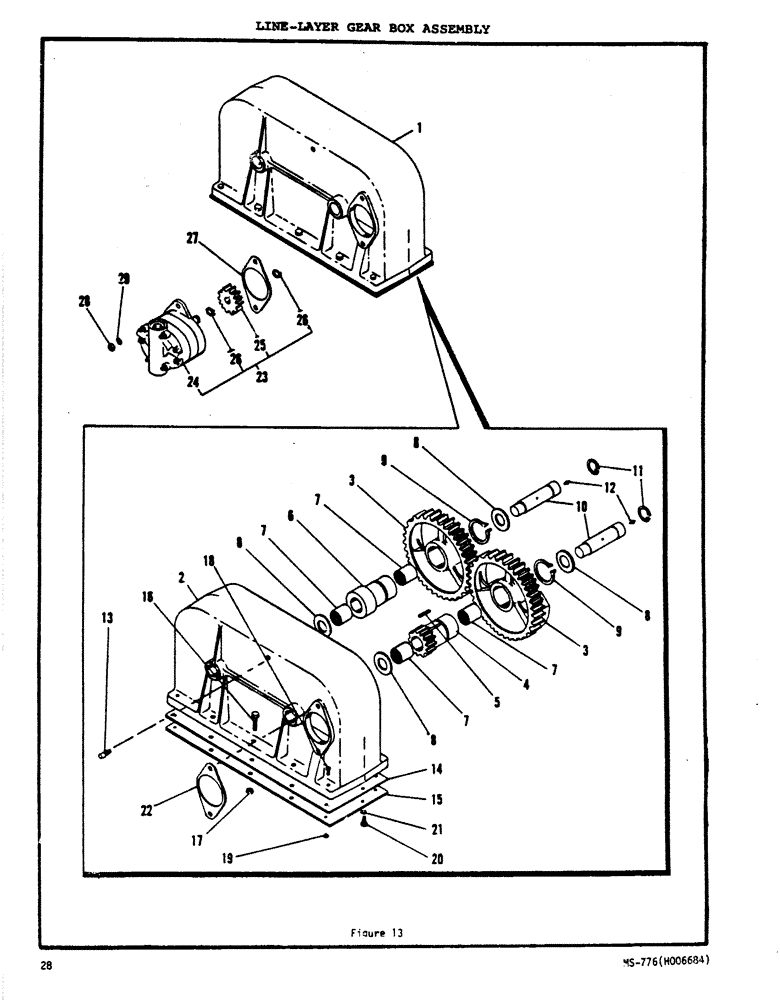

Запчасти Case N63 (28) - LINE-LAYER GEAR BOX ASSEMBLY

1

H530204

GEAR WHEEL

Gear Case Asm

1шт.

2

H113209

CASE

Gear Case

1шт.

3

H113217

GEAR

/Counterweight

2шт.

4

H113225

HUB

- Drive Bearing

1шт.

5

H120550

KEY

- Square (5/16 x 1)

1шт.

6

H113233

HUB

- Bearing

1шт.

On Ref.6 there are 2 spacers P/N H369496.

1шт.

Shim Hub P/N H126201 is .095 not .059

1шт.

Shim Hub P/N H159160 is .059 not .095.

1шт.

7

H748210

NEEDLE BEARING,Needle, 31.75mm ID x 44.45mm OD x 31.75mm W

Bearing

4шт.

8

H113241

BEARING WASHER

Shim - Hub (.0134)

1шт.

8

H126201

WASHER

Shim - Hub (.059)

1шт.

8

H159160

WASHER

Shim - Hub (.095)

1шт.

9

H746636

RING, SNAP

Snap Ring

2шт.

10

H113258

PIN

Retainer Pin

2шт.

11

H746362

RING, SNAP

Snap ring

2шт.

12

H745307

FITTING

Grease Fitting - 45 degrees

2шт.

13

H58826

BREATHER

1шт.

14

H113266

GASKET

Gasket - Cover Plate

1шт.

15

H113274

PLATE

Cover Plate

1шт.

16

H711036

BOLT

HHCS (9/16 x 2 NC)

6шт.

17

H738047

Nut (9/16 NC - Lock)

6шт.

18

H709881

BOLT (SPREADER)

HHCS (3/8 x 1 3/4 NC)

4шт.

19

H738013

LOCK NUT

Nut (3/8 NC - Lock)

4шт.

20

H709857

BOLT

HHCS (3/8 x 1 NC)

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

H32375

GASKET

- Motor

1шт.

23

H545509

MOTOR

& Gear Asm

1шт.

24

H529305

GEAR WHEEL

Line-Layer Motor Asm (See Figure 32)

1шт.

25

H113282

GEAR

1шт.

26

H746487

RING, SNAP

Snap Ring

2шт.

27

H32375

GASKET

- Motor

1шт.

28

H738021

X

Nut (7/16 NC - Lock)

2шт.

29

H738476

WASHER

- Flat (7/16)

2шт.
