Запчасти Case N63 (22) - FRONT AND REAR AXLE ASSEMBLIES, (AXLE SERIAL NO. 603620-1 & 603620-2 AND UP

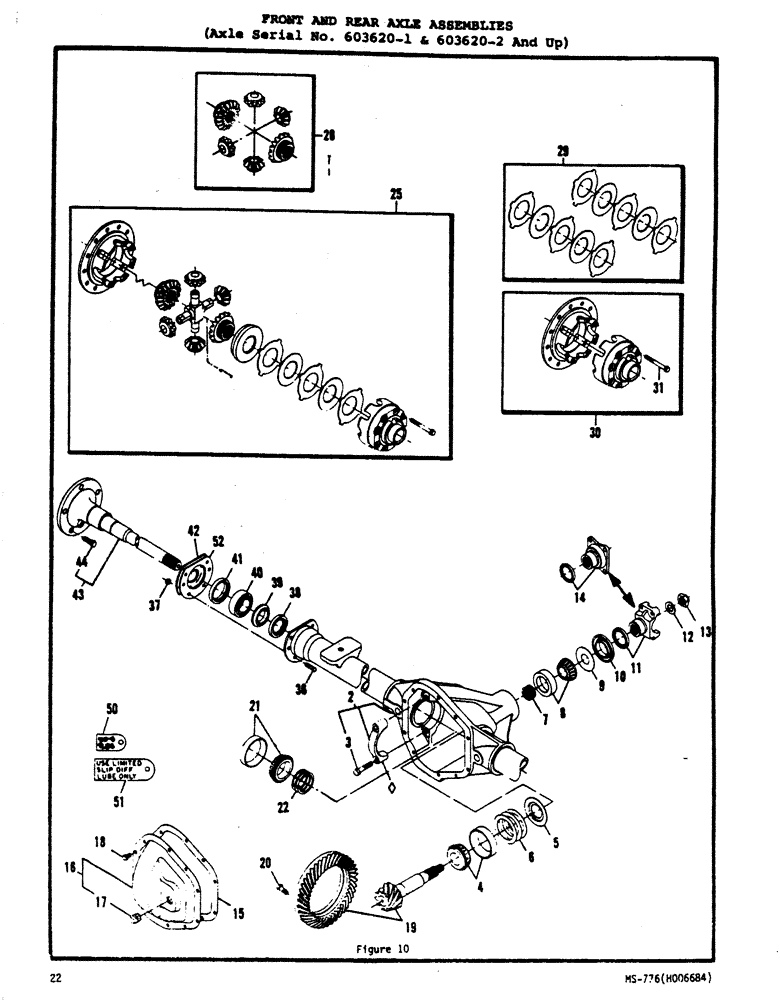

Схема запчастей Case N63 - (22) - FRONT AND REAR AXLE ASSEMBLIES, (AXLE SERIAL NO. 603620-1 & 603620-2 AND UP
28
41
44
43
25
8
40
12
50
2
36
3
38
4
13
17
15
29
31
37
9
18
21
51
52
11
30
14
16
6
22
7
10
39
42
19
20
5

Артикул

Название

Примечание

Количество

1

H608679

Front Axle Asm

1шт.

1

H608687

Rear Axle Asm

1шт.

2

H636837

HOUSING ASSY.

Housing Asm (Replaces H610717)

1шт.

3

H248310

CYLINDER END CAP

Differential Bearing Cap Screw

4шт.

4

H600072

KIT

- Inner Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

5

H197616

BAFFLE

- Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

6

H197871

SHIM,.003" Thk

Drive pinion .003" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

6

H197889

SHIM,.005" Thk

Drive pinion .005" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

6

H197897

SHIM,.010" Thk

Drive pinion .010" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197665

SHIM,.003" Thk

Pinion bearing .003" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197673

SHIM,.005" Thk

Pinion bearing .005" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197681

SHIM,.010" Thk

Pinion bearing .010" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197699

SHIM,.030" Thk

Pinion bearing .030" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

8

H600080

KIT

- Outer Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

9

H197764

WASHER

Slinger - Outer Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

10

H226597

SEAL

- Pinion

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

11

H197590

YOKE

End Yoke - Front Axle (Includes H196998 Slinger Ring)

1шт.

12

H197574

WASHER

- Pinion Nut

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

13

H197566

NUT

- Pinion

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

14

H560524

FLANGE

End Yoke - Rear Axle (Includes H196998 Slinger Ring)

1шт.

15

H197921

GASKET

- Carrier Cover

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

16

H197905

PLATE

Cover - Carrier

1шт.

17

H753897

PIPE CLAMP

Plug

1шт.

18

H226555

FLANGE BOLT

Bolt - Carrier Cover

10шт.

19

H583492

GEAR-SET

Drive Gear And Pinion Set (Includes Item #13)

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

20

H225219

BOLT (SPREADER)

Drive Gear Screw

10шт.

Included in P/N H620617 gear and pinion kit.

1шт.

21

H600098

KIT

- Differential Bearing

2шт.

22

H197947

SHIM,.003" Thk

Differential bearing .003" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

22

H197954

SHIM,.005" Thk

Differential bearing .005" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

22

H197962

SHIM,.010" Thk

Differential bearing .010" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

22

H197970

SHIM,.030" Thk

Differential bearing .030" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

25

H615823

CASE ASSY.

Differential Case Asm

1шт.

28

H197939

GEAR-SET

Kit - Differential Gear And Pinion

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

29

H206896

CLUTCH DISC

Kit - Differential Disc And Plate

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

30

H248443

CASE ASSY.

Case - Differential

1шт.

31

H232579

BOLT,Hex, 3/8" - 24 LH Thd x 2.906"

Differential Case Screw

8шт.

36

H197715

BOLT

Bolt - Brake

8шт.

37

H197780

LOCK NUT

Nut - Brake Bolt

8шт.

38

H197749

SEAL

Oil Seal

2шт.

39

H303313

RING

- Wheel Bearing Retainer

2шт.

40

H757161

BEARING

2шт.

41

H757153

OIL SEAL

Oil Seal

2шт.

42

H303305

RETAINER

- Oil Seal

2шт.

43

H610691

CENTER AXLE

Shaft And Wheel Bolt Asm

2шт.

44

H171090

WHEEL BOLT

5шт.

50

H232561

Tag - Ratio

1шт.

51

H226571

TAG

- Differential Lube

1шт.

52

H197723

SPACER

- Wheel Bearing

2шт.

Выбрано товаров: 71
