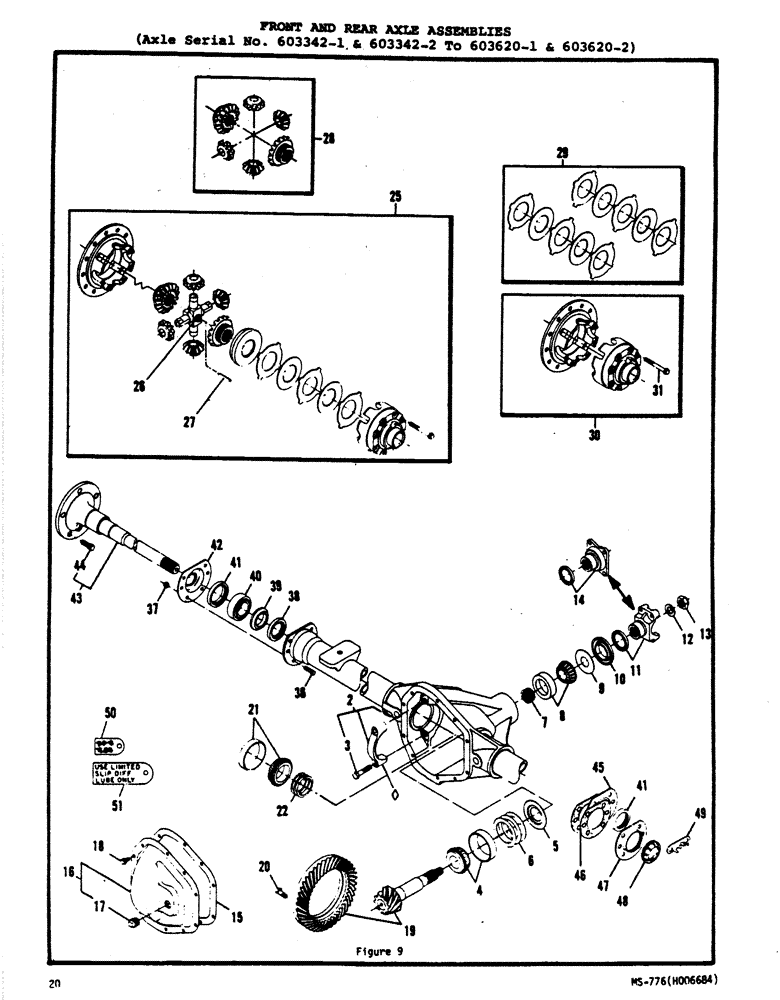

Запчасти Case N63 (20) - FRONT AND REAR AXLE ASSEMBLIES, (AXLE SERIAL NO. 603342-1 & 603342-2 TO 603620-1 & 603620-2)

1

H579912

Front Axle Asm

1шт.

1

H579920

Rear Axle Asm

1шт.

2

H583468

Housing Asm - Axle

1шт.

3

H226548

SCREW

Differential Bearing Cap Screw

4шт.

4

H600072

KIT

- Inner Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

5

H197616

BAFFLE

- Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

6

H197871

SHIM,.003" Thk

Drive pinion .003" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

6

H197889

SHIM,.005" Thk

Drive pinion .005" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

6

H197897

SHIM,.010" Thk

Drive pinion .010" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197665

SHIM,.003" Thk

Pinion bearing .003" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197673

SHIM,.005" Thk

Pinion bearing .005" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197681

SHIM,.010" Thk

Pinion bearing .010" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

7

H197699

SHIM,.030" Thk

Pinion bearing .030" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

8

H600080

KIT

- Outer Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

9

H197764

WASHER

Slinger - Outer Pinion Bearing

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

10

H226597

SEAL

- Pinion

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

11

H197590

YOKE

End Yoke Asm - Front Axle (Includes H196998 Slinger Ring)

1шт.

12

H197574

WASHER

- Pinion Nut

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

13

H197566

NUT

- Pinion

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

14

H560524

FLANGE

End Yoke Asm - Rear Axle (Includes H196998 Slinger Ring)

1шт.

15

H197921

GASKET

- Carrier Cover

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

16

H197905

PLATE

Cover - Carrier, order one each of H753509 and H753517

1шт.

17

H753897

PIPE CLAMP

Plug

1шт.

18

H226555

FLANGE BOLT

Bolt - Carrier Cover

10шт.

19

H583492

GEAR-SET

Drive Gear And Pinion Set (Includes Item 13)

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

20

H225219

BOLT (SPREADER)

Drive Gear Screw

10шт.

Included in P/N H620617 gear and pinion kit.

1шт.

21

H600098

KIT

- Differential Bearing

2шт.

22

H197947

SHIM,.003" Thk

Differential bearing .003" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

22

H197954

SHIM,.005" Thk

Differential bearing .005" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

22

H197962

SHIM,.010" Thk

Differential bearing .010" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

22

H197970

SHIM,.030" Thk

Differential bearing .030" Thk

1шт.

Included in P/N H620617 gear and pinion kit.

1шт.

25

H583484

CASE ASSY.

Differential Case Asm

1шт.

26

H204735

SPACER

- Axle Shaft

1шт.

27

H741686

PIN

Roll Pin - Axle Shaft Spacer

1шт.

28

H197939

GEAR-SET

Kit - Differential Gear And Pinion

1шт.

29

H206896

CLUTCH DISC

Kit - Differential Disc And Plate

1шт.

30

H248443

CASE ASSY.

Case - Differential

1шт.

31

H232579

BOLT,Hex, 3/8" - 24 LH Thd x 2.906"

Differential Case Screw

8шт.

36

H197715

BOLT

Bolt - Brake Disc

8шт.

37

H197780

LOCK NUT

Nut - Brake Disc Bolt

8шт.

38

H197749

SEAL

- Oil

2шт.

39

H197756

Rear Wheel Bearing Retaining Ring

2шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

40

H600155

Bearing Asm, order prime parts H753517 cup and H753509 cone

2шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

41

H197814

SEAL

- Oil

2шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

42

H281691

Wheel Bearing Retainer

1шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

43

H583500

Axle Shaft Asm

2шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

44

H171090

WHEEL BOLT

5шт.

45

H197723

SPACER

- Wheel Bearing

2шт.

46

H197731

GASKET

- Wheel Bearing Spacer

4шт.

47

H197798

Retainer - Wheel Bearing Adjusting Ring

1шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

48

H197822

RING

Wheel Bearing Adjusting Ring

1шт.

For complete LH axle assembly, order H583567. Includes Ref. 39, 40, 41, 42, 43 and 44. For complete RH axle assembly, order H583559. Includes Ref. 39, 40, 41, 43, 44, 47 and 48.

1шт.

49

H197772

Lock - Wheel Bearing Adjusting

1шт.

50

H232561

Tag - Ratio

1шт.

051

H226571

TAG

- Differential Lube

1шт.
