Запчасти Case N63 (18) - DRIVE LINE, AXLES, CHAIN REDUCTION

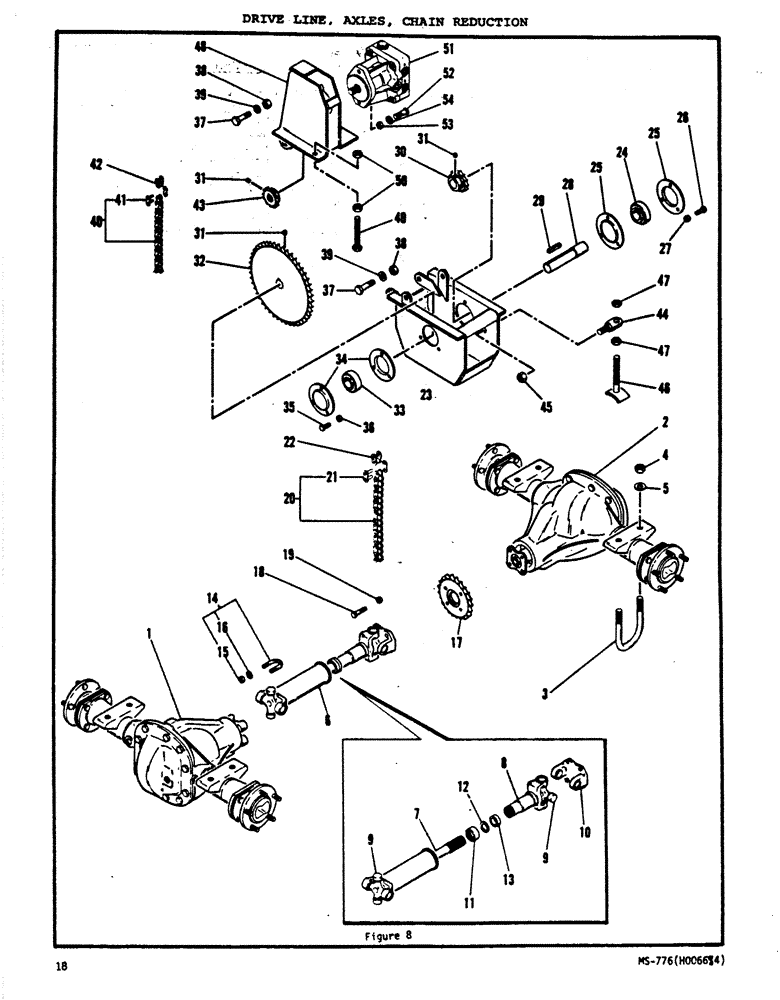

Схема запчастей Case N63 - (18) - DRIVE LINE, AXLES, CHAIN REDUCTION
30
14
21
31
47
39
44
12
38
41
19
40
7
31
22
42
39
11
46
35
48
47
54
10
23
52
26
32
20
36
18
38
43
31
2
37
15
8
34
28
1
24
48
16
51
4
45
13
25
29
5
27
37
33
5
50
9
53
9
25
17
3

Артикул

Название

Примечание

Количество

1

H579912

Axle Asm - Front (See Figure 20)

1шт.

Axle S/N 603342-1 and 603342-2 to 603620-1 and 603620-2.

1шт.

1

H608679

Axle Asm - Front (See Figure 22)

1шт.

Axle S/N 603620-1 and 603620-2 and up.

1шт.

2

H579920

Axle Asm - Rear (See Figure 20)

1шт.

Axle S/N 603342-1 and 603342-2 to 603620-1 and 603620-2.

1шт.

2

H608687

Axle Asm - Rear (See Figure 22)

1шт.

Axle S/N 603620-1 and 603620-2 and up.

1шт.

3

H182089

U-BOLT

4шт.

4

H738039

LOCK NUT

Nut (1/2 NC - Lock)

8шт.

5

H738484

WASHER

- Flat (1/2)

8шт.

6

H580589

DRIVE SHAFT

Drive Line Asm

1шт.

7

H250142

DRIVE SHAFT

Spline Tube & Yoke

1шт.

8

H223867

YOKE

Sleeve & Yoke

1шт.

9

H584813

BEARING

Journal & Bearing Replacement Kit

2шт.

10

H251777

FLANGE

Companion Flange

1шт.

11

H223875

CYLINDER END CAP

Dust Cap

1шт.

12

H223891

WASHER

Steel Washer

1шт.

13

H223883

WASHER

Cork Washer

1шт.

14

H183566

BOLT

U Bolt (W/Nuts, Lockwasher)

2шт.

15

H735928

NUT

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

H182378

DRIVE SPROCKET

Sprocket

1шт.

18

H221622

BOLT (SPREADER)

Bolt - Special

4шт.

19

H746750

LOCK NUT

Nut (3/8 NF - Lock)

4шт.

20

H752691

CHAIN (AG)

Chain (#60-38 Pitches)

1шт.

21

H748319

LINK

Connector Link (#60)

1шт.

22

B12510

CHAIN LINK

Hold Link (#60) (Replaces H751784)

1шт.

23

H579680

Reduction Box

1шт.

24

H747238

BEARING

1шт.

25

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

Flangette

2шт.

26

H709832

BOLT

HHCS (3/8 x 3/4 NC)

3шт.

27

H738013

LOCK NUT

Nut (3/8 NC - Lock)

3шт.

28

H187575

SHAFT

1шт.

29

H181552

KEY

- Square (1/4 x 3)

1шт.

30

H183970

DRIVE SPROCKET

Sprocket

1шт.

31

H745968

SET SCREW

SHSS (1/4 x 3/8 NC)

6шт.

32

H188920

DRIVE SPROCKET

Sprocket

1шт.

33

H747048

BEARING

1шт.

34

H747071

FLANGE

tte

2шт.

35

H709436

BOLT

HHCS (5/16 x 3/4 NC)

3шт.

36

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC Lock)

3шт.

37

H710640

X

HHCS (1/2" x 1 1/2" NC)

4шт.

38

H738039

LOCK NUT

Nut (1/2" NC - Lock)

4шт.

39

H738484

WASHER

- Flat (1/2")

1шт.

40

H753129

CHAIN (AG)

Chain (#50 - 59 Pitches)

1шт.

41

H748293

LINK

Connector Link (#50)

1шт.

42

H748301

OFFSET LINK

Half Link (#50) (Replaces H751784)

1шт.

43

H251827

DRIVE SPROCKET

Sprocket - Motor

1шт.

44

H559112

LUG

1шт.

45

230-42110

LOCK NUT,5/8"-11, GA

Nut (5/8 NC - Lock)

1шт.

46

H558809

ADJUSTER

Adjusting Yoke

1шт.

47

H736686

NUT

(5/8" NC - Jam)

2шт.

48

H579698

Motor Mounting Bracket

1шт.

49

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

Adjusting Screw

1шт.

50

86632558

JAM NUT,Jam, 1/2"-13, G5

Nut (1/2" NC - Jam)

2шт.

51

H619676

FASTENER

Propulsion Motor (See Figure 30)

1шт.

52

H710269

BOLT

HHCS (7/16" x 1 1/2" NC)

2шт.

53

H738021

X

Nut (7/16" NC - Lock)

2шт.

54

H738476

WASHER

- Flat (7/16)

2шт.

Выбрано товаров: 60
