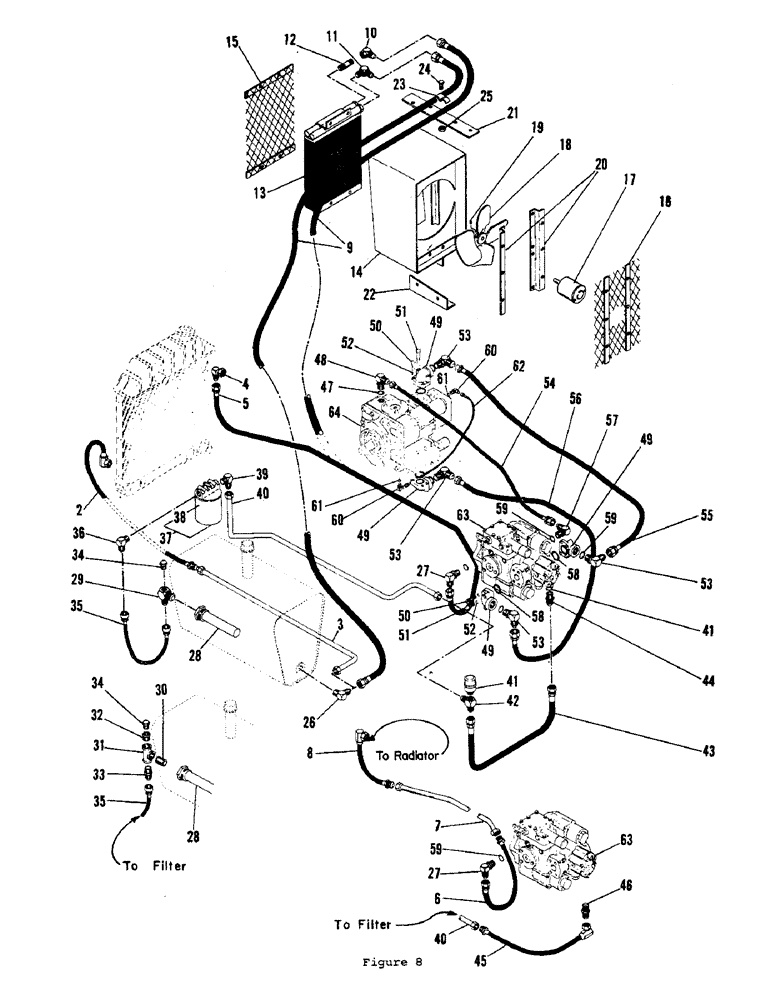

Запчасти Case L55 (18) - PROPULSION CIRCUIT - FORD ENGINES

2

H242347

HOSE ASSY.

HOSE (1/2 x 12 - 7/8 JIC M x 90 degrees JIC Fe Sw)

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

3

H580019

TUBE 0.625" OD x 34, 3.25" L

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

4

H30726

ELBOW

- 90 degrees - after spec. #P55FG59, P55FD60

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

5

H246066

HOSE ASSY.

HOSE (1/2 x 88 - 7/8 JIC Fe Sw ends) After spec. #P55FG59, P55FD60

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

6

H169110

HOSE ASSY.

HOSE (1/2 x 24 - 7/8 JIC M x 7/8 JIC Fe Sw) Up to spec. P55FG59, P55FD60

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

7

H580027

TUBE (Up to spec. #P55FG59, P55FD60) 0.625" OD x 31.375, 9" L

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

8

H242347

HOSE ASSY.

HOSE (1/2 x 12-7/8 JIC M x 90 degrees 7/8 JIC Fe Sw) Up to spec. #P55FG59, P55FD60

1шт.

Up to spec. no. P55FG63, P55FD64.

1шт.

9

H246066

HOSE ASSY.

HOSE (1/2 x 88 - 7/8 JIC Fe Sw ends)

2шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

10

218-1081

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-18, NPTF

- 90 degrees

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

11

H259242

ELBOW

- 90 degrees

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

12

H755033

NIPPLE, LUBE

NIPPLE (3/8 x 1-1/2)

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

13

H570044

COOLER ASSY.

OIL COOLER

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

14

H593780

COOLER ASSY.

HOUSING

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

15

H594812

GUARD ASSY.

GUARD - cooler

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

16

H594820

GUARD

- fan

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

17

H602300

MOTOR, ELECTRIC

FAN MOTOR

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

18

H191460

FAN

BLADE

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

19

H746057

SET SCREW

CPSS (1/4 x 1/2 NF)

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

20

H594838

BRACKET

FAN SUPPORT

2шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

21

H297804

BLADE

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

22

H297796

MOUNTING BRACKET

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

23

H98897

CLAMP

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

24

H709436

BOLT

HHCS (5/16 x 3/4 NC)

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

25

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

1шт.

Spec. no. P55FG63, P55FD64 and up.

1шт.

26

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

- 90 degrees

1шт.

27

H31674

ADAPTER

ELBOW - 90 degrees

1шт.

28

H228197

FILTER CARTRIDGE

SUCTION SCREEN

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

28

H151399

FILTER STRAINER

SUCTION SCREEN, Units not equipped with hydrulic vacuum indicator.

1шт.

29

H298067

SPECIAL ELBOW, Units not equipped with hydrulic vacuum indicator.

1шт.

30

H753954

NIPPLE, LUBE

NIPPLE

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

31

H749978

TEE

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

32

H753988

REDUCER

BUSHING (3/4 x 1/2)

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

33

H168831

ADAPTER

CONNECTOR

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

34

H81935

SENDER UNIT

OIL TEMPERATURE SENDER

1шт.

35

H213025

HOSE ASSY.

HOSE (1/2 x 16 - 7/8 JIC Fe Sw ends)

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

35

H248997

HOSE (1 x 28 - 1-5/16 JIC Fe Sw ends), Units not equipped with hydrulic vacuum indicator.

1шт.

36

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

- 90 degrees

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

36

H257238

ELBOW

- 90 degrees, Units not equipped with hydrulic vacuum indicator.

1шт.

37

H568881

FILLER

FILTER ASM

1шт.

38

H217307

FILTER, ENGINE OIL

FILTER CARTRIDGE

1шт.

39

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

- 90 degrees

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

39

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degrees, Units not equipped with hydrulic vacuum indicator.

1шт.

40

H580001

TUBE 0.625" OD

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

40

H607291

TUBE Units not equipped with hydrulic vacuum indicator. 1" OD

1шт.

41

H287466

GAUGE ASSY.

VACUUM INDICATOR

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

42

H297986

SPECIAL ELBOW

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

43

H297978

HOSE (1/2 x 24 - 1-5/6 x 1-1/6 JIC Fe Sw Ends)

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

44

H218016

CONNECTOR, ELEC

CONNECTOR

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

45

H244558

HOSE

(1/2 x 18 - 90 degrees 7/8 JIC Fe Sw x 7/8 JIC M), Units not equipped with hydrulic vacuum indicator.

1шт.

46

H35386

ROD, CONNECTING

CONNECTOR Units not equipped with hydrulic vacuum indicator.

1шт.

47

H745174

O-RING

O RING

1шт.

48

H31674

ADAPTER

ELBOW - 90 degrees

1шт.

49

H217513

ADAPTER - 90 degrees

4шт.

50

H750349

CAPSCREW

AHCS (3/8 x 1 NC)

8шт.

51

H754895

CAPSCREW

AHCS (3/8 x 2 NC)

8шт.

52

H739219

LOCK WASHER

(3/8)

16шт.

53

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

- 90 degrees

4шт.

54

H195958

HOSE,45.00", SAE 100R1

1шт.

55

H240101

HOSE ASSY.

HOSE (3/4 x 60 - 1-1/16 JIC Fe Sw ends)

1шт.

56

H275057

HOSE ASSY.

HOSE (3/4 x 63 - 1-1/16 JIC Fe Sw ends)

1шт.

57

H31674

ADAPTER

ELBOW - 90 degrees

1шт.

58

H743443

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O RING

1шт.

59

H745182

O-RING

O RING

1шт.

60

H190264

ELBOW

- 90 degrees

2шт.

61

H745141

O-RING

O RING

1шт.

62

H217471

HOSE ASSY.

HOSE (1/4 x 14 - 7/16 JIC Fe Sw ends)

1шт.

63

H566745

PROPULSION PUMP ASM (See Figure 20 for parts list)

1шт.

64

H567479

PROPULSION MOTOR ASM (See Figure 20 for parts list)

1шт.

This propulsion circuit is ALSO for "CASE" Engines.

1шт.
