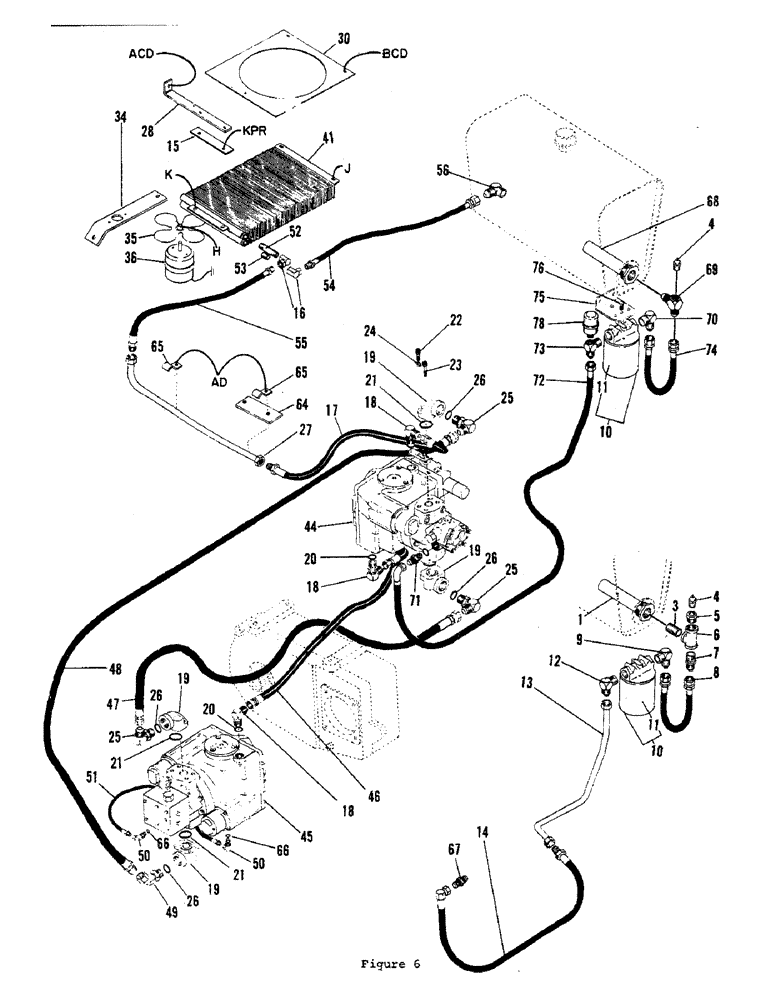

Запчасти Case L55 (14) - PROPULSION CIRCUIT - WISCONSIN ENGINES

1

H228197

FILTER CARTRIDGE

SUCTION SCREEN

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

3

H753954

NIPPLE, LUBE

PIPE NIPPLE (3/4 all thd)

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

4

H81935

SENDER UNIT

SENDER - oil temperature

1шт.

5

H753988

REDUCER

PIPE BUSHING, Serial Range: (3/4-1/2)

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

6

H749978

TEE

PIPE TEE (3/4)

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

7

H168831

ADAPTER

- straight

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

8

H213025

HOSE ASSY.

HOSE (1/2 x 16) 7/8 JIC Fm Sw ends

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

9

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

ADAPTER - 90 degrees

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

10

H568881

FILLER

FILTER ASM

1шт.

11

H217307

FILTER, ENGINE OIL

FILTER CARTRIDGE

1шт.

12

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

ADAPTER - 90 degrees

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

13

H577445

TUBE - filter to pump 0.625" OD

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

14

H245449

HOSE - 1/2 x 15 - 7/8 JIC M x 90 degrees 7/8 JIC Fe Sw

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

15

H221259

TAPPED PLATE

2шт.

16

H34173

FITTING

ADAPTER - 90 degrees

2шт.

17

H169110

HOSE ASSY.

HOSE (1/2 x 24) 7/8 JIC Fe Sw x 7/8 JIC male

1шт.

18

H31674

ADAPTER

- 90 degrees

3шт.

19

H217513

ADAPTER FITTING

4шт.

20

H745174

O-RING

O RING

4шт.

21

H743443

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O RING

4шт.

22

H750349

CAPSCREW

AHCS (3/8 x 1 NC)

4шт.

23

H754895

CAPSCREW

AHCS (3/8 x 2 NC)

4шт.

24

H739219

LOCK WASHER

(3/8)

8шт.

25

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

ADAPTER - 90 degrees

3шт.

26

H745182

O-RING

O RING

4шт.

27

H568956

TUBE - pump to oil cooler 0.625" OD x 21.5, 2" L

1шт.

28

H225243

ANGLE BRACE

1шт.

30

H221333

BAFFLE - oil cooler

1шт.

34

H220392

SUPPORT ASSY.

FAN MOTOR BRACKET

1шт.

35

H191460

FAN

BLADE

1шт.

36

H602300

MOTOR, ELECTRIC

FAN MOTOR

1шт.

41

H570044

COOLER ASSY.

HEAT EXCHANGER

1шт.

44

H566745

PROPULSION PUMP - see figure 20 for parts list

1шт.

45

H567479

PROPULSION MOTOR - see figure 20 for parts list

1шт.

46

H200279

HOSE ASSY.

HOSE (1/2 x 23) 7/8 JIC Fm Sw - both ends

1шт.

47

H218297

HOSE

(3/4" x 37") 1-1/16 JIC Fm Sw - both ends

1шт.

48

H218289

HOSE (3/4 x 48) 1-1/16 JIC Fm Sw - 3/4 MP

1шт.

49

H205609

ADAPTER

- 45 degrees

1шт.

50

H190264

ELBOW

ADAPTER - 90 degrees

2шт.

51

H217471

HOSE ASSY.

HOSE (1/4 x 14) 7/16 JIC Fm Sw - both ends

1шт.

52

H755017

PIPE NIPPLE (3/8 x 2-1/2) black

1шт.

53

H755033

NIPPLE, LUBE

PIPE NIPPLE (3/8 x 1-1/2) black

1шт.

54

H228189

HOSE (1/2 x 28) 3/8 MP x 7/8 JIC Fm Sw (5/8 tube) 0.625" OD x 28" L

1шт.

55

H220541

Hose (1/2 x 15) 3/8 MP x 7/8 JIC male

1шт.

56

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

ADAPTER - 90 degrees

1шт.

64

H218040

TUBE CLAMP PLATE

1шт.

65

H98897

CLAMP

TUBE CLAMP

2шт.

66

H745141

O-RING

O RING

2шт.

67

H35386

ROD, CONNECTING

ADAPTER

1шт.

Units not equipped with hydraulic vacuum indicator.

1шт.

68

H151399

FILTER STRAINER

OIL FILTER

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

69

H298067

SPECIAL FITTING

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

70

H257238

ELBOW

- 90 degrees

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

71

H218016

CONNECTOR, ELEC

CONNECTOR

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

72

H266247

HOSE

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

73

H298075

SPECIAL FITTING

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

74

H276931

HOSE

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

75

H191528

BRACKET

ANGLE BRACKET

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

76

H709113

X

HHCS (1/4 x 3/4 - NC)

2шт.

Units equipped with hydraulic vacuum indicator.

1шт.

78

H287466

GAUGE ASSY.

VACUUM INDICATOR

1шт.

Units equipped with hydraulic vacuum indicator.

1шт.

a

H709451

BOLT (SPREADER)

HHCS (5/16 x 1)

3шт.

b

H709436

BOLT

HHCS (5/16 x 3/4 NC)

2шт.

c

H738450

WASHER

FLAT WASHER (5/16)

4шт.

d

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

5шт.

h

H753277

X

AHCS (10-32 x 3/8) cup point

1шт.

p

H709113

X

HHCS (1/4 x 3/4 NC)

2шт.

r

H739193

WASHER, LOCK

LOCK WASHER

6шт.
