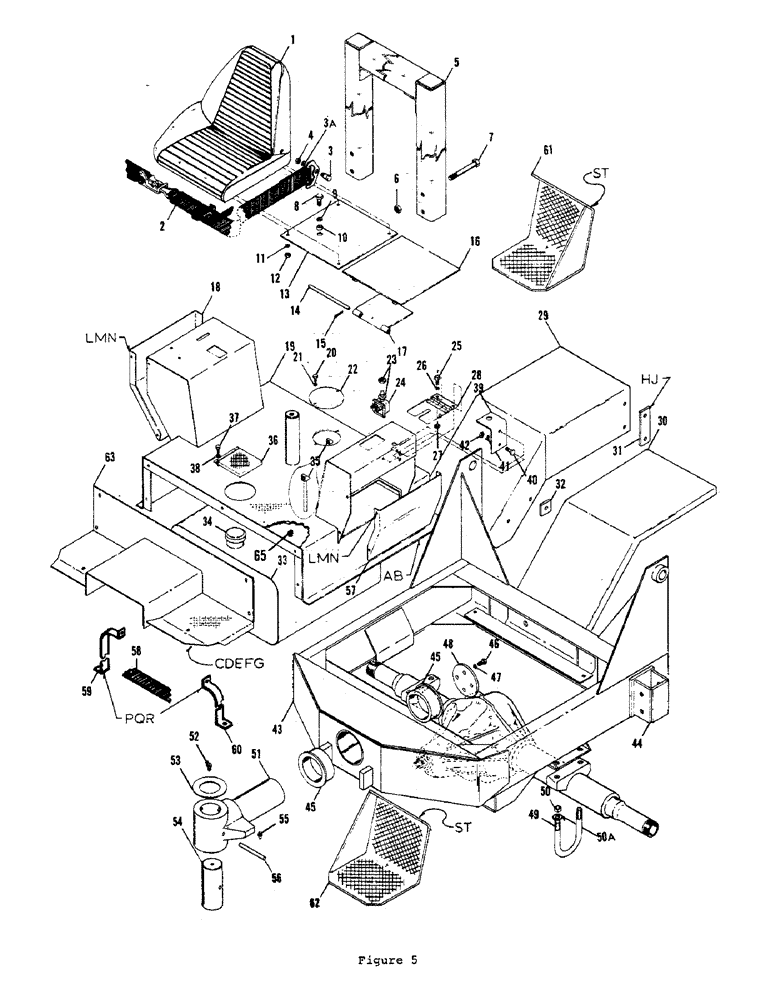

Запчасти Case L55 (12) - REAR FRAME, SEAT, ROPS, FLOOR PLATE, FENDERS

1

H594556

SEAT

ASSEMBLY (replaces H523894)

1шт.

Up to spec. no. P55WS28, P55FG29, P55FD30.

1шт.

2

H594556

SEAT

ASSEMBLY

1шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

2

H594564

SAFETY BELT ,3.00" W

3.00" W

1шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

3

H714717

X

BOLT - HH (7/16-20 x 1-1/4 NF)

2шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

3a

H277566

WASHER

- floor

2шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

4

H738161

X

NUT (7/16 NF - lock)

2шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

5

H594663

ROPS WELD ASSEMBLY

1шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

6

H738039

LOCK NUT

NUT (1/2 NC - lock)

4шт.

7

H710764

BOLT

HHCS (1/2" x 4-1/2" NC)

4шт.

8

H718783

HHCS (3/8" x 1-1/4" NC)

1шт.

9

H738617

WASHER

(3/8 - wrought)

1шт.

10

H270538

SPACER

SEAT SPACER

1шт.

11

H739201

WASHER

LOCK WASHER (5/16")

4шт.

12

H735787

NUT (5/16" NC)

4шт.

13

H594739

MOUNTING PARTS

SEAT MOUNTING ASSEMBLY

1шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

14

H190637

PIN

SEAT HINGE PIN

1шт.

Up to spec. no. P55WS28, P55FG29, P55FD30.

1шт.

15

H739946

KEY

COTTER PIN (1/8" x 1")

2шт.

Up to spec. no. P55WS28, P55FG29, P55FD30.

1шт.

16

H549691

MOUNTING PARTS

SEAT MOUNTING PLATE ASM

1шт.

Up to spec. no. P55WS28, P55FG29, P55FD30.

1шт.

17

H549709

BRACKET

UPPER SEAT BRACKET ASM

1шт.

Up to spec. no. P55WS28, P55FG29, P55FD30.

1шт.

H297515

CUSHION ASSY.

CUSHION seat back

1шт.

H297507

SEAT

CUSHION seat

1шт.

18

H595462

COVER PANEL, valve console

1шт.

19

H587329

FLOOR PLATE ASSEMBLY

1шт.

Up to spec. no. P55WS28, P55FG29, P55FD30.

1шт.

20

H600403

FLOOR PLATE ASSEMBLY

1шт.

Spec. no. P55WS28, P55FG39, P55FD30 & up.

1шт.

20

H709436

BOLT

HHCS (5/16" x 3/4" NC)

2шт.

21

H739201

WASHER

LOCK WASHER (5/16")

2шт.

22

H227165

COVER - fuel tank sender

1шт.

23

H275784

JAM NUT

HEX NUT - upper (5/8-32 UN-2A thread)

1шт.

23

H275792

PAL NUT - steel - lower

1шт.

24

H201285

SWITCH

START BUTTON

1шт.

25

H709436

BOLT

HHCS (5/16" x 3/4" NC)

2шт.

26

H738450

WASHER

FLAT WASHER (5/16")

2шт.

27

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

2шт.

28

H562546

LATCH

STOP LATCH ASSEMBLY

1шт.

29

H568246

FENDER - right

1шт.

30

H568253

FENDER - left

1шт.

31

H216598

SPACER - rear

2шт.

32

H216606

SPACER - front, Up to spec. P55WS49, P55FG50 and P55FD51

2шт.

33

H516971

FUEL TANK

1шт.

34

H151274

CYLINDER END CAP

CAP - fuel tank

1шт.

Fuel cap for extra large fill neck, use 10731.

1шт.

35

H590281

WITHDRAW TUBE 3.75" OD x 11" L

1шт.

36

H601468

FUEL COVER ASSEMBLY

1шт.

37

H708941

HHCS (3/16 x 3/4 NC)

2шт.

38

H755512

NUT

(3/16" NC - lock)

2шт.

39

H200998

ANGLE

- start button

1шт.

40

H709113

X

HHCS (1/4" x 3/4" NC)

2шт.

41

H738443

WASHER

FLAT WASHER (1/4")

2шт.

42

H737999

LOCK NUT

NUT (1/4 NC - lock)

2шт.

43

H584359

REAR FRAME ASSEMBLY

1шт.

44

H594655

SOCKET ASSEMBLY

2шт.

Rear frames on early models are not equipped with socket assemblies. To install ROPS on these frames, order retrofit kit no. H922260.

1шт.

45

H276899

BUSHING

2шт.

46

H283614

BOLT

(5/8 x 1-1/2 - AN80H14 or M520074-10-14)

4шт.

47

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

FLAT WASHER (5/8" heat treated)

4шт.

48

H210708

PLATE

- pivot

1шт.

49

H212720

U-BOLT

- axle attaching

2шт.

50

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

50a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

FLAT WASHER (3/4 heat treated)

4шт.

51

H276964

AXLE PIN

PIVOT SHAFT

1шт.

52

H745315

FITTING

GREASE FITTING (1/4-28 x 45 degrees)

2шт.

53

H261834

SHIM,.030" Thk

Vertical pivot .030" Thk

1шт.

53

H260943

SHIM,.135" Thk

Vertical pivot .135" Thk

1шт.

53

H260950

SHIM,.060" Thk

Vertical pivot .060" Thk

1шт.

54

H209189

PIVOT PIN

1шт.

55

H745257

FITTING

GREASE FITTING (1/8 NPT - straight)

1шт.

In some application a straight fitting 1/4-28 may be needed, use 219-417.

1шт.

56

H216572

AXLE PIN

KEEPER PIN - pivot pin

1шт.

57

H595470

COVER PANEL ASM - steering console

1шт.

58

H83337

BASE STRAP - fuel tank

2шт.

59

H101204

BAND - fuel tank mounting left

2шт.

60

H101212

BAND - fuel tank mounting right

2шт.

61

H582668

STEP ASSEMBLY - right

1шт.

62

H582676

STEP ASSEMBLY - left

1шт.

63

H600411

FOOT REST ASSEMBLY

1шт.

65

H749606

PIPE PLUG

2шт.

a

H709857

BOLT

HHCS (3/8" x 1" NC)

4шт.

b

H738013

LOCK NUT

NUT (3/8" NC - lock)

4шт.

c

H709436

BOLT

HHCS (5/16" x 3/4" NC)

5шт.

d

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

2шт.

e

H738450

WASHER

FLAT WASHER (5/16")

7шт.

f

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

2шт.

g

H739201

WASHER

LOCK WASHER (5/16")

5шт.

h

H709873

BOLT

HHCS (3/8" x 1-1/2 NC)

8шт.

j

H738013

LOCK NUT

NUT (3/8" NC - lock)

8шт.

k

H738500

WASHER

FLAT WASHER (5/8")

4шт.

l

H709436

BOLT

HHCS (5/16" x 3/4" NC)

8шт.

m

H738450

WASHER

FLAT WASHER (5/16")

8шт.

n

H739201

WASHER

LOCK WASHER (5/16")

8шт.

p

H709873

BOLT

HHCS (3/8 x 1-1/2 NC)

2шт.

q

H709832

BOLT

HHCS (3/8" x 3/4" NC)

4шт.

r

H738013

LOCK NUT

NUT (3/8 NC - lock)

6шт.

s

H709873

BOLT

HHCS (3/8" x 1-1/2" NC)

8шт.

t

H738013

LOCK NUT

NUT (3/8" NC - lock)

8шт.
