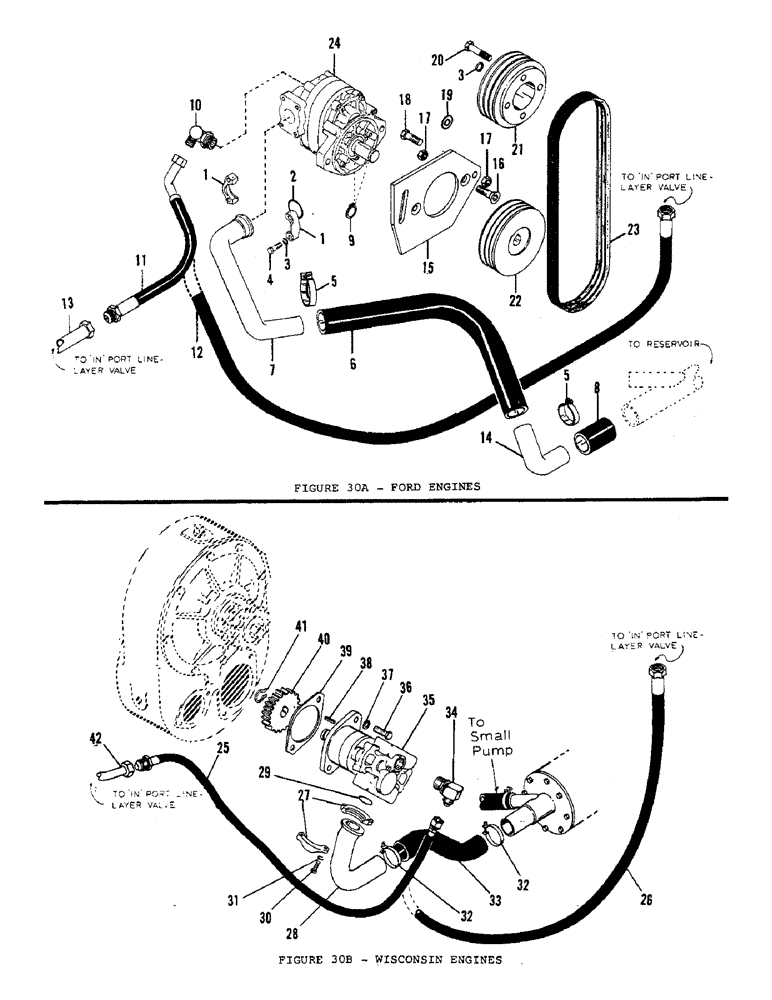

Запчасти Case L55 (62) - LINE LAYER PUMP INSTALLATION

1

H45583

FLANGE

- suction tube, Ford engine only

2шт.

2

H755322

O-RING

O RING Ford engine only

1шт.

3

H739227

WASHER, LOCK

LOCK WASHER (7/16) Ford engine only

8шт.

4

H710251

SCREW

HHCS (7/16" x 1-1/4" NC) Ford engine only

4шт.

5

H164145

HOSE CLAMP

Ford engine only

2шт.

6

H245431

SUCTION HOSE (1-1/2 x 33) same as Case engine, Ford engine only

1шт.

7

H582296

SUCTION TUBE Ford engine only 1.5" OD x 10.25, 1.75" L

1шт.

8

H218776

SUCTION HOSE (1/2 x 3) Ford engine only

1шт.

9

H746503

RING, SNAP

SNAP RING Ford engine only

1шт.

10

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

ADAPTER - 90 degrees, Ford engine only

1шт.

11

H245472

HOSE (3/4 x 49) 1-1/16 Fm Swv x 45 degrees x 1-1/16 JIC M ends (Rear mounted line-layers only) Ford engine only

1шт.

12

H245845

HOSE (3/4 x 95) 1-1/16 JIC Fm Swv ends (Front mounted line-layer only) Same as Case engine, Ford engine only

1шт.

13

TUBE

1шт.

For additional plumbing for this tube, Ref. 35, figure 60.

1шт.

14

H245365

TUBE Same as Case engine, Ford engine only

1шт.

15

H237339

PUMP MOUNTING PLATE use with Case engine H325829, Ford engine only

1шт.

16

H732933

BOLT

FHCS (1/2 x 1-1/2 NC) Ford engine only

2шт.

17

H738039

LOCK NUT

NUT (1/2 NC - lock) Ford engine only

4шт.

18

H710657

BOLT

HHCS (1/2 x 1-3/4 NC) Ford engine only

2шт.

19

H738484

WASHER

FLAT WASHER (1/2) slotted end of pump mounting plate, Ford engine only

1шт.

20

H710319

BOLT

HHCS (7/16 x 2-3/8 NC) Ford engine only

4шт.

21

H237123

ENGINE SHEAVE use with Case engine H324400, Ford engine only

1шт.

22

H237115

SHEAVE

PUMP SHEAVE same as Case engine, Ford engine only

1шт.

23

H245464

V-BELT

Same as Case Engine, Ford Engine Only

1шт.

24

H569384

PUMP

HYDRAULIC PUMP ASM (See figure 52 for parts list) same as Case engine, Ford engine only

1шт.

25

H218768

HOSE

(3/4 x 52) 1-1/16 JIC Fe Sw x 1-1/16 JIC M (Rear mounted line-layer only) Wisconsin engine only

1шт.

26

H224139

HOSE (3/4 x 43) 1-1/16 JIC Fe Sw ends (Front mounted line-layer only) Wisconsin engine only

1шт.

27

H45583

FLANGE

- suction tube, Wisconsin engine only

1шт.

28

H573568

SUCTION TUBE Wisconsin engine only 1.5" OD

1шт.

29

H755322

O-RING

O RING Wisconsin engine only

1шт.

30

H710251

SCREW

HHCS (7/16 x 1-1/4 NC) same as Case engine, Wisconsin engine only

2шт.

31

H739227

WASHER, LOCK

LOCK WASHER (7/16) Wisconsin engine only

2шт.

32

H164145

HOSE CLAMP

Wisconsin engine only

2шт.

33

H218776

SUCTION HOSE (1-1/2 x 3) Wisconsin engine only

1шт.

34

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

- 90 degrees, Wisconsin engine only

1шт.

35

H569384

PUMP

HYDRAULIC PUMP ASM (See figure 52 for parts list) Wisconsin engine only

1шт.

36

H710632

BOLT

HHCS (1/2 x 1-1/4 NC) Wisconsin engine only

2шт.

37

H746107

GASKET

SEAL WASHER Wisconsin engine only

2шт.

38

H26492

KEY

Wisconsin engine only

1шт.

39

H238303

GASKET

GASKET Wisconsin engine only

1шт.

40

H76190

PUMP

GEAR - pump drive, Wisconsin engine only

1шт.

41

H746503

RING, SNAP

SNAP RING Wisconsin engine only

2шт.

42

TUBE

1шт.

For additional plumbing for this tube, Ref. 35, figure 60.

1шт.
