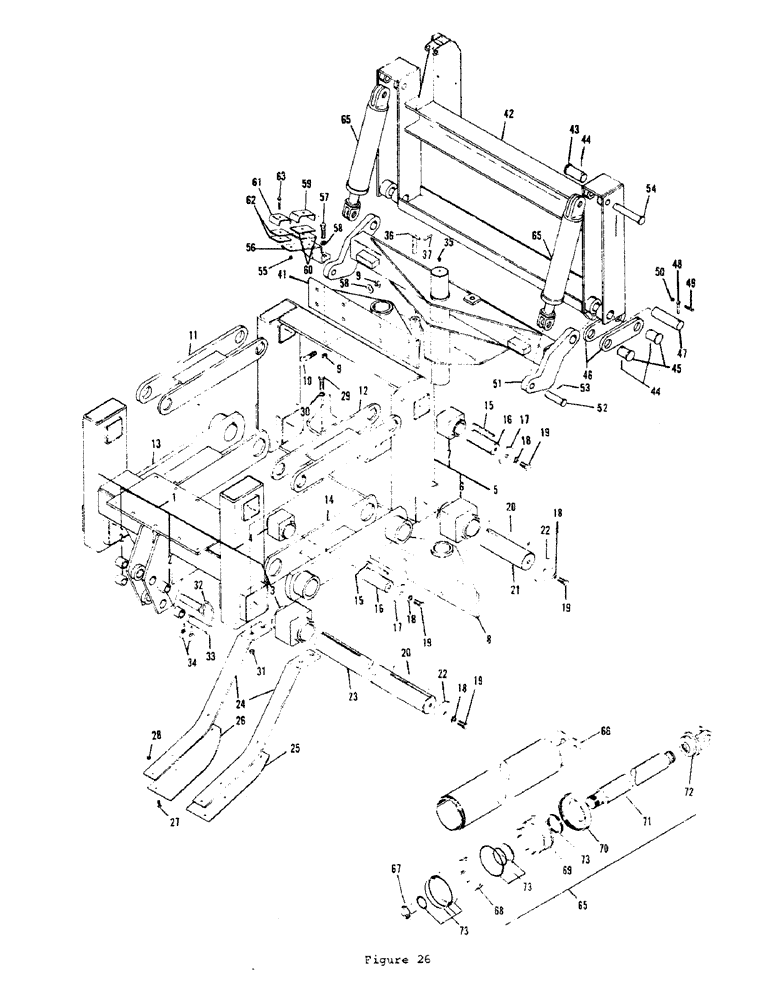

Запчасти Case L55 (54) - P-80 LINE-LAYER, ATTACHING BRACKETS & LIFT CYLINDER ASSEMBLIES

1

H579045

REAR FRAME & BUSHING ASM

1шт.

2

H131102

BUSHING

4шт.

3

H235069

SEAL

RUBBER JOINT

2шт.

4

H230862

SHOCK ABSORBER

RUBBER JOINT

2шт.

5

H579052

FRONT FRAME & BUSHING ASM

1шт.

6

H235069

SEAL

RUBBER JOINT

2шт.

7

H230862

SHOCK ABSORBER

RUBBER JOINT

2шт.

8

H579128

LOWER PIVOT BRACKET

1шт.

9

H738039

LOCK NUT

NUT (1/2" NC - lock)

16шт.

10

H710640

X

HHCS (1/2" x 1-1/2" NC)

16шт.

11

H579003

LINK ASSY.

UPPER LINK - left

1шт.

12

H578997

LINK ASSY.

UPPER LINK - right

1шт.

13

H574533

LINK ASSY.

LOWER LINK - left

1шт.

14

H574541

LINK ASSY.

LOWER LINK - right

1шт.

15

H237461

KEY

(1/4" sq. x 4-11/16")

4шт.

16

H195222

SHAFT

4шт.

17

H196626

WASHER

RETAINER WASHER

8шт.

18

H739250

WASHER

LOCK WASHER (5/8")

14шт.

19

H711366

SCREW

HHCS (5/8" x 1-1/4" NC)

14шт.

20

H230508

KEY (3/8" sq. x 8-11/16)

4шт.

21

H230540

SHAFT

2шт.

22

H230516

WASHER

RETAINER WASHER

6шт.

23

H240382

SHAFT

1шт.

24

H142927

VALVE SPRING

SHOE SPRING

2шт.

25

H149674

SHOE (ASSY)

SHOE

1шт.

26

H149666

SHOE (ASSY)

SHOE

1шт.

27

H734400

BOLT

CAP SCREW (3/8" x 1" NF Csk. hd.)

6шт.

28

H737874

HARDWARE

NUT (1/2" NF - lock)

6шт.

29

H711382

BOLT

HHCS (5/8" x 1-3/4" NC)

4шт.

30

H738500

WASHER

FLAT WASHER (5/8" SAE)

4шт.

31

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

4шт.

32

H531830

AXLE PIN

LOOP PIN

1шт.

33

H79293

AXLE PIN,28.5mm OD x 128.59mm L

PIN (1-1/8" x 4-7/8")

1шт.

34

H32367

PIN

KLIK PIN

2шт.

35

H745257

FITTING

GREASE FITTING

2шт.

36

H565259

PIN

SWING LOCK PIN

1шт.

37

H32292

PIN

HAIR PIN

1шт.

41

H578880

PIVOT

UPPER PIVOT BRACKET

1шт.

42

H579250

LINE-LAYER MOUNTING BRACKET

1шт.

43

H210674

PIN - upper mounting

2шт.

44

H740555

PIN, SPLIT (COTTER)

COTTER PIN (1/4" x 2")

6шт.

45

H210658

AXLE PIN

PIN - lower mounting

4шт.

46

H224956

LINK - mounting

4шт.

47

H226480

PIN - headless

2шт.

48

H36509

AXLE PIN

RETAINER PIN

2шт.

49

H709873

BOLT

HHCS (3/8" x 1-1/2" NC)

2шт.

50

H738013

LOCK NUT

NUT (3/8" NC -lock)

2шт.

51

H579144

TRUNION FRAME

1шт.

52

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN (1" x 2-5/8")

2шт.

53

H740522

HARDWARE

COTTER PIN (1/4" x 1-1/2")

4шт.

54

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN (1" x 5-1/4")

2шт.

55

230-4215

NUT,5/16"-18, GA

Nut (5/16" NC - lock)

1шт.

56

H575589

CLAMP

HOSE CLAMP BRACKET

1шт.

57

H710665

BOLT

HHCS (1/2" x 2" NC)

1шт.

58

H738484

WASHER

FLAT WASHER (1/2")

1шт.

59

H231878

CLAMP

HOSE CLAMP

1шт.

60

H231860

COVER

CLAMP PAD

2шт.

61

H231894

CLAMP

HOSE CLAMP

1шт.

62

H231886

COVER

CLAMP PAD

2шт.

63

H709493

BOLT

HHCS (5/16" x 2" NC)

2шт.

65

H565655

CYLINDER BLOCK

LINE-LAYER LIFT CYLINDER ASSEMBLY

2шт.

66

H571091

TUBE ASSY.

BARREL ASSEMBLY

1шт.

67

H223024

LOCK NUT

1шт.

68

H223073

PISTON ASSY.

PISTON

1шт.

69

H223081

GLAND

1шт.

70

H223032

COLLAR CLAMP

GLAND COLLAR

1шт.

71

H223107

PISTON ROD

1шт.

72

H223065

CLEVIS COUPLING

ROD CLEVIS

1шт.

73

H571075

KIT

SEAL REPAIR KIT

1шт.
