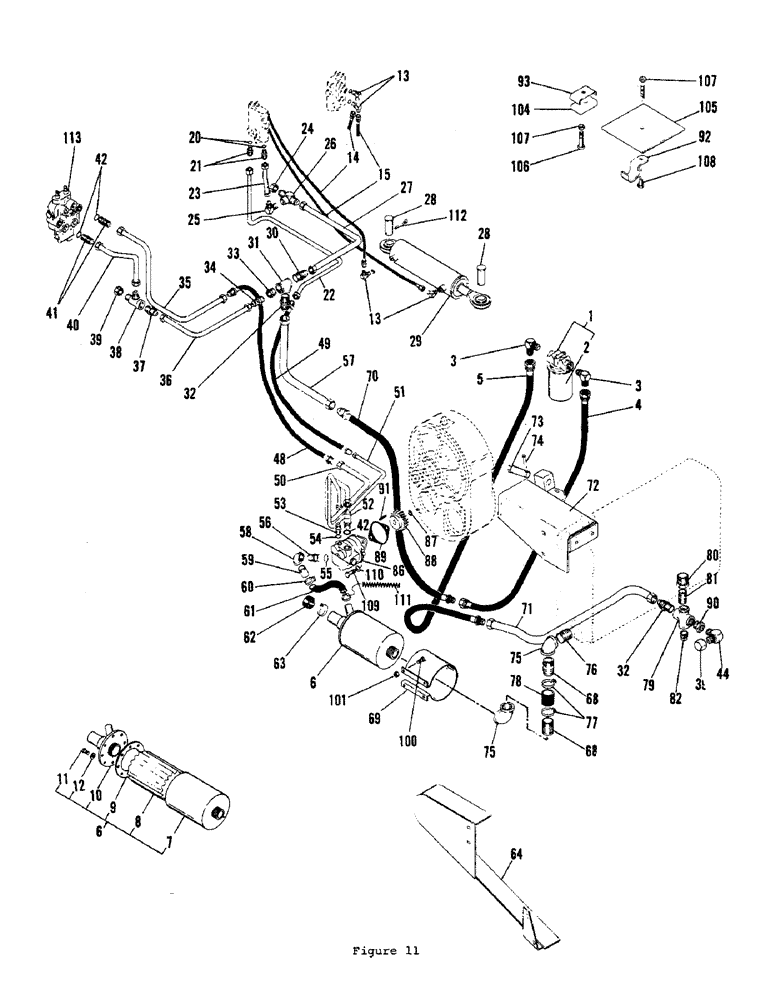

Запчасти Case L55 (24) - BASIC HYDRAULIC CIRCUIT W/O ATTACHMENTS

1

H581132

FILTER

ASM

1шт.

Spec. #P55WS52, P55FG53, P55FD54 & up

1шт.

2

H243600

FILTER, ENGINE OIL

FILTER CARTRIDGE

1шт.

Spec. #P55WS52, P55FG53, P55FD54 & up

1шт.

3

H218461

ELBOW

- 90 degrees

2шт.

Spec. #P55WS52, P55FG53, P55FD54 & up

1шт.

4

H291112

HYDRAULIC HOSE,25.40 mm ID x 1066.80 mm, SAE 100R1

(1-5/16 JIC Fe Sw Ends) 25.40 mm ID x 1066.80 mm, SAE 100R1

1шт.

Spec. #P55WS52, P55FG53, P55FD54 & up

1шт.

5

H291120

HOSE

(1 x 45 - 1-5/16 JIC M x 1-5/16 JIC Fe Sw)

1шт.

Spec. #P55WS52, P55FG53, P55FD54 & up

1шт.

6

H608273

FILTER ASSY

SUCTION FILTER ASM

1шт.

7

H568055

FILTER BODY

1шт.

8

H43802

FILTER CARTRIDGE

1шт.

9

H43794

GASKET

1шт.

10

H506048

FILTER CAP

1шт.

11

H749440

BOLT

HHCS (5/16 x 5/8 NC)

8шт.

12

H738450

WASHER

LOCK WASHER (5/16)

8шт.

13

H165068

ADAPTER

- 90 degrees

4шт.

14

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

15

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

20

H745158

O-RING

O RING

1шт.

21

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

ADAPTER - straight

2шт.

22

H568600

TUBE,0.5" OD

- steer, vlv press

1шт.

Up to spec. #P55WS49, P55FG50 & P55FD51.

1шт.

22

H600908

TUBE - steer, vlv press 0.5" OD

1шт.

Spec. #P55WS49, P55FG50, P55FD51 & up

1шт.

23

H568659

TUBE - steer, vlv return 0.5" OD x 2.375, 1.625" L

1шт.

Up to spec. #P55WS49, P55FG50 & P55FD51.

1шт.

23

H601914

TUBE - steer, vlv return 0.5" OD x 1.625, 1.625" L

1шт.

Spec. #P55WS49, P55FG50, P55FD51 & up

1шт.

24

H218651

CAP

TUBE CAP

1шт.

25

H196337

ELBOW

ADAPTER - 90 degrees

1шт.

26

H218537

TEE

1шт.

27

H568576

TUBE - return - tee to tee 0.75" OD x 11, 10.125" L

1шт.

Up to spec. #P55WS49, P55FG50 & P55FD51.

1шт.

27

H600916

TUBE - return - tee to tee 0.75" OD x 8.75, 10.125" L

1шт.

Spec. #P55WS49, P55FG50, P55FD51 & up

1шт.

28

H67272

PIN,25.3mm OD x 84.93mm L

PIN (1" x 3")

2шт.

29

H579227

CYLINDER

STEERING CYL ASM - See figure 30 for parts list

1шт.

29

H595173

CYLINDER BLOCK

STEERING CYL ASM - See figure 30 for parts list

1шт.

30

H219915

ADAPTER

- straight

1шт.

31

H754945

TEE (1" pipe - block)

1шт.

32

H219923

TUBE NUT

ADAPTER - straight

1шт.

33

H753970

BUSHING

(3/4" to 1" - pipe)

1шт.

34

H168831

ADAPTER

- straight

1шт.

35

H568568

TUBE - acc. vlv press 0.625" OD

1шт.

36

H568592

TUBE - acc. vlv return 0.625" OD x 9, 7.75" L

1шт.

37

H30742

ADAPTER

- straight

1шт.

38

H218321

TEE

1шт.

39

H167288

CAP

(7/8 JIC Fe)

2шт.

40

H568584

TUBE -acc. vlv return 0.625" OD x 3.5, 2.562" L

1шт.

41

H35386

ROD, CONNECTING

ADAPTER - straight

2шт.

42

H745174

O-RING

O RING

3шт.

44

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

(3/4 MP x 7/8 JIC M)

1шт.

48

H218446

HOSE ASSY.

HOSE (1/2 x 26) 7/8 JIC M end

1шт.

48

H213124

HOSE ASSY.

HOSE (1/2 x 32) 7/8 JIC M end

1шт.

Used W/Ford engines.

1шт.

49

H202168

HOSE ASSY.

HOSE (3/8 x 26) 3/4 JIC M end

1шт.

50

H568618

TUBE, hi-volumn pressure 0.625" OD

1шт.

50

H581025

TUBE, hi-volume pressure 0.625" OD

1шт.

Used W/Ford engines.

1шт.

51

H568642

TUBE,0.5" OD x 3.875, 10" L

low-volumn pressure

1шт.

51

H581033

TUBE - low-volumn pressure 0.5" OD

1шт.

Used W/Ford engines.

1шт.

52

H31674

ADAPTER

- 90 degrees

1шт.

53

H112573

ADAPTER

- straight

1шт.

54

H745166

O-RING

O RING

1шт.

55

H745182

O-RING

O RING

1шт.

56

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

ADAPTER - straight

1шт.

57

H569103

TUBE - return 1" OD x 6.5, 6.5" L

1шт.

58

H753384

ELBOW (3/4" x 90 degree pipe)

1шт.

59

H30650

NIPPLE, LUBE

SPECIAL NIPPLE

1шт.

60

H107698

CLAMP

HOSE CLAMP

2шт.

61

H105395

SUCTION HOSE (1 x 12)

1шт.

61

H176057

HOSE ASSY.

SUCTION HOSE (1 x 17-1/2)

1шт.

Used W/Ford engines.

1шт.

62

H218420

CYLINDER END CAP

FILTER CAP

1шт.

63

H164145

HOSE CLAMP

1шт.

64

H568949

CHAIN GUARD

1шт.

Case diesel and Ford diesel Part is H583047, also wooden guard H245753.

1шт.

68

H224428

SPECIAL NIPPLE (1-1/4)

2шт.

69

H216325

FILTER MTG BRACKET

1шт.

70

H220194

HOSE ASSY.

HOSE (1" x 30" - 1-5/16 JIC M - both ends w/cover)

1шт.

71

H568634

TUBE - return 1" OD x 13.75" L

1шт.

72

H579300

BRACKET

COMPRESSION BRKT ASM (Wisconsin engines)

1шт.

Order field service kit #H581785 when replacing compression bracket on models up to serial #70-55-3320.

1шт.

72

H579342

COMPRESSION BRKT ASM FOR ENGINES UP SPEC. #P55FG59, P55FD60

1шт.

Used W/Ford engines.

1шт.

73

H100438

BOLT

ADJUSTING BOLT (1" - 14 x 3 NF)

1шт.

74

H54395

AXLE PIN,9.47mm OD x 60.33mm L

CLEVIS PIN, bolt lock

1шт.

75

H749747

ELBOW

(1-1/4 x 90 degree - black)

2шт.

76

H749028

NIPPLE, LUBE

NIPPLE (1-1/4" all thread)

1шт.

77

H164145

HOSE CLAMP

2шт.

78

H218396

HOSE ASSY.

SUCTION HOSE (1-1/2 x 2-1/2)

1шт.

79

221-506

PIPE CLAMP

CROSS (1" pipe)

1шт.

80

H754952

BUSHING

(1-1/4 to 1 pipe)

1шт.

81

H754051

SPARE PART

NIPPLE (1" all thread)

1шт.

82

H754960

SPARE PART

PLUG (1" pipe)

1шт.

86

H561258

PUMP

PRIORITY FLOW PUMP ASM (See figure 30 for parts list)

1шт.

87

H746487

RING, SNAP

SNAP RING

2шт.

88

H25510

GEAR

PUMP DRIVE

1шт.

89

H238469

GASKET

GASKET - pump

1шт.

90

H753970

BUSHING

(3/4 to 1 black)

1шт.

91

H35147

KEY

(3/16" sq x 49/64)

1шт.

92

H224444

CLAMP - 1" tube

2шт.

93

H45468

CLAMP

- tube

2шт.

100

H709857

BOLT

HHCS (3/8 x 1 NC)

4шт.

101

H738013

LOCK NUT

NUT (3/8 NC - lock)

4шт.

104

H219675

PLATE

- clamp riser

2шт.

105

H217240

CLAMP PLATE

1шт.

106

H709485

BOLT

HHCS (5/16 x 1-3/4 NC)

2шт.

107

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

3шт.

108

H709535

BOLT

HHCS (5/16 x 3-1/4 NC)

1шт.

109

H710244

X

HHCS (7/16 x 1 NC)

2шт.

110

H746099

SEAL ASSY.

COPPER CRUSH WASHER (7/16)

2шт.

111

H33233

VALVE SPRING

SPRING

1шт.

112

H742395

ROLL PIN

COTTER PIN (1/4 x 1-1/2)

2шт.

113

H585489

LOCK VALVE

ACCESSARY VALVE ASM - See figure 30 for parts list

1шт.
