Запчасти Case L55 (22) - PROPULSION PUMP DRIVE

1

H577478

DIFF. SPIDER

U-JOINT - pump drive

1шт.

2

H245761

JOURNAL & BEARING KIT

2шт.

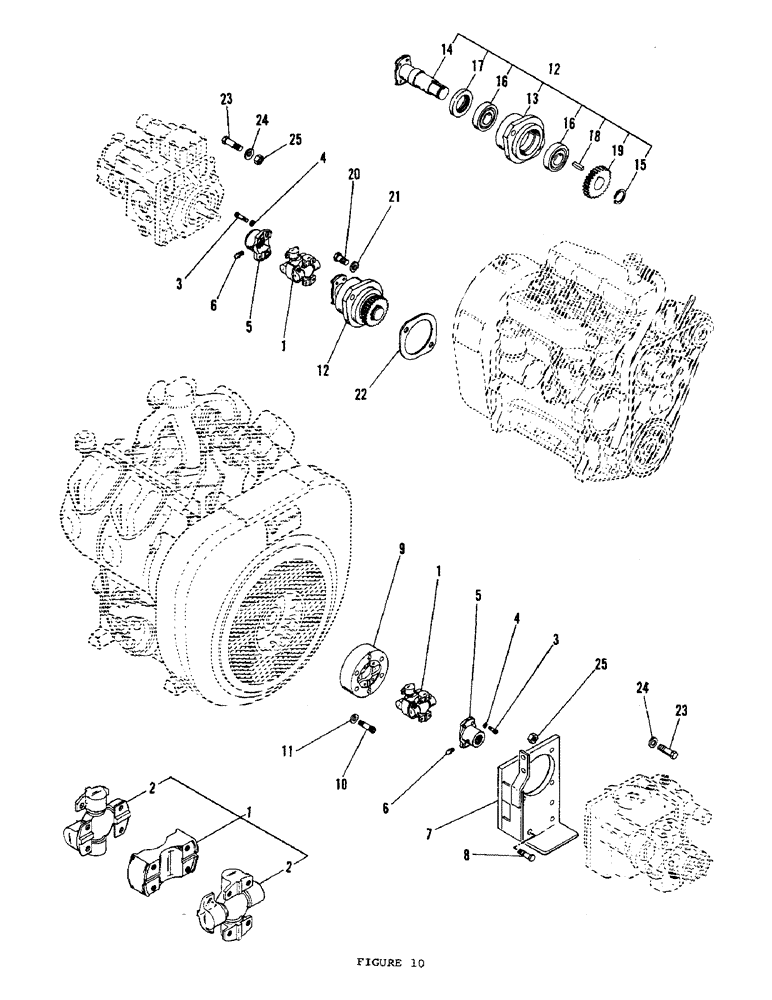

Refer to illustration Figure, Ref. 1, to the left is spider D73651(no threads) and to the right is spider D73649(no threads).

1шт.

3

H755421

CAPSCREW

AHCS (5/16 x 3/4 NF)

8шт.

4

H739201

WASHER

LOCK WASHER (5/16)

8шт.

5

H234823

YOKE

1шт.

6

H745299

FITTING

GREASE FITTING

1шт.

7

H567909

PUMP MOUNT, Wisconson engine only

1шт.

8

H711390

BOLT

HHCS (5/8 x 2 NC), Wisconson engine only

4шт.

9

H234831

DRIVE HUB, Wisconson engine only

1шт.

Another HUB ASSY. used (NOT A SUB) Part H577635, old version had a splined drive hub, new does not!!

1шт.

10

H753798

AHCS (1/2 x 1-1/2 NC), Wisconson engine only

6шт.

11

H739235

WASHER

LOCK WASHER (1/2), Wisconson engine only

6шт.

12

H580472

BEARING HOUSING & SHAFT ASM, Ford engine only

1шт.

13

H303032

BEARING HOUSING, Ford engine only

1шт.

14

H578161

SHAFT

Ford engine only

1шт.

15

H746552

RING

SNAP RING, Ford engine only

1шт.

16

H751081

BEARING

Ford engine only

2шт.

17

H755470

OIL RESERVOIR

OIL SEAL, Ford engine only

1шт.

18

H182105

KEY

(3/8 sq x 1-1/4), Ford engine only

1шт.

19

H237081

GEAR WHEEL

DRIVE GEAR, Ford engine only

1шт.

20

H710632

BOLT

HHCS (1/2 x 1-1/4" NC), Ford engine only

2шт.

21

H746107

GASKET

COPPER CRUSH WASHER (1/2), Ford engine only

2шт.

22

H238303

GASKET

GASKET, Ford engine only

1шт.

23

H711036

BOLT

HHCS (9/16 x 2 NC) pump mounting

4шт.

24

H738492

HARDWARE

FLAT WASHER (9/16)

4шт.

25

H738047

NUT (9/16 NC - lock)

4шт.
