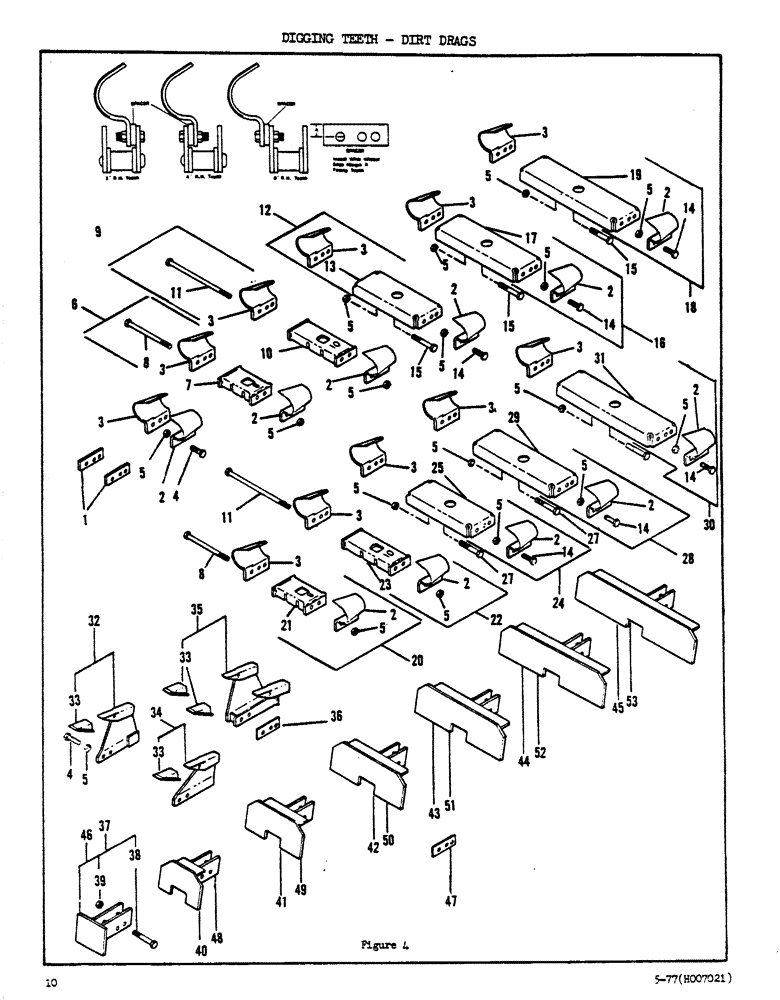

Запчасти Case DAVIS (10) - DIGGING TEETH, DIRT DRAGS

1

H208355

SPACER

- Tooth, for 3" 4" and 6" teeth

1шт.

2

H208363

TOOTH

- Left

1шт.

Part of Ref. 6, 9, 12, 16, 18, 20, 22, 24, 28 and 30.

1шт.

3

H208371

TOOTH

- Right

1шт.

Part of Ref. 6, 9, 12, 16, 18, 20, 22, 24, 28, 30, 40 and 41.

1шт.

4

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

HHCS (3/8 x 1 1/4 NF - Grade 8)

8шт.

Part of Ref. 32, 34 and 35.

1шт.

5

131-1133

NUT,3/8"-24, GC

Nut (3/8 NF Hex - Lock)

1шт.

Part of Ref. 6, 9, 12, 16, 18, 20, 22, 24, 28, 30, 32, 34 and 35.

1шт.

6

H539445

TOOTH

- 8", Includes: Ref. 2, 3 and (2) Ref. 5

1шт.

For use with standard digging chain only.

1шт.

7

H135129

TOOTH

Bracket - 8" Tooth

1шт.

8

114-256

BOLT,Hex, 3/8" - 24 x 5-1/4", Gr 8

HHCS (3/8 x 5 1/4 - NF Grade 8)

2шт.

Part of Ref. 40, 41

1шт.

9

H539452

TOOTH

- 10", Includes: Ref. 2, 3 and (2) Ref. 5

1шт.

For use with standard digging chain only.

1шт.

10

H135137

CASTING

Bracket - 10" Tooth

1шт.

11

114-257

BOLT,Hex, 3/8" - 24 x 7-1/4", Gr 8

HHCS (3/8 x 7 1/4 NF - Grade 8)

2шт.

12

H539460

Tooth - 12", Includes: Ref. 2, 3 and (6) Ref. 5

1шт.

13

H538967

CASTING

Bracket - 12" Tooth

1шт.

14

114-251

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

HHCS (3/8 x 7/8 NF - Grade 8)

4шт.

Part of Ref. 14, 18, 22, 24, 28, and 30.

1шт.

15

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS (3/8 x 2 1/2 NF - Grade 8)

2шт.

16

H539478

Tooth - 14", Includes: Ref. 2, 3 and (4) Ref. 5 and 14

1шт.

For use with standard digging chain only.

1шт.

The phantom shaft shown in the upper right-hand corner of the illustration is P/N H363994.

1шт.

Used with a 16" casting shaft only.

1шт.

17

H538975

BRACKET

- 14" Tooth

1шт.

18

H539486

Tooth - 16", Includes: Ref. 2, 3 and (4) Ref. 5 and 14

1шт.

For use with standard digging chain only.

1шт.

The phantom shaft shown in the upper right-hand corner of the illustration is P/N H363994.

1шт.

Used with a 16" casting shaft only.

1шт.

19

H538983

BRACKET

- 16" Tooth

1шт.

20

H564591

Tooth - 8", Includes: Ref. 2, 3 and (2) Ref. 5 and 8

1шт.

For use with heavy duty digging chain only.

1шт.

21

H208439

BRACKET

- 14" Tooth

1шт.

22

H564609

KIT

Tooth - 10", Includes: Ref. 2, 3 and (2) Ref. 5 and 14

1шт.

For use with heavy duty digging chain only.

1шт.

23

H208447

BRACKET

- 10" Tooth

1шт.

24

H564757

Tooth - 12", Includes: Ref. 2, 3 and (4) Ref. 5 and 14

1шт.

For use with heavy duty digging chain only.

1шт.

25

H564781

BRACKET

- 12" Tooth

1шт.

27

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS (3/8 x 2 1/2 NF - Grade 8)

1шт.

28

H564765

KIT

Tooth - 14", Includes: Ref. 2, 3 and (4) Ref. 5 and 14

1шт.

For use with heavy duty digging chain only.

1шт.

Used with a 16" casting shaft only.

1шт.

29

H564799

BRACKET

- 14" Tooth

1шт.

30

H564773

TOOTH

- 16", Includes: Ref. 2, 3 and (4) Ref. 5 and 14

1шт.

For use with heavy duty digging chain only.

1шт.

31

H564807

BRACKET

- 16" Tooth

1шт.

32

H546911

SPARE PART

Ripper Tooth - Center Right, Includes: (2) Ref. 4 and 5

1шт.

33

H34546

TOOTH

Point - Ripper Tooth

1шт.

34

H546903

KIT

Ripper Tooth - Center - Left, Includes: Ref. 33 and (2) Ref. 4 and 5

1шт.

35

H570176

KIT

Ripper Tooth - 6", Includes: (2) Ref. 4, 5 and 33

1шт.

36

H220640

SHIM

1шт.

For use with heavy duty digging chain only.

1шт.

37

H502864

Dirt Drag - 3", use H502419 plus necessary hardware

1шт.

For use with heavy duty digging chain only.

1шт.

38

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS (3/8 x 2 1/2 NF - Grade 8)

2шт.

Part of Ref. 42, 43, 44, 45, 46, 48, 49, 50, 51, 52 and 53.

1шт.

39

131-1133

NUT,3/8"-24, GC

Nut (3/8 NF Hex - Lock)

2шт.

Part of Ref. 40, 41, 42, 43, 44, 45, 46, 48, 49, 50, 51, 52 and 53.

1шт.

40

H510032

Dirt Drag - 5", Includes: Ref. 3, 8 and 39

1шт.

For use with standard digging chain only.

1шт.

41

H509109

X

Dirt Drag - 7", Includes: Ref. 3, 8 and 39

1шт.

For use with standard digging chain only.

1шт.

42

H509596

Dirt Drag - 9", Includes: Ref. 38 and 39

1шт.

For use with standard digging chain only.

1шт.

43

H509117

LINK

Dirt Drag - 11", Includes: Ref. 38 and 39

1шт.

For use with standard digging chain only.

1шт.

44

H509612

Dirt Drag - 13", Includes: Ref. 38 and 39

1шт.

For use with standard digging chain only.

1шт.

45

H509638

KIT

Dirt Drag - 15", Includes: Ref. 38 and 39

1шт.

For use with standard digging chain only.

1шт.

46

H577304

LINK

Dirt Drag - 3", Includes: Ref. 38 and 39

1шт.

For use with heavy duty digging chain only.

1шт.

47

H220640

SHIM

1шт.

For use with heavy duty digging chain only.

1шт.

Part of Ref. 48, 49, 50, 51, 52 and 53.

1шт.

48

H597724

LINK

Dirt Drag - 5", Includes: Ref. 38, 39 and 47

1шт.

For use with heavy duty digging chain only.

1шт.

49

H597708

Dirt Drag - 7", Includes: Ref. 38, 39 and 47

1шт.

For use with heavy duty digging chain only.

1шт.

50

H597732

Dirt drag - 9", Includes: Ref. 38, 39 and 47

1шт.

For use with heavy duty digging chain only.

1шт.

51

H597716

Dirt Drag - 11", Includes: Ref. 38, 39 and 47

1шт.

For use with heavy duty digging chain only.

1шт.

52

H597740

LINK

Dirt Drag - 13", Includes: Ref. 38, 39 and 47

1шт.

For use with heavy duty digging chain only.

1шт.

53

H597757

Dirt Drag - 15", Includes: Ref. 38, 39 and 47

1шт.

For use with heavy duty digging chain only.

1шт.
