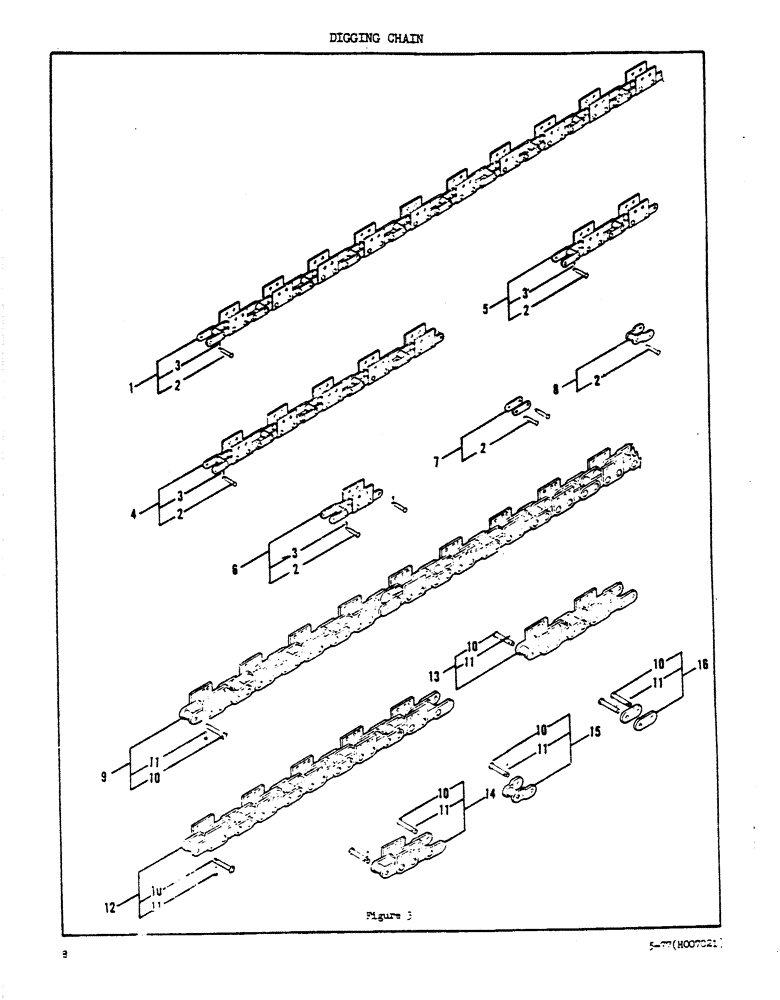

Запчасти Case DAVIS (08) - DIGGING CHAIN

1

H501791

CHAIN (CE)

Digging Chain - Standard - 56 Pitches

1шт.

2

H30072

CONNECTOR, ELEC

Pin - Connector

1шт.

H30072 is a D-shaped pin for a rex chain. If you are looking for the round pin for the ballantine chain, you can order P/N 253215A1.

1шт.

3

H85274

SPLIT PIN/SAFETY PIN

Pin - Keeper (132-334 - 1/8 x 3/4 Cotter Pin May Be Used As Alternate)

1шт.

4

H501809

CHAIN (AG)

Digging Chain - Standard - 20 Pitches (also Includes Items 2 & 3)

1шт.

5

H519462

CHAIN (AG)

Digging Chain - Standard - 8 Pitches - Used W/45" Boom Only (Also Includes Items 2 & 3)

1шт.

6

H502054

CHAIN (CE)

Repair Section - Standard (Also Includes 2 Each Item 2 & 3)

1шт.

7

H504068

DRAG LINK

Connector Link - Standard (Also Includes 2 Each Item 2 & 3)

1шт.

8

H59360

HALF-LINK

Half Link - Standard (Also Includes 2 Each Items 2 & 3)

1шт.

9

H564617

CHAIN (CE)

Digging Chain - Heavy Duty - 56 Pitches

1шт.

10

H208454

AXLE PIN

Pin - Connector

1шт.

11

H85274

SPLIT PIN/SAFETY PIN

Pin - Keeper (132-334 - 1/8 x 3/4 Cotter Pin May Be Used As Alternate)

1шт.

12

H564625

CHAIN (CE)

Digging Chain - Heavy Duty - 20 Pitches (Also Includes Items 10 & 11)

1шт.

13

H564823

CHAIN (AG)

Digging Chain - Heavy Duty - 8 Pitches - Used W/45" Boom Only (Also Includes Item 10 & 11)

1шт.

14

H564633

KIT

Repair Section - Heavy Duty (Also Includes Items 10 & 11)

1шт.

15

H208462

DRAG LINK

Half Link - Heavy Duty (Also Includes Items 10 & 11)

1шт.

16

H564815

DRAG LINK

Connector Link - Heavy Duty (Also Includes 2 Each Items 10 & 11)

1шт.

257351A1

PIN

.750 x 3.656, for ballantine chain 260 and 325

1шт.

257350A1

PIN

.565 x 2.718, for ballantine chain 260 and 325

1шт.
