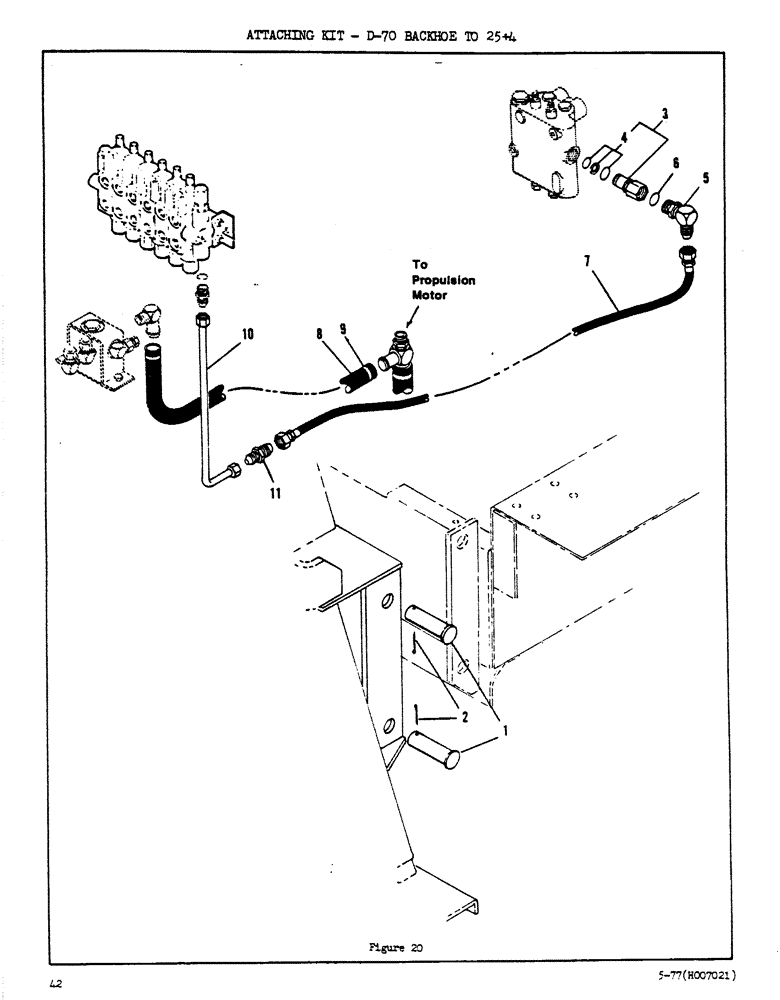

Запчасти Case DAVIS (42) - ATTACHING KIT, D-70 BACKHOE TO 25+4

1

H43711

Pin (1" x 3 5/8" - Clevis)

4шт.

2

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

3

D61608

SLEEVE

Adapter - Pressure Beyond

1шт.

4

H587345

SEAL ASSY.

Seal Kit - Adapter

1шт.

5

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 Degree (7/8" ORB x 3/4" JIC M)

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O Ring

1шт.

7

D51686

HOSE

(3/8" x 54" - 3/4" JIC Fe Swv Ends)

1шт.

8

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

0.75" ID x 27.00", SAE 30R2 Type 2

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Clamp - Hose

2шт.

10

H629618

TUBE,0.375" OD x 9, 2.25" L

(3/8" OD)

1шт.

11

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

Connector (9/16" JIC M x 3/4" JIC M)

1шт.
