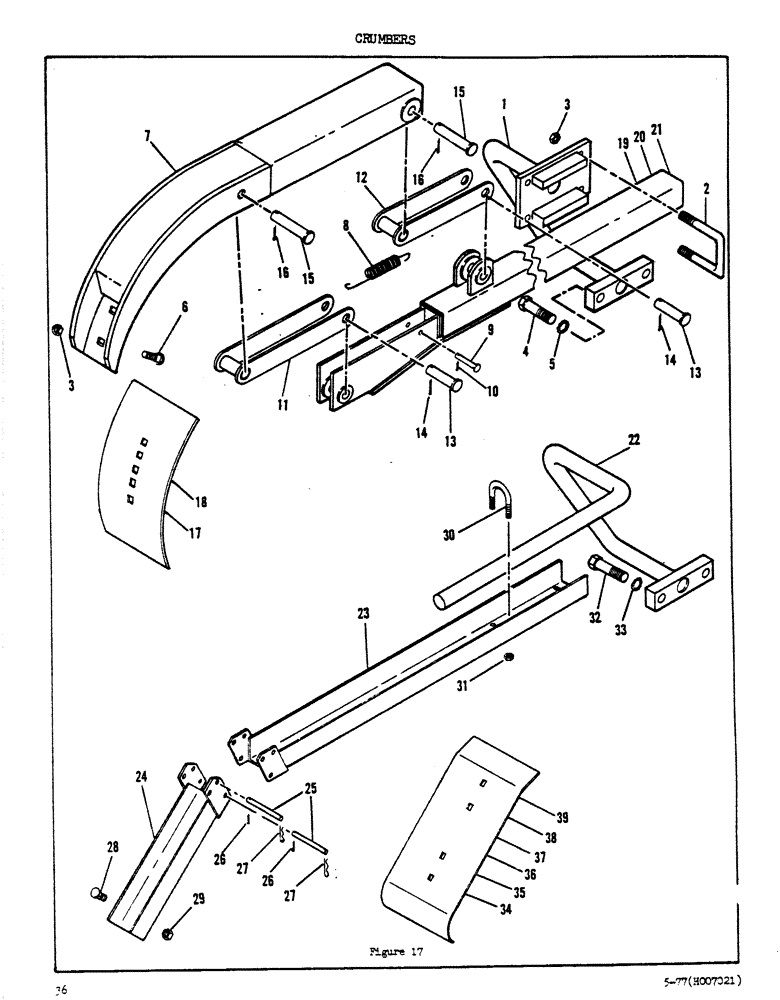

Запчасти Case DAVIS (36) - CRUMBERS

1

H607986

ARM

Crumber Mounting Bracket (For 40", 45", 54" & 66" Booms)

1шт.

2

H54312

BOLT

U Bolt

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2 NC Hex - Lock)

4шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

HHCS (3/4 x 2 3/4 NC)

2шт.

5

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

6

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

Bolt (1/2 x 1 1/4 NC - Carriage)

2шт.

7

H536656

BRACKET

Blade Mounting Bracket

1шт.

8

H128280

VALVE SPRING

Spring

1шт.

9

H54395

AXLE PIN,9.47mm OD x 60.33mm L

Pin (3/8 x 2 1/4 Clevis)

1шт.

10

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11

H532440

DRAG LINK

Link - Long

1шт.

12

H536664

DRAG LINK

Link - Short

1шт.

13

H54320

AXLE PIN,19.05mm OD x 79.38mm L

Pin (3/4 x 2 7/8 Clevis)

2шт.

14

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

15

H118109

AXLE PIN,19.05mm OD x 92.08mm L

Pin (3/4 x 3 5/8 Clevis)

2шт.

16

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

17

H127480

BLADE

- 5" For 6" Trench

1шт.

18

H60103

BLADE

- 9" for 10" Trench

1шт.

19

H542894

BOOM

Outer Boom (40" Depth Trench)

1шт.

20

H542902

BOOM

Outer Boom (45" Depth Trench)

1шт.

21

H538553

BOOM

Outer Boom (54" & 66" Depth Trench)

1шт.

22

H502971

BAR

Crumber Mounting Bracket (For 26" Booms)

1шт.

23

H502989

CHANNEL

Crumber Channel - Long (For 26" Booms)

1шт.

24

H502997

CHANNEL

Crumber Channel - Short (For 26" Booms)

1шт.

25

H41731

AXLE PIN

Pin - Crumber Hinge

2шт.

26

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

27

A70250

PIN

- Hair

2шт.

28

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

2шт.

29

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2 NC Hex Lock)

2шт.

30

H33316

U-BOLT

U Bolt

2шт.

31

230-4216

LOCK NUT,3/8"-16, GA

Nut (3/8 NC Hex - Lock)

4шт.

32

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

HHCS (1/2 x 2 3/4 NC)

2шт.

33

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

34

H32813

BLADE

- 5" For 6" Trench

1шт.

35

H32821

BLADE

- 7" For 8" Trench

1шт.

36

H32839

BLADE

- 9" For 10" Trench

1шт.

37

H32847

BLADE

- 11" For 12" Trench

1шт.

38

H41780

BLADE

- 13" For 14" Trench

1шт.

39

H41798

BLADE

- 15" For 16" Trench

1шт.
