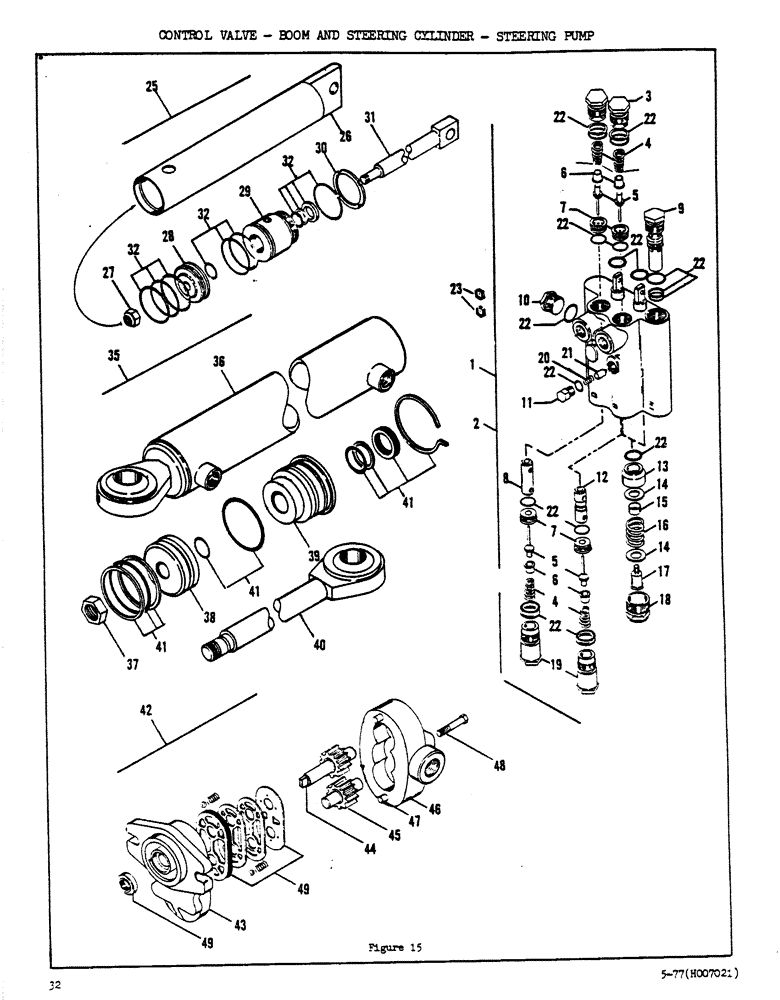

Запчасти Case DAVIS (32) - CONTROL VALVE, BOOM AND STEERING CYLINDER, STEERING PUMP

1

H550079

LOCK VALVE

Boom & Steering Control Valve Assy (Includes Item 3 Thru 22 Except As Noted)

1шт.

2

H553818

VALVE

Backfill Blade Control Valve Assy (Includes Item 3 Thru 22 Except As Noted)

1шт.

3

F35197

PLUG

Assy (Includes O Rings)

2шт.

4

F35198

VALVE SPRING

Spring - Lockout

4шт.

5

F88777

PLUNGER

Poppet (Also Included In Seal Repair Kit)

4шт.

Use with H553818 backfill blade control valve only.

1шт.

5

F88777

PLUNGER

Poppet (Also Included In Seal Repair Kit)

4шт.

Use with H550079 boom and steering pump only.

1шт.

6

H266684

AXLE PIN

Eyelet (Also Included In Seal Repair Kit)

4шт.

Use with H550079 boom and steering pump only.

1шт.

7

F37884

SEAT

(Includes O Rings)

4шт.

8

F8229

PLUNGER

- Lockout

1шт.

9

H102053

VALVE

Relief Valve - 2500 PSI (Includes O Rings)

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

11

H142141

PLUG

Assy (Includes O Rings)

1шт.

12

H142133

PLUNGER

- Lockout - Float

1шт.

13

T39069

BUSHING

2шт.

14

F8235

WASHER

4шт.

15

F37885

SPACER

- Spool

2шт.

16

F14091

VALVE SPRING

Spring

2шт.

17

F37886

SCREW

- Spool

1шт.

18

F35196

CAP

Assy (Includes O RIngs)

2шт.

19

H172601

PLUG

Assy (Includes O Rings)

2шт.

20

H142166

VALVE SPRING

Spring - Detent

1шт.

Use with H553818 backfill blade control valve only.

1шт.

21

H104992

PAWL

- Detent

1шт.

Use with H553818 backfill blade control valve only.

1шт.

22

H172643

SEAL ASSY.

Seal Repair Kit

1шт.

23

H746875

SCREW

Orifice Plate - .043 Orifice

2шт.

25

H504076

CYLINDER BLOCK

Boom & Backfill Cylinder Assy

3шт.

26

H72215

SLEEVE CYLINDER

Barrel

1шт.

27

131-172

LOCK NUT,3/4"-16, GA

Nut - Piston Retaining

1шт.

28

H32540

PISTON

1шт.

29

H70078

BEARING

1шт.

30

T22283

NUT

Bearing Nut

1шт.

31

H66571

ROD

Piston Rod

1шт.

32

H507350

GASKET KIT

Seal Repair Kit

1шт.

35

H621367

CYLINDER BLOCK

Steering Cylinder Assy

1шт.

36

H630160

CYLINDER

Barrel Assy

1шт.

37

230-46112

LOCK NUT,3/4"-16, GA

Nut - Piston Retaining

1шт.

38

H347757

PISTON

1шт.

39

H347765

GLAND

1шт.

40

H630178

ROD

Piston Rod Assy

1шт.

41

H630186

GASKET KIT

Seal Repair Kit

1шт.

42

H621102

PUMP

Steering Pump Assy

1шт.

43

H631291

PLATE ASSY.

Front Plate Assy

1шт.

44

H631317

GEAR WHEEL

Drive Gear Assy

1шт.

45

H631325

GEAR WHEEL

Idler Gear Assy

1шт.

46

H631309

HOUSING ASSY.

Housing Assy

1шт.

47

H754580

DOWEL

Pin

2шт.

48

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

49

H582890

SEAL ASSY.

Seal Repair Kit

1шт.
