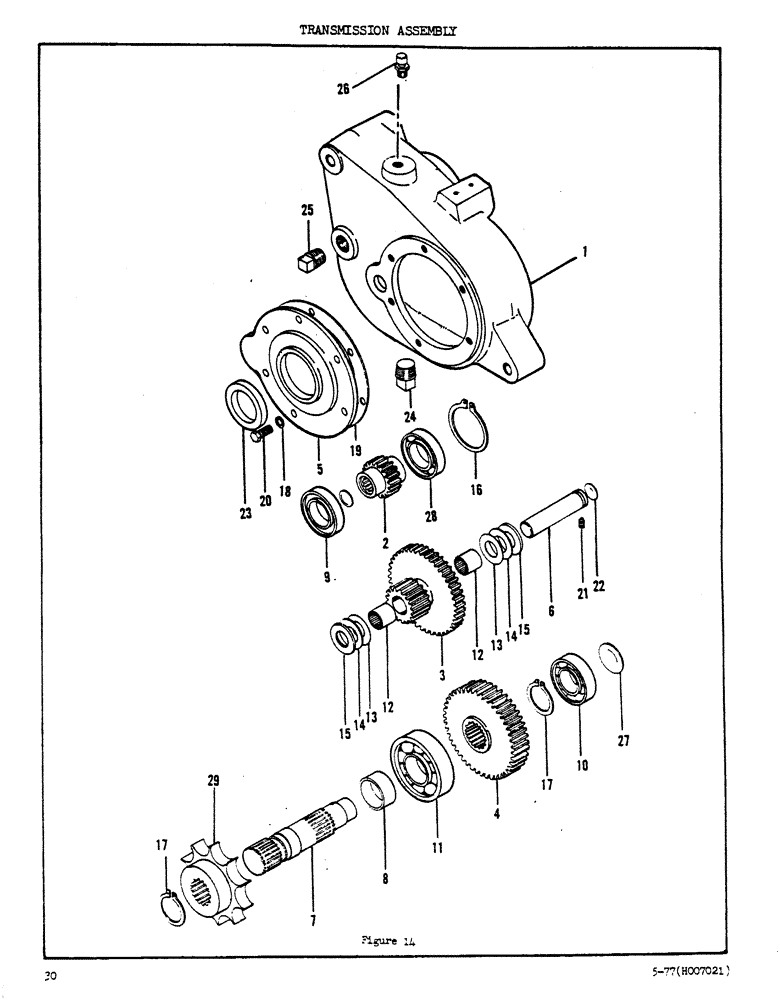

Запчасти Case DAVIS (30) - TRANSMISSION ASSEMBLY

H620724

TRANSMISSION

Assy

1шт.

1

H256750

CASE

- Transmission

1шт.

2

H325936

GEAR

Input Drive Gear

1шт.

3

H189597

GEAR WHEEL

Cluster Gear

1шт.

4

H189647

GEAR WHEEL

Output Gear

1шт.

5

H189134

CAP

Bearing Cap

1шт.

6

H189639

SHAFT

1шт.

7

H189605

SHAFT

Output Shaft

1шт.

8

H189654

SLEEVE CYLINDER

Wear Sleeve

1шт.

9

H753103

BALL BEARING

1шт.

10

H752501

BALL BEARING

1шт.

11

H753095

BALL BEARING

1шт.

12

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

2шт.

13

H199596

SPACER

(.030)

1шт.

14

H199604

SPACER

(.060)

1шт.

15

H189662

SPACER

(.125)

1шт.

16

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

17

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

18

H753467

RING

Gasket

6шт.

19

H189712

GASKET

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

21

178-76

Set Screw (1/4 x 3/8 NC)

1шт.

22

41-41

PLUG,Exp, 2 9/16"

Soft Plug

2шт.

23

NLS

NO LONGER SERVICED

Grease Seal

1шт.

24

221-47

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Plug (3/4 Pipe)

1шт.

25

221-1048

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

Plug (1 1/2 Pipe)

1шт.

26

H58826

BREATHER

Air Breather

1шт.

27

41-27

PLUG,Exp, 1 11/16"

Soft Plug

1шт.

28

38742

BALL BEARING

1шт.

29

H326330

DRIVE SPROCKET

Sprocket - Output

1шт.
