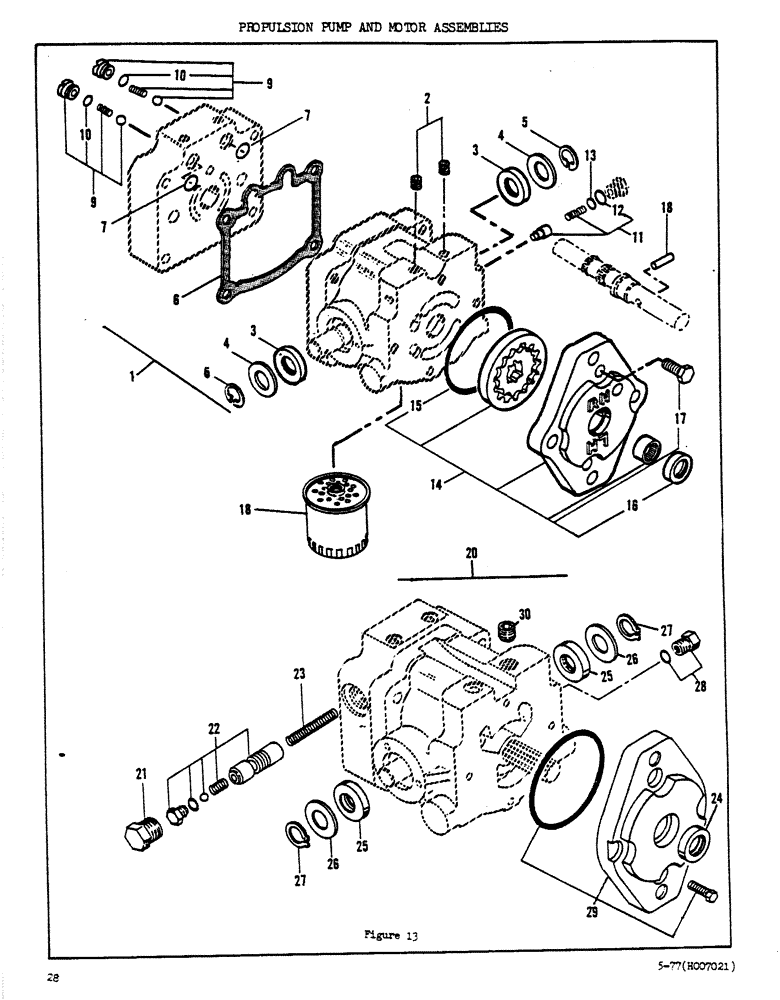

Запчасти Case DAVIS (28) - PROPULSION PUMP AND MOTOR ASSEMBLIES

1

H621094

PUMP

Propulsion Pump Assy

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

(1/8-27 Socket HD - Pipe)

4шт.

3

H755884

SEAL

Shaft Seal

2шт.

4

H249599

WASHER

(replaces H249594 )

2шт.

This part is interchangeable with P/N 398574R2.

1шт.

5

A27521

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

2шт.

6

H255059

GASKET

1шт.

7

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O Ring

2шт.

9

H591537

KIT

Check Valve Kit

2шт.

11

H620815

Change Relief Valve Kit

1шт.

13

D63406

SHIM

Pack

1шт.

14

H619858

KIT

Change Pump Kit (Includes item 18)

1шт.

15

H756650

O-RING

O Ring

1шт.

16

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

Shaft Seal

1шт.

17

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

18

N7060

AXLE PIN

Element - Filter, Replaces H334540

1шт.

The phantom shaft shown in the upper right-hand corner of the illustration is P/N H363994.

1шт.

20

H608364

MOTOR HOUSING

Propulsion Moter Assy

1шт.

21

H60525

PLUG

(Includes O Ring)

2шт.

One side shown. The other side is identical.

1шт.

22

H584276

VALVE

Acceleration Valve Assy

2шт.

One side shown. The other side is identical.

1шт.

23

H249607

SPRING

2шт.

One side shown. The other side is identical.

1шт.

24

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

Output Shaft Seal

1шт.

Included in front plate kit H606798.

1шт.

25

H755884

SEAL

Shaft Seal

2шт.

26

H249599

WASHER

2шт.

27

A27521

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

2шт.

28

H606806

Plug (Includes O Ring)

1шт.

29

H606798

KIT

Front Plate Kit

1шт.

30

221-849

PLUG,Hex Soc, 1/8"-27

(1/8-27 Socket Hd - Pipe)

4шт.

10

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

12

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
