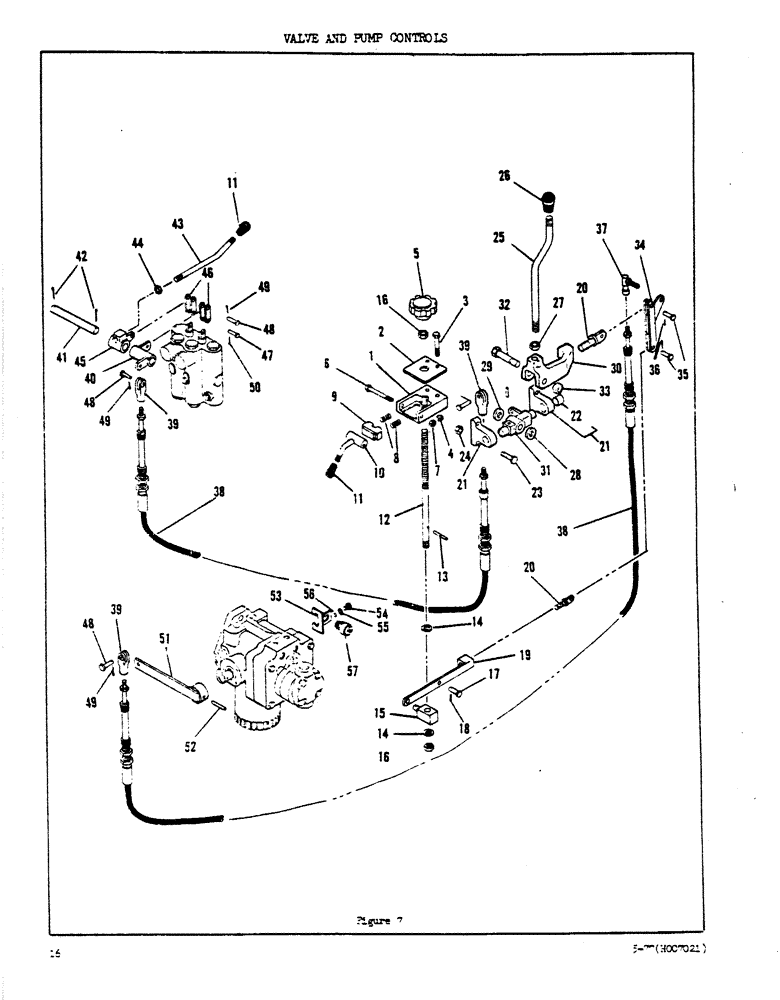

Запчасти Case DAVIS (16) - VALVE AND PUMP CONTROLS

1

H608885

CONTROL BLOCK

Base - Control

1шт.

2

H233767

COVER ASSY

Plate - Cover

1шт.

3

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16" NC Hex - Lock)

2шт.

5

H239004

KNOB

- Control

1шт.

6

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

HHCS (1/4" x 2 3/4" NC)

1шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

8

H253864

VALVE SPRING

Spring

2шт.

9

H608877

BLOCK

Half Nut

1шт.

10

H618504

CAM

Asm

1шт.

11

A14051

GRIP

Knob

2шт.

12

H255158

CONTROL BLOCK

Shaft - Control

1шт.

13

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

14

195-533

WASHER,1/2", SAE

2шт.

15

H255141

BLOCK

- Control

1шт.

16

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2" NC Hex - Lock)

2шт.

17

H44289

CLEVIS COUPLING

Pin (5/16" x 57/64" - Clevis)

1шт.

18

132-340

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

19

H588798

LINK

Asm

1шт.

20

H217109

BOLT

Bolt - Eye

2шт.

21

H558411

BEARING

Bushing Asm - Shaft Mtg

2шт.

22

H151894

BUSHING

1шт.

23

113-100

HHCS (5/16" x 1 1/4" NC)

4шт.

24

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16" NC Hex - Lock)

4шт.

25

H293084

HANDLE

- Control

1шт.

26

H182113

KNOB

1шт.

27

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

28

H256305

WASHER

- Friction (.062)

1шт.

29

H182097

WASHER

- Friction (.125)

1шт.

30

H181982

CASTING

- Forward and Reverse

1шт.

31

H181974

SHAFT

Casting - Steering Control

1шт.

32

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS (1/2" x 2 1/2" NC)

1шт.

33

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2" NC Hex - Lock)

1шт.

34

H587352

CONTROL

Asm

1шт.

35

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

Pin (1/4" x 51/64" Clevis)

2шт.

36

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

37

H169920

BALL JOINT

1шт.

38

H556290

CONTROL

Cable - Control

2шт.

39

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

Clevis

2шт.

40

H621847

LINKAGE

- Valve Control

1шт.

41

H328872

AXLE PIN

Pin (5/8" x 5 1/8" - Hdls.)

1шт.

42

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

2шт.

43

H182063

HANDLE

Lever - Boom Control

1шт.

44

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

45

H275263

LEVER

1шт.

46

H185066

DRAG LINK

Link - Valve

4шт.

47

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16" x 57/64" - Clevis)

2шт.

48

D23693

AXLE PIN

Pin (1/4" x 1" - Clevis)

2шт.

49

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

50

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

51

H623777

PUMP

Asm - Handle

1шт.

52

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

53

H329755

SUPPORT

Bracket - Neutral Switch

1шт.

54

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

55

195-521

WASHER,5/16", SAE

(5/16" - Flat)

2шт.

56

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

57

A55882

SOLENOID SWITCH

Switch - Neutral Start

1шт.

A55882 thread size is 3/4-16 thd. Per serial no. breakpart number, A160237 is 9/16-18 UNF-2A thread.

1шт.
