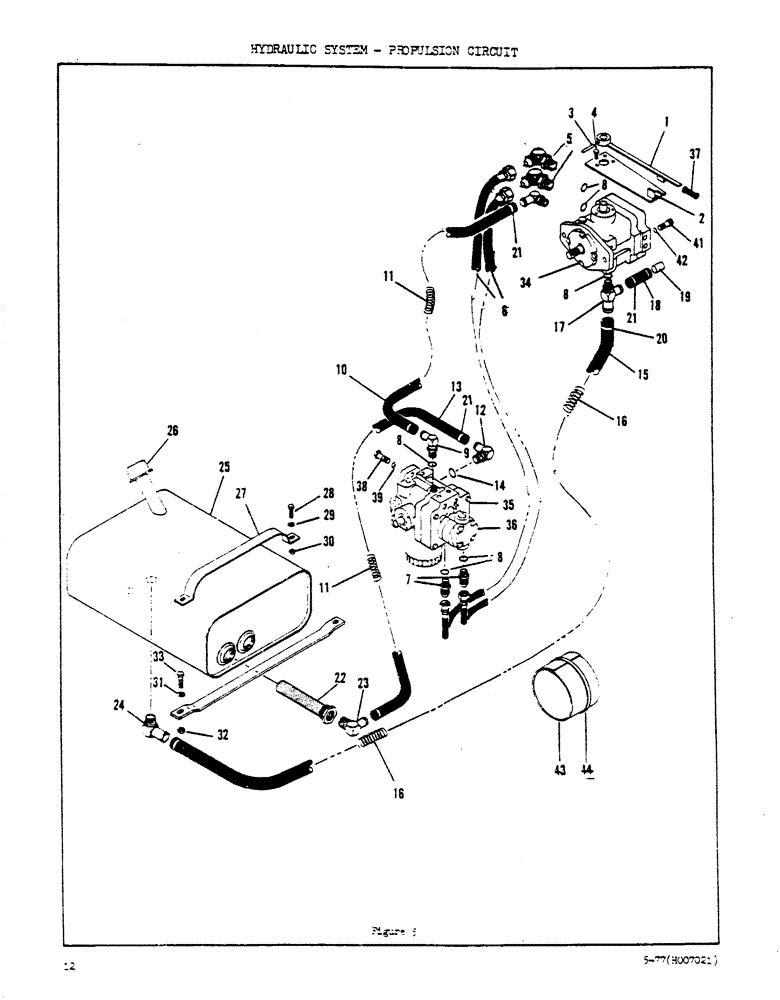

Запчасти Case DAVIS (12) - HYDRAULIC SYSTEM, PROPULSION CIRCUIT

1

H608752

LEVER

Motor Shift Lever

1шт.

2

H608760

SHAFT

Bracket - Shift Lever (replaces H298729)

1шт.

3

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

5

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 Degree (3/4 ORB x 3/4 JIC Fe Sw)

2шт.

6

D47402

HOSE ASSY.

Hose (1/2 x 73 - 7/8 JIC Fe Sw)

2шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., (3/4" ORB x 7/8" JIC M)

2шт.

9

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

Elbow - 90 Degree (3/4" ORB x 3/4" Hose)

2шт.

10

H312520

HOSE

(3/4" x 52")

1шт.

11

H309906

SPRING

- Hose

4шт.

12

H343996

ELBOW UNION

Elbow - 90 Degree (7/8" ORB x 3/4" Hose)

1шт.

13

H307777

HOSE ASSY.

Hose (3/4" x 20")

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O Ring

1шт.

15

H307926

HOSE ASSY.

Hose (1" x 62")

1шт.

16

H216994

VALVE SPRING

Spring - Hose

1шт.

17

H330902

Tee (3/4" ORB x 3/4" Hose x 1" Hose)

1шт.

18

A9156

HOSE,0.75" ID x 4.50"

1шт.

19

H269449

PLUG

- Hose

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Clamp - Hose

2шт.

21

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Clamp - Hose

6шт.

22

H151399

FILTER STRAINER

Filter - Screen

1шт.

23

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

Elbow - 90 Degree (1" M P x 3/4" Hose)

1шт.

24

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 Degree (1" M P x 1" Hose)

1шт.

25

H620518

Reservoir - oil

1шт.

26

H271841

CYLINDER END CAP

Cap and Dip Stick

1шт.

27

H330167

STRAP

- Reservoir

1шт.

28

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

29

195-521

WASHER,5/16", SAE

(5/16" - Flat)

2шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16" NC Hex - Lock)

2шт.

31

195-525

WASHER,3/8", SAE

4шт.

32

230-4216

LOCK NUT,3/8"-16, GA

Nut (3/8" NC Hex - Lock)

4шт.

33

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

34

H608364

MOTOR HOUSING

Propulsion Motor Asm (See figure 28 )

1шт.

35

H621094

PUMP

Propulsion Pump Asm (See Figure 28 )

1шт.

36

H621102

PUMP

Boom and Steer pump Asm (See Figure 32 )

1шт.

37

H195701

HANDLE

Grip - Hand

1шт.

38

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

HHCS (5/8" x 1 1/2" NC)

2шт.

39

195-25

WASHER,3/8"

(5/8" - Lock)

2шт.

41

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

HHCS (1/2" x 1 1/4" NC)

2шт.

42

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

43

H31195

PLATE

Flap - Hose Guard

1шт.

44

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

Clamp - Guard

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O Ring

6шт.
