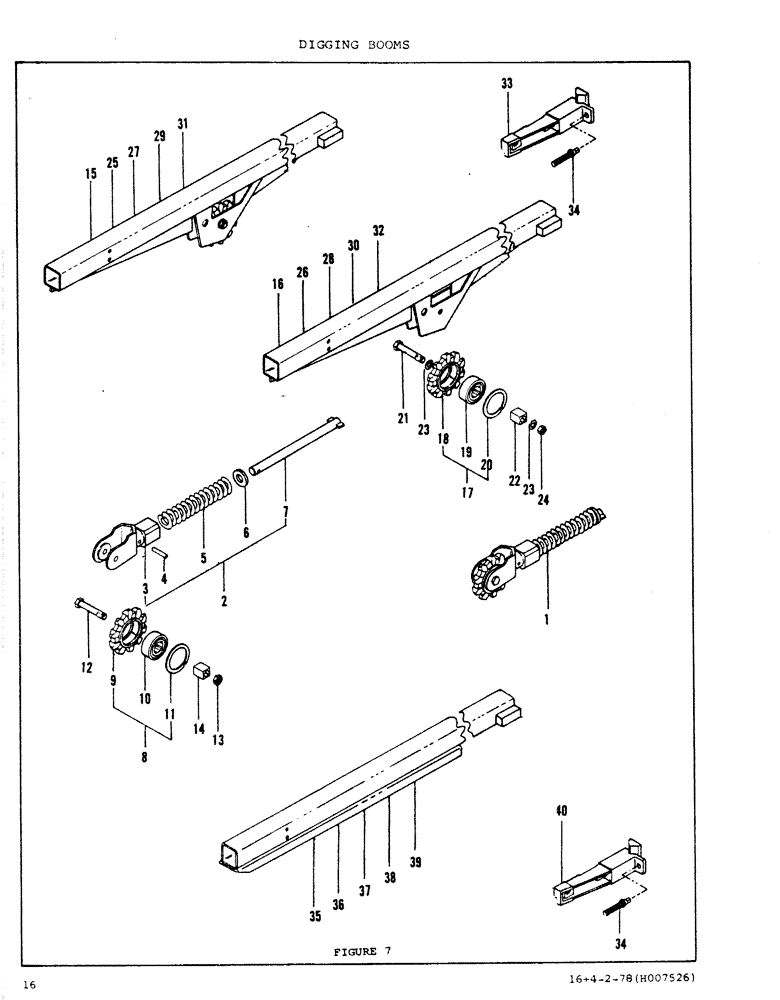

Запчасти Case DAVIS (16) - DIGGING BOOMS

1

H509828

BOOM

End & Sprocket Asm

1шт.

2

H509836

BOOM

Outer Casting & Spring Asm

1шт.

3

H33829

BRACKET

Outer Casting

1шт.

4

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

5

H56713

VALVE SPRING

Spring - Boom End

1шт.

6

H34199

WASHER

- Spring Stop

1шт.

7

H509349

TUBE

Guide - Spring

1шт.

8

H503664

SPROCKET ASSY.

Sprocket & Bearing Asm

1шт.

9

H33563

DRIVE SPROCKET

Sprocket - Idler

1шт.

10

H747139

BALL BEARING

Bearing

1шт.

11

H33563

DRIVE SPROCKET

Snap Ring

1шт.

12

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

13

131-1130

LOCK NUT,5/8"-11, GA

Nut (5/8 NC Hex - Lock)

1шт.

14

H232645

BUSHING

Shaft - Sprocket

1шт.

15

H560904

BOOM

26"Boom & Sprocket Asm

1шт.

16

H560565

BOOM

26" Boom Weld Asm

1шт.

17

H503664

SPROCKET ASSY.

Sprocket & Bearing Asm

1шт.

18

H33563

DRIVE SPROCKET

Sprocket - Idler

1шт.

19

H747139

BALL BEARING

Bearing

1шт.

20

H33837

RING

Snap Ring

1шт.

21

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

22

H232645

BUSHING

Shaft

1шт.

23

195-108

WASHER,5/8"

(5/8 - Flat)

2шт.

24

131-1130

LOCK NUT,5/8"-11, GA

Nut (5/8 NC Hex -Lock)

1шт.

25

H560912

BOOM

40" Boom & Sprocket Asm (Includes item 17 & 21 thru 24)

1шт.

26

H560573

BOOM

40" Boom Weld Asm

1шт.

27

H560946

BOOM

45" Boom & Sprocket Asm (Includes Item 17 & 21 thru 24)

1шт.

28

H560938

BOOM

45" Boom Weld Asm

1шт.

29

H567834

BOOM

54" Boom & Sprocket (Includes Item 17 & 21 thru 24)

1шт.

30

H567818

BOOM

54" Boom Weld Asm

1шт.

31

H567842

BOOM

66" Boom & Sprocket Asm (Includes Item 17 & 21 thru 24)

1шт.

32

H567826

BOOM

66"Boom Weld Asm

1шт.

33

H93682

BOOM

Guide & Chain Adj Casting for Sprocket Booms (Order from Equipment Price List)

1шт.

34

H3993

Screw Chain Adjusting

1шт.

35

H615559

BOOM

26" Channel Boom Asm

1шт.

36

H615492

BAR

40" Channel Boom Asm

1шт.

37

H615419

BOOM

45" Channel Boom Asm

1шт.

38

H615476

BOOM

54" Channel Boom Asm

1шт.

39

H615450

BOOM

66" Channel Boom Asm

1шт.

40

H326728

GUIDE

Boom Guide & Chain Adju Casting for Channel Booms (Order from Equipment Price List)

1шт.
