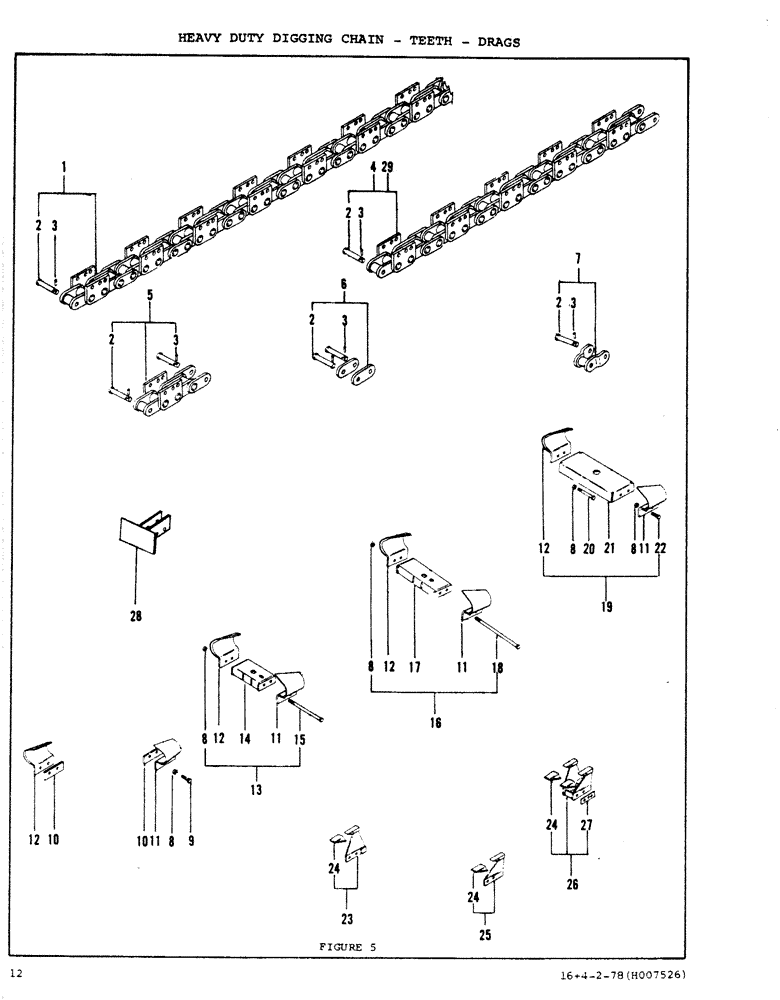

Запчасти Case DAVIS (12) - HEAVY DUTY DIGGING CHAIN, TEETH, DRAGS

1

H564617

CHAIN (CE)

Digging Chain - Heavy Duty - 56 Pitches

1шт.

For chain line for 26" boom, order one Ref. 1. For chain line for 40" boom, order one Ref. 1and one Ref. 4. For chain line for 45" boom, order one Ref. 1, one Ref. 4 and one Ref. 28. For chain line for 54" boom, order one Ref. 1 and two Ref. 4. For chain line for 66" boom, order one Ref. 1 and three Ref. 4.

1шт.

2

H208454

AXLE PIN

Pin - Connector

1шт.

3

H85274

SPLIT PIN/SAFETY PIN

Pin - Keeper (132-334 - 1/8 x 3/4 Cotter pine used as alternate)

1шт.

4

H564625

CHAIN (CE)

Digging Chain - Heavy Duty - 20 Pitches (Includes Items 2 & 3)

1шт.

For chain line for 26" boom, order one Ref. 1. For chain line for 40" boom, order one Ref. 1and one Ref. 4. For chain line for 45" boom, order one Ref. 1, one Ref. 4 and one Ref. 29. For chain line for 54" boom, order one Ref. 1 and two Ref. 4. For chain line for 66" boom, order one Ref. 1 and three Ref. 4.

1шт.

5

H564633

KIT

Repair Section (Includes Items 2 & 3)

1шт.

6

H564815

DRAG LINK

Connector Link (Includes Items 2 & 3)

1шт.

7

H208462

DRAG LINK

Half Link (Includes Items 2 & 3)

1шт.

8

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

HHCS (3/8 x 1 1/4 NF - Grade 8)

1шт.

131-1133

NUT,3/8"-24, GC

Nut (3/8 NF Hex - Lock)

1шт.

10

H208355

SPACER

1шт.

11

H208363

TOOTH

Digging Tooth - Left

1шт.

12

H208371

TOOTH

Digging Tooth - Right

1шт.

13

H564591

Digging Tooth - 8 Inch (Includes item 8, 11 & 12)

1шт.

14

H208439

BRACKET

Tooth Bracket - 8 Inch

1шт.

15

114-264

BOLT,Hex, 3/8" - 24 x 5-1/2", Gr 8

HHCS (3/8 x 5 1/2 NF)

2шт.

16

H564609

KIT

Digging Tooth - 10 Inch (Includes Item 8, 11 & 12)

1шт.

17

H208447

BRACKET

Tooth Bracket - 10 Inch

1шт.

18

114-265

BOLT,Hex, 3/8" - 24 x 7-1/2", Gr 8

HHCS (3/8 x 7 1/2 NF)

2шт.

19

H564757

Digging Tooth - 12 Inch (Include Item 8 11 & 12)

1шт.

20

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS (3/8 x 2 1/2 NF - Grade 8)

2шт.

21

H564781

BRACKET

Tooth Bracket - 12 Inch

1шт.

22

114-25

HHCS (3/4 x 7/8 NF - Grade 8)

4шт.

23

H546911

SPARE PART

Ripper Tooth - Center Right (Includes Item 8 & 9)

1шт.

Need H502401 for right tooth. See drawing H502393, which is sub for left.

1шт.

24

H34546

TOOTH

Point - Ripper Tooth

1шт.

25

H546903

KIT

Ripper Tooth - Center Left (Includes Item 8, 9 & 24)

1шт.

26

H570176

KIT

Ripper Tooth - 6 Inch (Includes Item 8, 9 & 24)

1шт.

27

H220640

SHIM

Spacer

2шт.

28

H577304

LINK

Dirt Drag - 3 Inch (Includes Item 8, 20 & 27)

1шт.

28

H597724

LINK

Dirt Drag - 5 Inch (Includes Item 8, 20 & 27)

1шт.

28

H597708

Dirt Drag - 7 Inches (Includes Item 8, 20 & 27)

1шт.

28

H597732

Dirt Drag - 9 Inch (Includes Item 8, 20 & 27)

1шт.

28

H597716

Dirt drag - 11 inch (Includes 8, 20 & 27)

1шт.

29

H564823

CHAIN (AG)

Digging chain - Heavy Duty - 8 Pitches (Includes Item 2 & 3)

1шт.

For chain line for 26" boom, order one Ref. 1. For chain line for 40" boom, order one Ref. 1and one Ref. 4. For chain line for 45" boom, order one Ref. 1, one Ref. 4 and one Ref. 29. For chain line for 54" boom, order one Ref. 1 and two Ref. 4. For chain line for 66" boom, order one Ref. 1 and three Ref. 4.

1шт.
