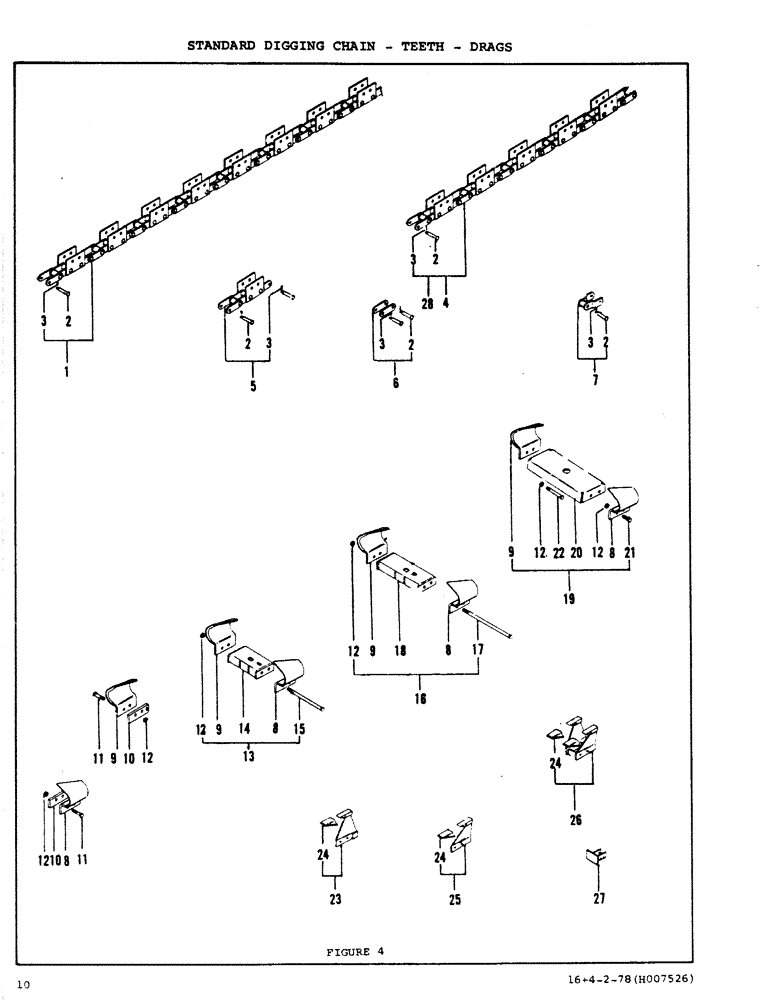

Запчасти Case DAVIS (10) - STANDARD DIGGING CHAIN, TEETH, DRAGS

1

H501791

CHAIN (CE)

Digging Chain - Standard (56 Pitches)

1шт.

For chain line for 26" boom, order one Ref. 1. For chain line for 40" boom, order one Ref. 1and one Ref. 4. For chain line for 45" boom, order one Ref. 1, one Ref. 4 and one Ref. 28. For chain line for 54" boom, order one Ref. 1 and two Ref. 4. For chain line for 66" boom, order one Ref. 1 and three Ref. 4.

1шт.

2

H30072

CONNECTOR, ELEC

Pin - Connector

1шт.

H30072 is a D-shaped pin for a rex chain. If you are looking for the round pin for the ballantine chain, you can order 253215A1 pin. Pins for the ballantine chain 260 and 325 are 257350A1, .565 x 2.718 and 257351A1, .750 x 3.656.

1шт.

3

H85274

SPLIT PIN/SAFETY PIN

Pin - Keeper (132-334, 1/8 x 3/4 Cotter Pin used as alternate)

1шт.

4

H501809

CHAIN (AG)

Digging Chain - Standard - 20 Pitches (Includes Item 2 & 3)

1шт.

For chain line for 26" boom, order one Ref. 1. For chain line for 40" boom, order one Ref. 1and one Ref. 4. For chain line for 45" boom, order one Ref. 1, one Ref. 4 and one Ref. 28. For chain line for 54" boom, order one Ref. 1 and two Ref. 4. For chain line for 66" boom, order one Ref. 1 and three Ref. 4.

1шт.

5

H502054

CHAIN (CE)

Repair Link - Standard (includes two ea. Item 2 & 3)

1шт.

6

H504068

DRAG LINK

Connector Link - Standard (Includes two ea. Item 2 & 3)

1шт.

7

H59360

HALF-LINK

Half Link - standard (Includes Item 2 & 3)

1шт.

8

H208363

TOOTH

Digging Tooth - Left

1шт.

9

H208371

TOOTH

Digging Tooth - Right

1шт.

10

H208355

SPACER

1шт.

11

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

HHCS (3/8 x 1 1/4 NF - Grade 8)

1шт.

12

131-1133

NUT,3/8"-24, GC

Nut (3/8 NF Hex - Lock)

1шт.

13

H539445

TOOTH

Digging Tooth - 8 Inch (Includes Item 8, 9 & 12)

1шт.

14

H135129

TOOTH

Bracket - Tooth Mounting - 8 Inch

1шт.

15

114-264

BOLT,Hex, 3/8" - 24 x 5-1/2", Gr 8

HHCS (3/8 x 5 1/2 NF)

2шт.

16

H539452

TOOTH

Digging Tooth - 10 Inch (Includes Item 8, 9 & 12)

1шт.

17

114-265

BOLT,Hex, 3/8" - 24 x 7-1/2", Gr 8

HHCS (3/8 x 7 1/2 NF)

2шт.

18

H135137

CASTING

Bracket - Tooth Mounting - 10 Inch

1шт.

19

H539460

Digging Tooth - 12 Inch (Inludes Items 8 9, & 12)

1шт.

20

H538967

CASTING

Bracket - Tooth Mounting - 12 Inch

1шт.

21

114-251

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

HHCS (3/8 x 7/8 NF - Grade 8)

4шт.

22

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS (3/8 x 2 1/2 NF - Grade 8)

2шт.

23

H546911

SPARE PART

Ripper Tooth - Center Right (Includes Item 11 & 12)

1шт.

Need H502401 for right tooth. See drawing H502393, which is sub for left.

1шт.

24

H34546

TOOTH

Point - Ripper Tooth

1шт.

25

H546903

KIT

Ripper Tooth - Center Left (Includes item 11, 12 & 24)

1шт.

26

H570176

KIT

Ripper Tooth - 6 Inch (Includes Item 12, 20 & 24)

1шт.

27

H502864

Dirt Drag - 3 Inch (Includes Item 12 & 20)

1шт.

27

H510032

Dirt Drag - 5 Inch (Includes Item 12 & 20

1шт.

H509109

X

Dirt Drag - 7 Inch (Includes Item 12 & 20

1шт.

27

H509596

Dirt Drag - 9 Inch (Includes Item 12 & 20)

1шт.

27

H509117

LINK

Dirt Drag - 11 Inch (Includes Item 12 & 20)

1шт.

28

H519462

CHAIN (AG)

Digging Chain - Stand dard - 8 Pitches (Includes Item 2 & 3)

1шт.

For chain line for 26" boom, order one Ref. 1. For chain line for 40" boom, order one Ref. 1and one Ref. 4. For chain line for 45" boom, order one Ref. 1, one Ref. 4 and one Ref. 28. For chain line for 54" boom, order one Ref. 1 and two Ref. 4. For chain line for 66" boom, order one Ref. 1 and three Ref. 4.

1шт.
