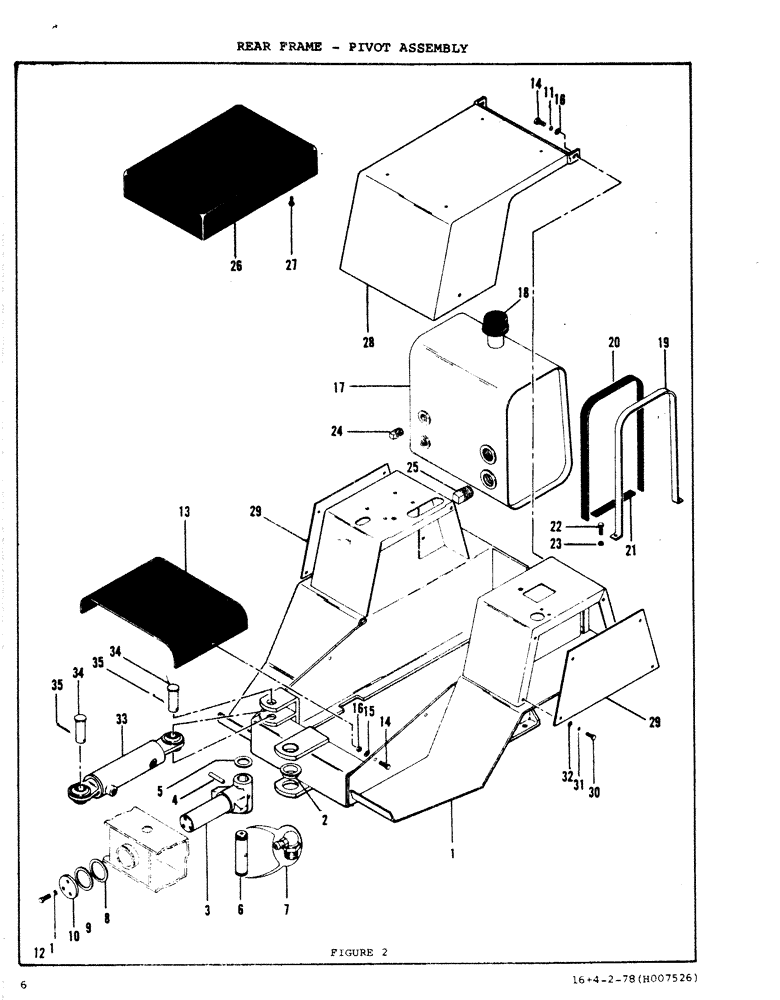

Запчасти Case DAVIS (06) - REAR FRAME, PIVOT ASSEMBLY

1

H624031

Rear Frame Asm

1шт.

2

H179077

BUSHING

- Pivot

2шт.

3

H359984

PIVOT ASSY.

Shaft - Pivot

1шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

Pin - (3/8 x 2 1/2 - Roll)

1шт.

5

H257915

SHIM,0.813mm Thk

1шт.

6

H371054

PIVOT PIN

Pin - Pivot

1шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

8

H191148

SHIM,.031" Thk

1шт.

9

H191155

SHIM,.062" Thk

1шт.

10

H182543

CYLINDER END CAP

Cap

1шт.

11

192

KEY,5/16" Sq x 1 5/8", Par

Washer (3/8 - Lock)

5шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

13

H347740

Cover - Pivot

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

15

195-525

WASHER,3/8", SAE

6шт.

16

230-4216

LOCK NUT,3/8"-16, GA

Nut (3/8 NC - Hex - Lock)

2шт.

17

H609305

TANK

Reservoir - Oil

1шт.

18

H242917

CYLINDER END CAP

Dip Stick

1шт.

19

H300178

STRIP

Strap - Tank

2шт.

20

H295741

CUSHION

Belting (3/4 x 131")

1шт.

21

H295279

Belting (3/4 x 38)

1шт.

22

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

23

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

24

221-48

PLUG

(3/4 - Pipe)

1шт.

25

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

Plug (1 1/4 - Pipe)

1шт.

26

H501288

SEAT

1шт.

27

187-484

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

Screw (#10 x 1/2 - Selt Tapping)

4шт.

28

H629220

Cover - Rear

1шт.

29

H347633

Plate - C

2шт.

30

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS (1/4 x 3/4)

8шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

32

195-518

WASHER,1/4", SAE

(1/4 - Flat)

8шт.

33

H624528

STEERING CYLINDER

Steearing Cylinder Asm (See Figure 30)

1шт.

34

H67272

PIN,25.3mm OD x 84.93mm L

Pin (1 x 3 - Clevis)

2шт.

35

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.
