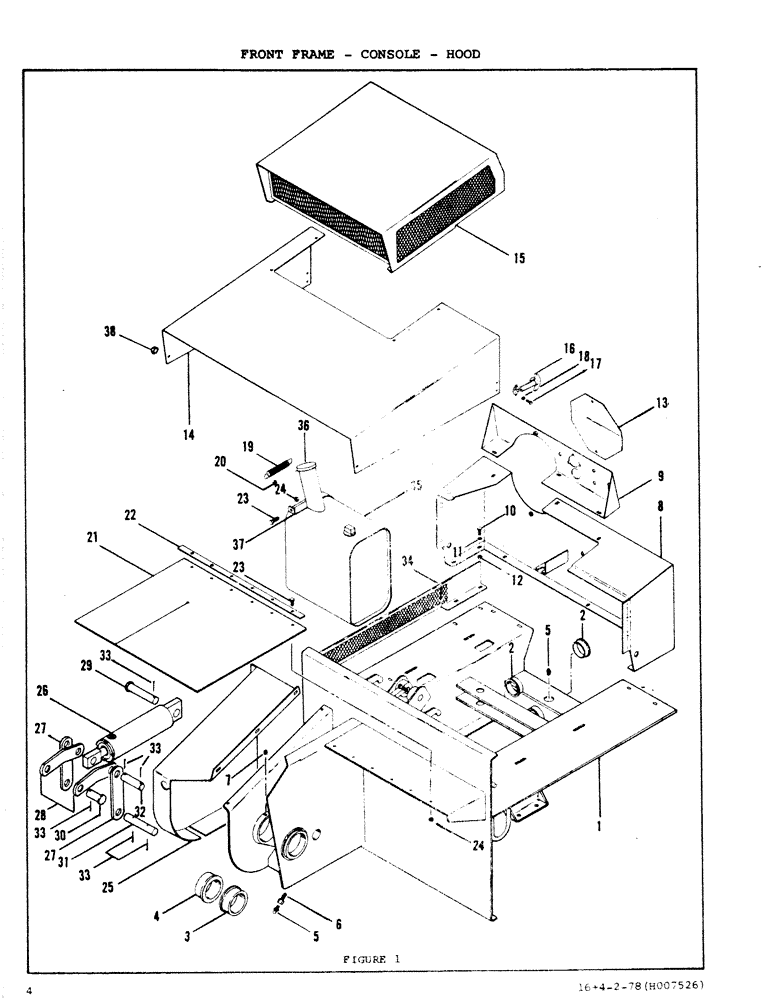

Запчасти Case DAVIS (04) - FRONT FRAME, CONSOLE, HOOD

1

H643858

FRONT FRAME ASM (replaces H623652)

1шт.

h643858 part type 7 made by wichita plant

1шт.

2

H257675

BUSHING,54.3mm ID x 69.85mm OD x 25.4mm L

2шт.

3

H158675

Bushing - Left Hand

1шт.

4

H28969

BUSHING

- Right Hand

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

H35121

FITTING

Extension - Greae Fitting

2шт.

7

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

(1/4 x 1/4 NC - Cup Point) - Right Side

2шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

(3/8 x 3/8 NC - Cup Point) - Left Side

1шт.

8

H623082

CONSOLE

asm - Lower

1шт.

9

H630061

Console Asm - Upper

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

11

195-521

WASHER,5/16", SAE

(5/16 - Flat

23шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16 NC Hex - Lock)

16шт.

13

H346197

Cover - Air Cleaner

1шт.

14

H623041

Hood Asm

1шт.

15

H623660

COVER

- Engine

1шт.

16

H242339

LATCH ASSY.

Latch - Hood

2шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

19

H3377

Spring - H

1шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16 NC Hex - Lock)

2шт.

21

H300103

FLAP

- Dirt

1шт.

22

H300111

STRIP

Keeper Strap - Flap

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

24

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16 NC Hex - Lock)

10шт.

25

H631762

Guard - Chain

1шт.

26

H504076

CYLINDER BLOCK

Boom Cylinder Asm (See Figure 30)

1шт.

27

H64659

DRAG LINK

Link - Straight

2шт.

28

H64642

DRAG LINK

Link - Curved

2шт.

29

H257048

PIN,28.5mm OD x 146.05mm L

(1 1/8 x 5 1/4 - Clevis)

1шт.

30

H65003

AXLE PIN

Pin (1 x 2 - Clevis

1шт.

31

H65029

AXLE PIN

Pin (1 x 4 7/8 - headless)

1шт.

32

H185652

AXLE PIN

Pin (1 x 3 - Headless)

1шт.

33

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

6шт.

34

H630129

Guard - Belt

1шт.

35

H620948

RESERVOIR

Fuel Tank Asm

1шт.

36

H151274

CYLINDER END CAP

Cap - Tap

1шт.

37

H326652

Strap - Tank

2шт.

38

131-430

WASHER

Palnut

2шт.
