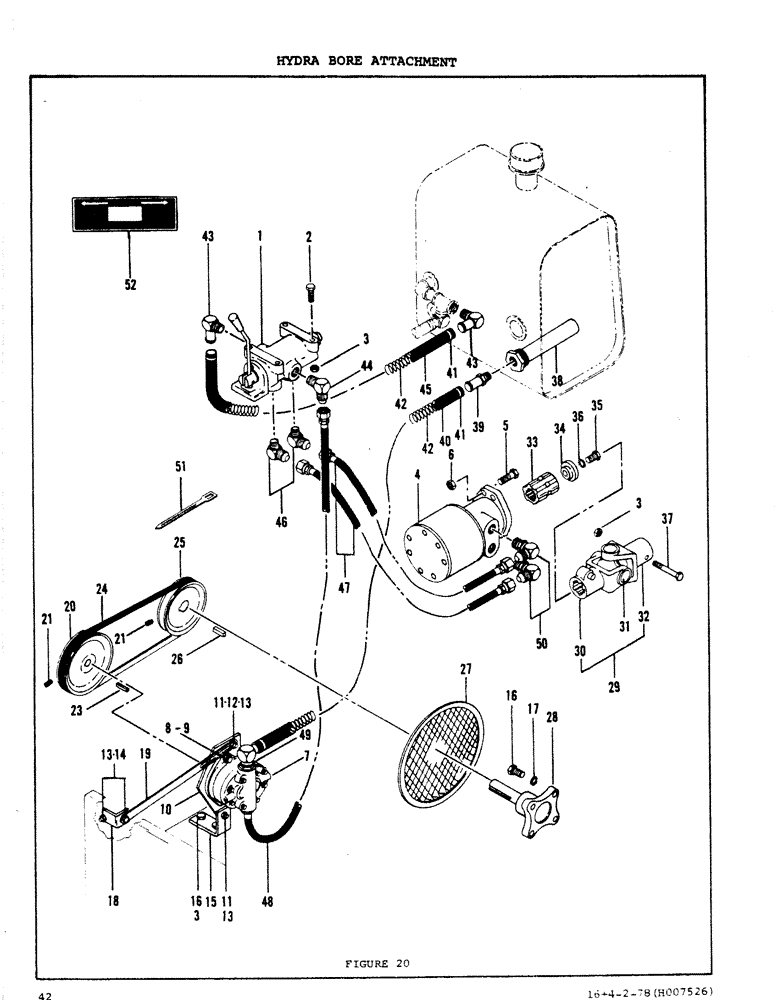

Запчасти Case DAVIS (42) - HYDRA-BORE ATTACHMENT

1

H616136

LOCK VALVE

Hydra-Bore Control Valve Asm (See Figure 44)

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC Hex - Lock)

4шт.

4

D58412

HYDRAULIC MOTOR

Hydra-Bore Motor Asm (See Page 45)

1шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2 NC Hex - Lock)

4шт.

7

H561282

PUMP

Hydra-Bore Pump Asm (See Figure 44)

1шт.

8

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

9

131-1129

LOCK NUT,7/16"-14, GA

Nut (7/16 NC Hex - Lock)

2шт.

10

H330621

Plate - Pump Mtg

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

195-103

WASHER,5/16"

(5/16 Flat - Wrought)

1шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16 NC Hex - Lock)

4шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

H346999

Angle - Pump Mtg

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

17

191-21

Washer (3/8 - Lock)

4шт.

18

H300269

Angle - Link

1шт.

19

H94482

Link - Adjusting

1шт.

20

H188680

SHEAVE

- Pump

1шт.

21

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

(5/16 x 3/4 NC - Cup Point)

2шт.

23

H61168

KEY

(3/16 Sq x 1 1/4)

1шт.

24

H315119

BELT

V-BELT, Drive

1шт.

25

H300251

SHEAVE

- Engine

1шт.

26

T13450

KEY

(1/4 Sq x 1 1/4)

1шт.

27

H300434

SCREEN

- Grass

1шт.

28

H300392

SHAFT

- Stub

1шт.

29

H511113

JOINT

"U" Joint Asm

1шт.

30

H71142

YOKE

- Splined

1шт.

31

H71167

JOURNAL

Kit

1шт.

32

H71159

YOKE

1шт.

33

H312314

ADAPTER

1шт.

34

H314054

RETAINER

- Adapter

1шт.

35

114-415

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5, Full Thd

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

37

113-2259

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

HHCS (3/8 x 2 1/4 NC - Grade 2)

1шт.

38

H228197

FILTER CARTRIDGE

Screen - Suction

1шт.

39

A62863

Connector (3/4 MP x 3/4 Hose Barb)

1шт.

40

H324046

HOSE ASSY.

Hose (3/4 x 75)

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Clamp - Hose

4шт.

42

H309906

SPRING

- Hose

4шт.

43

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90deg. (3/4 MP x 3/4 Hose)

2шт.

44

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90deg. (3/4 MP x 7/8 JIC M)

1шт.

45

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

0.75" ID x 27.00", SAE 30R2 Type 2

1шт.

46

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90deg. (1/2 MP x 7/8 JIC M)

2шт.

47

R25281

HOSE

(1/2 x 50 - 7/8 JIC Fe Sw Ends)

2шт.

48

H257113

HYDRAULIC HOSE,12.70 mm ID x 1600.20 mm, SAE 100R1

(7/8 JIC Fe Sw x 7/8 ORB) 12.70 mm ID x 1600.20 mm, SAE 100R1

1шт.

49

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Elbow - 90deg. (1 1/16 ORB x 3/4 Hose Barb)

1шт.

50

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

51

H119628

MOUNTING CLIP

Strap - Plastic Banding

2шт.

52

321-3597

DECAL

1шт.
