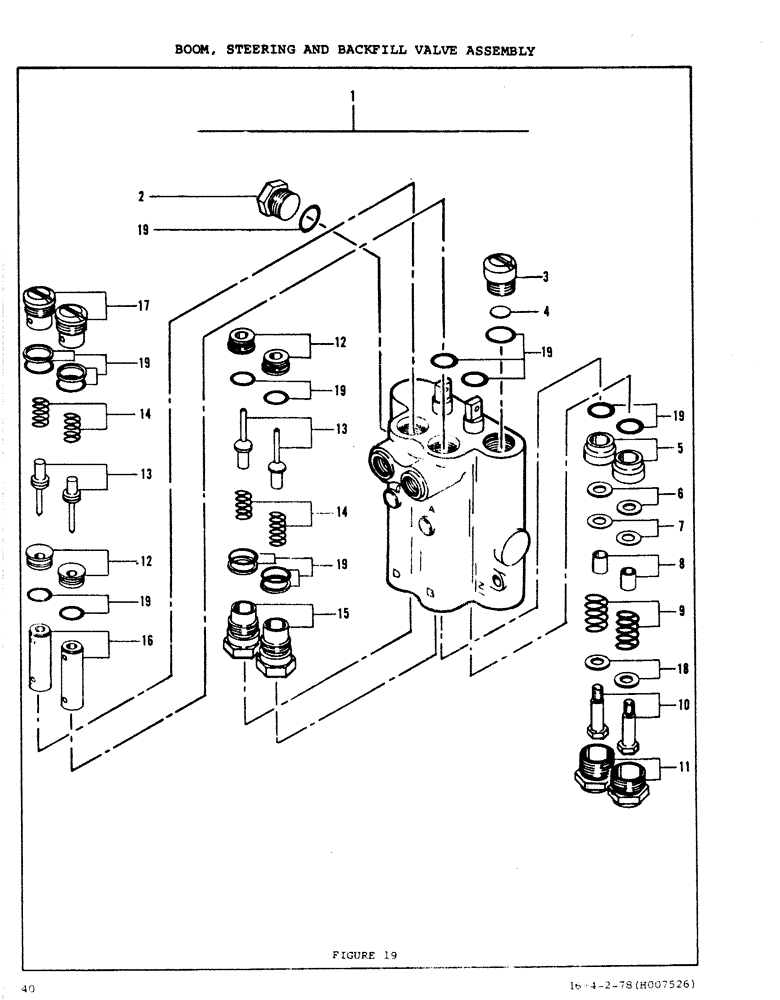

Запчасти Case DAVIS (40) - BOOM, STEERING AND BACKFILL VALVE ASSEMBLY

1

H630244

VALVE

Boom, Steering and Backfill Blade Valve Asm

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

3

F37892

PLUG

Asm (Includes "O" Ring)

1шт.

4

H220798

SHIM,.035" Thk

1шт.

5

F36304

BUSHING

2шт.

6

H253054

WASHER

1шт.

7

H253062

WASHER

2шт.

8

F36239

SPACER

- Spool

2шт.

9

F36306

SPRING

2шт.

10

F36135

Screw - Spool

2шт.

11

F36305

CAP

- Spool

2шт.

12

H636951

SEAT

Asm (Includes "O" Rings)

4шт.

13

F88777

PLUNGER

Poppet (Included in Seal Kit)

4шт.

14

H364182

SPRING

4шт.

15

H636969

FITTING

Lockout Port Fitting (Includes "O" Rings)

2шт.

16

F8229

PLUNGER

2шт.

17

H636977

PLUG

Lockout Seat Retainer (Includes "O" Rings)

2шт.

18

F36908

WASHER

2шт.

19

H636985

SEAL ASSY.

Seal Repair Kit

1шт.
