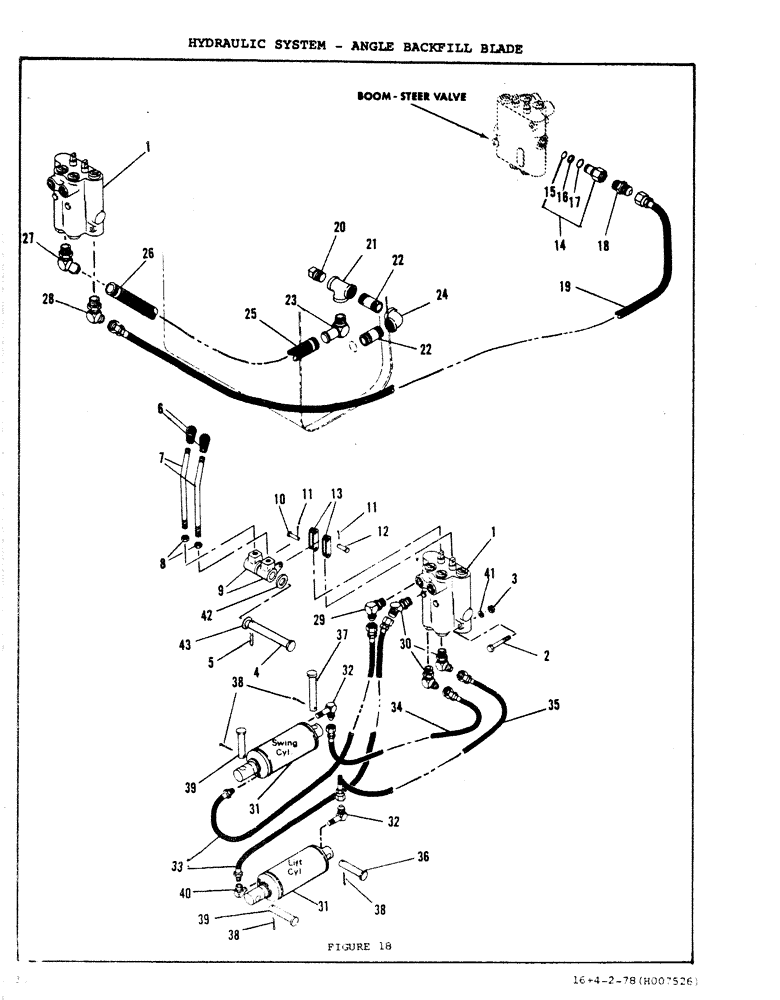

Запчасти Case DAVIS (38) - HYDRAULIC SYSTEM, ANGLE BACKFILL BLADE

1

H630244

VALVE

Backfill Blade Valve Asm (See Figure 40)

1шт.

2

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

HHCS (1/4 x 2 1/4 NC)

2шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

4

H91082

AXLE PIN

Pin (5/8 x 4 3/4 - Clevis)

1шт.

5

A70250

PIN

Hairpin (3/16)

1шт.

6

A14051

GRIP

Knob

2шт.

7

H182063

HANDLE

- Valve

2шт.

8

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

9

H275255

CRANK LEVER

Casting - Valve Handle

2шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16 x 57/64-Clevis)

2шт.

11

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

12

D23693

AXLE PIN

Pin (1/4 x 1 - Clevis)

2шт.

13

H185066

DRAG LINK

Link - Valve

4шт.

14

H347906

FITTING

Adapter - Pressure Beyond

1шт.

15

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" - Ring

1шт.

16

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

Washer - Backup

1шт.

17

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O" -Ring

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Connector (3/4 ORB x 3/4 JIC M)

1шт.

19

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

(3/4 JIC Fe Sw Ends) 9.52 mm ID x 2082.80 mm, SAE 100R1

1шт.

20

221-48

PLUG

(3/4 - Pipe)

1шт.

21

221-425

FITTING,3/4" NPT

Tee (3/4 - Pipe)

1шт.

22

221-214

PIPE,Nipple, 3/4" NPT x 1 3/4"

Nipple (3/4 x 1 3/4 - Pipe)

2шт.

23

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

(3/4 Hose Barb x 3/4 MP)

1шт.

24

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree (Pipe)

1шт.

25

H307769

HOSE ASSY.

Hose (3/4 x 42)

1шт.

26

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Clamp - Hose

2шт.

27

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

Elbow - 45 degree (3/4 ORB x 3/4 Hose Barb)

1шт.

28

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree (3/4 ORB x 3/4 JIC M)

1шт.

29

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

1шт.

30

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (9/16 ORB x 9/16 JIC M)

3шт.

31

H621060

CYLINDER BLOCK

Cylinder Asm - Life and Angle

2шт.

Details of this cylinder are non-serviceable.

1шт.

32

H331884

ELBOW

- 90 degree (1/8 MP x 7/16 JIC M)

2шт.

33

H374033

HOSE ASSY.

Hose (1/4 x 26 - 1/8 MP x 9/16 JIC Fe Sw)

2шт.

34

H347989

HOSE ASSY.

Hose (1/4 x 26 - 1/8 MP x 9/16 JIC Fe Sw)

1шт.

35

H347971

HOSE,0.25" ID x 13.00, SAE 100R1A

1шт.

36

H329359

Pin (1/2 x 2 1/2 - Clevis)

1шт.

37

H43687

AXLE PIN

Pin (1/2 x 3 1/2 - Clevis)

1шт.

38

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

39

H101741

AXLE PIN

Pin (1/2 x 2 3/4 - Clevis)

2шт.

40

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree (1/8 MP x 1/8 Fe P)

1шт.

41

195-518

WASHER,1/4", SAE

(1/4 - Flat)

2шт.

42

H191908

SPACER

1шт.

43

195-108

WASHER,5/8"

(5/8 Flat)

1шт.

44

321-4391

DECAL

(Backfill Control)

1шт.
