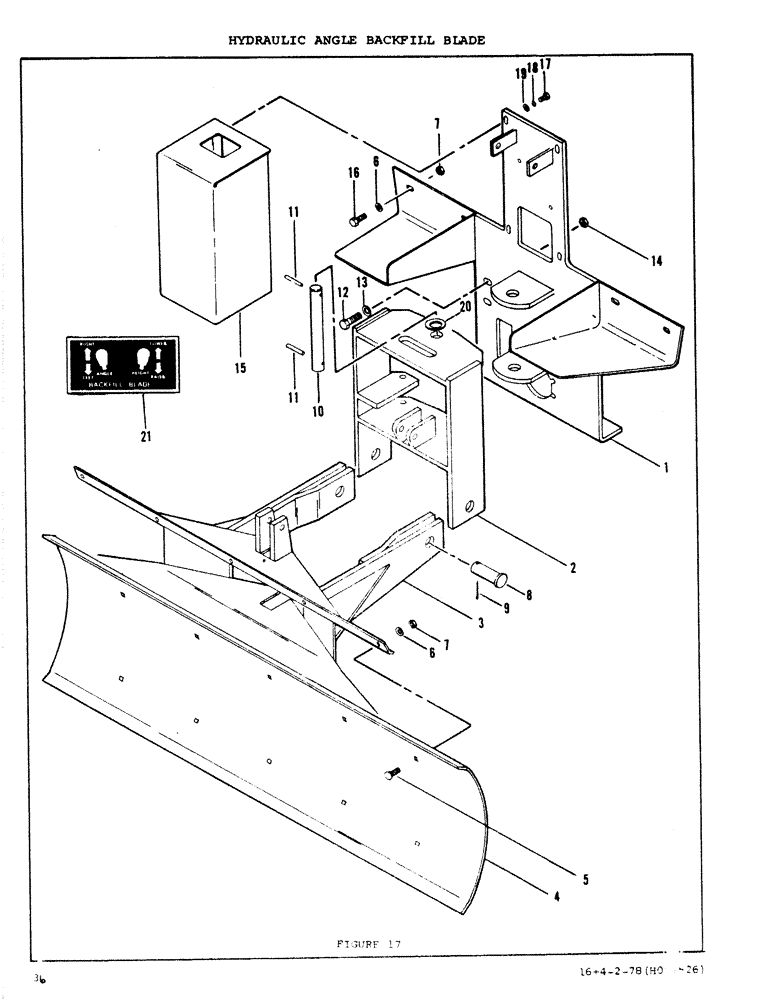

Запчасти Case DAVIS (36) - HYDRAULIC ANGLE BACKFILL BLADE

1

H621789

MOUNTING PARTS

Backfill Blade Mounting Frame

1шт.

2

H621771

Backfill Blade Pivot Frame

1шт.

3

H621813

Backfill Blade Lift Frame

1шт.

4

H328690

BLADE

- Backfill

1шт.

5

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

10шт.

6

195-525

WASHER,3/8", SAE

14шт.

7

230-4216

LOCK NUT,3/8"-16, GA

Nut (3/8 NC Hex - Lock)

14шт.

8

H65003

AXLE PIN

Pin (1 x 2 - Clevis)

2шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

10

H331108

Pin - Pivot

1шт.

11

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

12

113410

BOTTOM

HHCS (1/2 x 1 1/2 NC)

4шт.

13

195-533

WASHER,1/2", SAE

4шт.

14

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2 NC Hex - Lock)

4шт.

15

H631010

Cover - Valve Console

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

195-521

WASHER,5/16", SAE

(5/16 - Flat)

4шт.

20

H332106

WASHER

- Wear

1шт.

21

321-4391

DECAL

- Backfill Blade

1шт.
