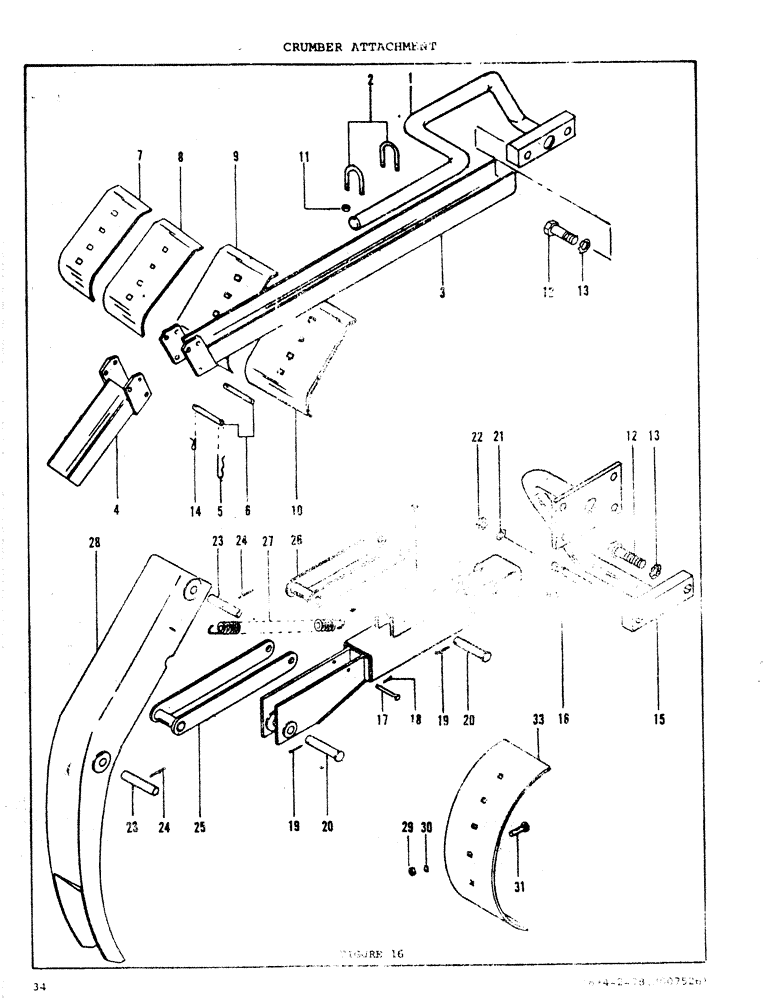

Запчасти Case DAVIS (34) - CRUMBER ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
H502971
BAR
Crumber Bar
1шт.
2
H33316
U-BOLT
"U" Bolt
2шт.
3
H52989
Channel - Long
1шт.
4
H502997
CHANNEL
- Short
1шт.
5
A70250
PIN
Hair Pin
2шт.
6
H41731
AXLE PIN
Pin - Crumber
2шт.
7
H32813
BLADE
- crumber - 5" for 6" Trench
1шт.
8
H32821
BLADE
- Crumber - 7" for 8" Trench
1шт.
9
H32839
BLADE
- Crumber - 9" for 10" Trench
1шт.
10
H32847
BLADE
- Crumber - 11" for 12" Trench
1шт.
11
230-4216
LOCK NUT,3/8"-16, GA
Nut (3/8 NC Hex - Lock)
4шт.
12
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
HHCS (3/4 x 2 3/4 NC)
2шт.
13
193-98
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
2шт.
14
132-344
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
2шт.
15
H607986
ARM
Crumber Arm Asm
1шт.
16
H54312
BOLT
"U" Bolt
2шт.
17
H954395
Pin (3/8 x 2 1/4 Clevis)
1шт.
18
132-310
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
19
132-345
COTTER PIN,3/16" x 1 1/2"
PIN, SPLIT (COTTER), 3/16" x 1 1/2"
2шт.
20
H54320
AXLE PIN,19.05mm OD x 79.38mm L
Pin (3/4 x 2 7/8 - Clevis)
2шт.
21
195-533
WASHER,1/2", SAE
4шт.
22
131-1182
LOCK NUT,1/2"-13, GA
Nut (1/2 NC Hex - Lock)
4шт.
23
H118109
AXLE PIN,19.05mm OD x 92.08mm L
Pin - Special
2шт.
24
138-100
LOCK PIN,3/16" x 1 1/2", Slotted
PIN, 3/16" x 1 1/2", Slotted
2шт.
25
H532440
DRAG LINK
Long Link Asm
1шт.
26
H536664
DRAG LINK
Short Link Asm
1шт.
27
H128280
VALVE SPRING
Spring
1шт.
28
H536656
BRACKET
Crumber Blade Arm Asm
1шт.
30
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
31
111-520
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2
Bolt (1/2 x 1 1/4 NC carriage)
2шт.
32
H542894
BOOM
Outer Crumber Boom - Required with 40" Boom)
1шт.
32
H542902
BOOM
Outer Crumber Boom - Required with 45" Boom)
1шт.
32
H538553
BOOM
Outer Crumber Boom - Required with 54" & 66" Boom)
1шт.
33
H127480
BLADE
Crumber Blade - 5" for 6" Trench
1шт.
33
H60103
BLADE
Crumber Blade - 9" for 10" Trench
1шт.
Выбрано товаров: 36
