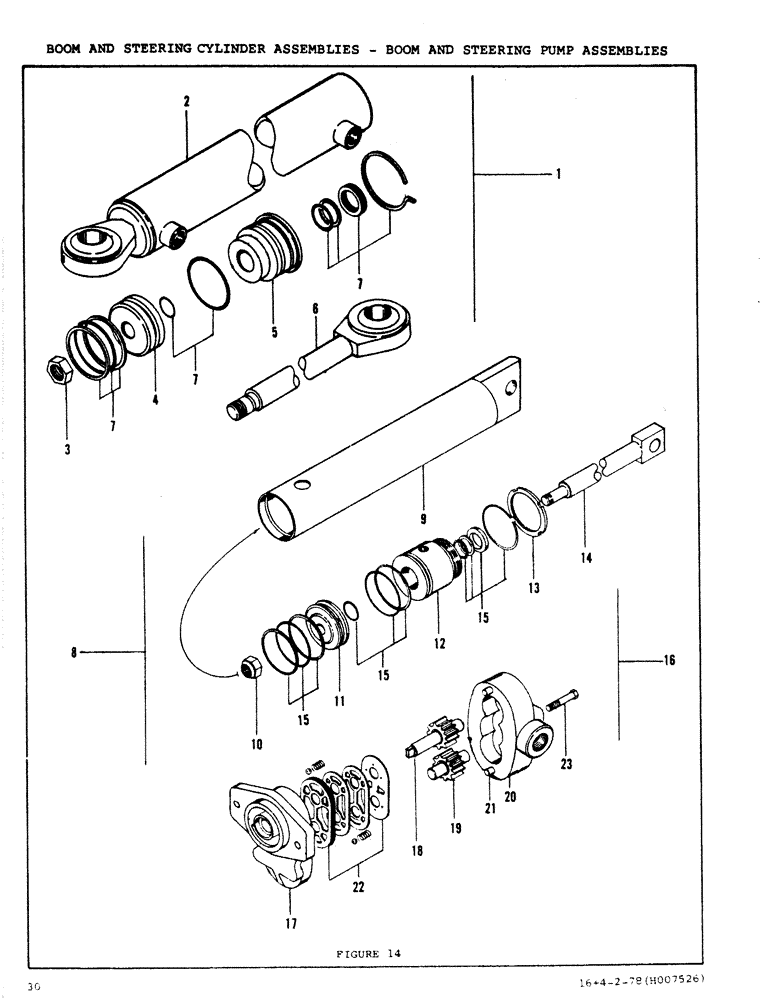

Запчасти Case DAVIS (30) - BOOM AND STEERING, CYLINDER ASSEMBLIES, BOOM AND STEERING PUMP ASSEMBLIES

1

H624528

STEERING CYLINDER

Asm

1шт.

2

H636845

CYLINDER

Barrel Asm

1шт.

3

131-68

LOCK NUT,5/8"-18

Nut - Piston

1шт.

4

H347757

PISTON

1шт.

5

H347765

GLAND

1шт.

6

H636852

PISTON ROD

Asm

1шт.

7

H630186

GASKET KIT

Seal - Repair Kit

1шт.

8

H504076

CYLINDER BLOCK

Boom Lift Cylinder Asm

1шт.

9

H72215

SLEEVE CYLINDER

Barrel Asm

1шт.

10

131-172

LOCK NUT,3/4"-16, GA

Nut - Piston

1шт.

11

A35857

Piston

1шт.

12

H70078

BEARING

1шт.

13

T22283

NUT

- Bearing

1шт.

14

H66571

ROD

Piston Rod Asm

1шт.

15

H507350

GASKET KIT

Seal Repair Kit

1шт.

16

H630251

PUMP

Boom and Steering Pump Asm

1шт.

17

H135483

PLATE ASSY.

Front Plate Asm

1шт.

18

H637298

GEAR WHEEL

Drive Gear Asm

1шт.

19

H135509

Idler Gear Asm

1шт.

20

H135517

HOUSING

1шт.

21

H754580

DOWEL

Pin - Dowel

2шт.

22

H637306

GASKET KIT

Seal Repair Kit

1шт.

23

166-8

12 PT SCREW,Flg, 1/4" - 20 x 1 1/2", Gr 8

Cup Screw

4шт.
