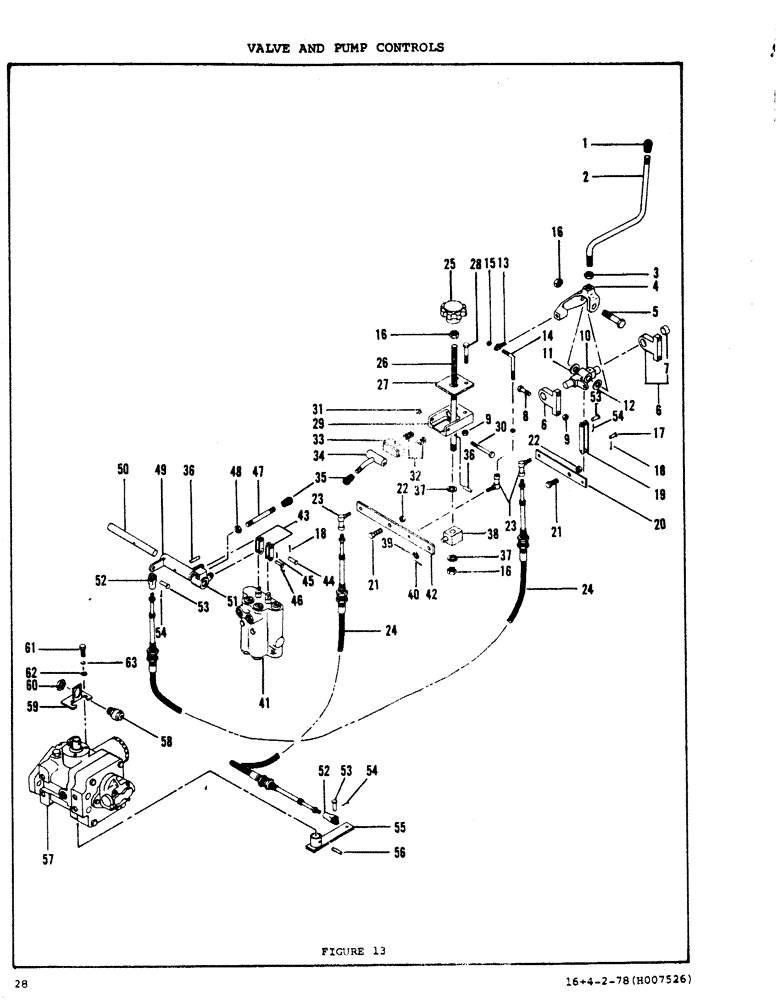

Запчасти Case DAVIS (28) - VALVE AND PUMP CONTROLS

1

H182113

KNOB

- Steering Laver

1шт.

2

H293084

HANDLE

Hanle - Control

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

- Fwd and Reverse

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS (1/2 x 2 1/2 NC)

1шт.

6

H558411

BEARING

Bushing Asm - Shaft Mtg

2шт.

7

H151894

BUSHING

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16 NC Hex - Lock)

6шт.

10

H181974

SHAFT

- Steering Control

1шт.

11

H182097

WASHER

- Friction

1шт.

12

H256305

WASHER

- Friction

1шт.

13

H217109

BOLT

Bolt - Eye (replaces 217-109)

1шт.

14

H346189

BOLT

Bolt - "L"

1шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

3шт.

16

131-1182

LOCK NUT,1/2"-13, GA

Nut (1/2 NC Hex - Lock)

3шт.

17

H44529

AXLE PIN

Pin (3/16 x 3/4 - Clevis)

1шт.

18

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

19

H219006

DRAG LINK

Link - Steering

2шт.

20

H343640

DRAG LINK

Link - Steering

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

230-4216

LOCK NUT,3/8"-16, GA

Nut (3/8 NC Hex - Lock)

2шт.

23

H169920

BALL JOINT

3шт.

24

H592584

CABLE ASSY.

Cable - Control

2шт.

25

H239004

KNOB

- Creep Control

1шт.

26

H255158

CONTROL BLOCK

Shaft - Creep Control

1шт.

27

H233767

COVER ASSY

Plate - Cover

1шт.

28

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

29

H608885

CONTROL BLOCK

Base - Control

1шт.

30

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

HHCS (1/4 x 2 3/4 NC)

1шт.

31

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

32

H253864

VALVE SPRING

Spring

2шт.

33

H608877

BLOCK

- Half Nut

1шт.

34

H618504

CAM

- Lever

1шт.

35

A14051

GRIP

Knob

2шт.

36

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

37

195-533

WASHER,1/2", SAE

2шт.

38

H255141

BLOCK

- Swivel

1шт.

39

195-525

WASHER,3/8", SAE

1шт.

40

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

41

H630244

VALVE

Asm - Boom & Steering (See Figure 40)

1шт.

42

H343657

DRAG LINK

Link - Creep

1шт.

43

H185066

DRAG LINK

Link - Valve

4шт.

44

D23693

AXLE PIN

Pin (1/4 x 1 - Clevis)

2шт.

45

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

46

H35279

AXLE PIN,4.72mm OD x 23.76mm L

Pin (3/16 57/64 - Clevis)

2шт.

47

H242701

HANDLE

Lever - Valve

1шт.

48

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

49

H623090

CRANK

Bellcrank

1шт.

50

H329425

ROD

- Bellcrank

1шт.

51

H275263

LEVER

casting - Lever

1шт.

52

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

End - Clevis

2шт.

53

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

Pin (1/4 x 51/64 - Clevis)

3шт.

54

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

3шт.

55

H623108

Lver - Pump Control

1шт.

56

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

57

H630970

PUMP

Asm - Propulsion (See Figure 32)

1шт.

58

A55882

SOLENOID SWITCH

Switch - Neutral Start

1шт.

59

H329755

SUPPORT

Bracket - Switch

1шт.

60

131-404

LOCK NUT,PAL, 3/4"-16

Nut - Lock

1шт.

61

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

62

195-521

WASHER,5/16", SAE

(5/16 - Flat)

2шт.

63

9628503

NUT,3/8"-16, G5

5/16"-18

2шт.
