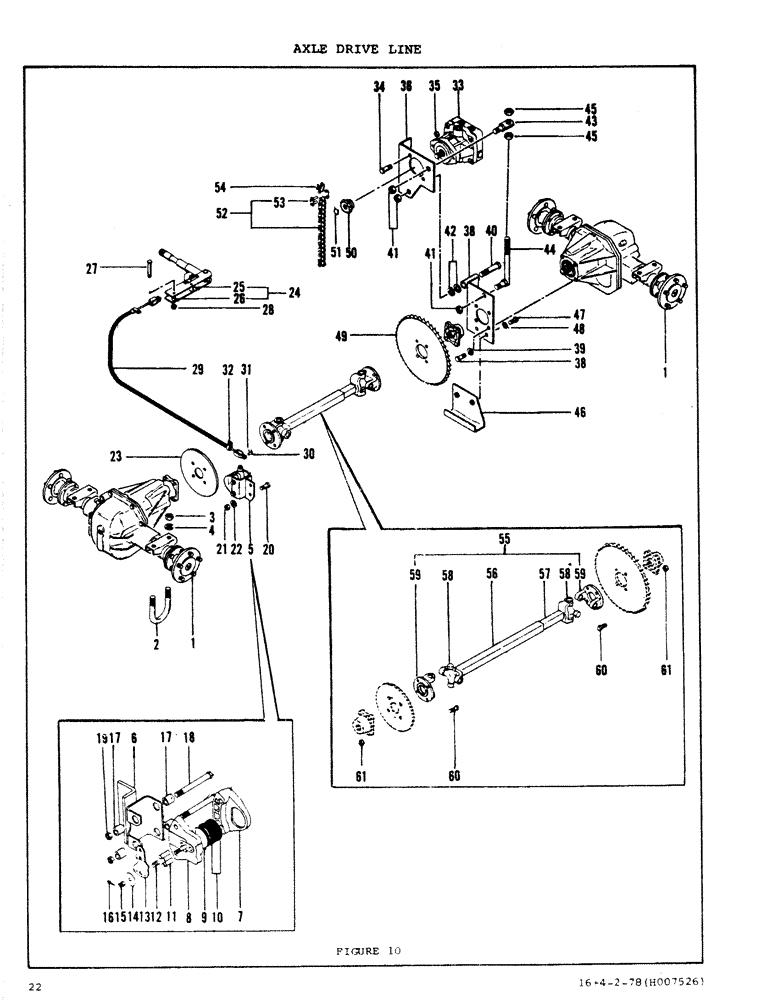

Запчасти Case DAVIS (22) - AXLE DRIVE LINE

1

H612663

CENTER AXLE

Axle Asm - Front & Rear (See Figure 20)

2шт.

2

H182089

U-BOLT

"U" Bolt

4шт.

3

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

8шт.

4

195-533

WASHER,1/2", SAE

8шт.

5

H609263

BRAKE

Parking Brake Asm

1шт.

6

H614859

Mounting Bracket - Brake

1шт.

7

H265504

CARRIER

Side Casting

1шт.

8

H265512

CASTING

Cam Side Casting

1шт.

9

H265702

WASHER

- Backup

1шт.

10

H265520

BRAKE PAD

Puck

2шт.

11

H265538

AXLE PIN

Pin - Push

2шт.

12

H266546

Spring - Compression

1шт.

13

H265553

CAM

1шт.

14

195-04

Washer - Thrust

1шт.

15

H756411

NUT

(5/16 - 24 Castle)

1шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

H265579

BUSHING

Bushirg

4шт.

18

114-259

BOLT,Hex, 3/8" - 24 x 3-1/4", Gr 5

HHCS (3/8 x 3 1/4 NF)

2шт.

19

131-177

LOCK NUT,3/8"-24, GA

Nut (3/8 NF Hex - Lock)

2шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

Nut (3/8 NC Hex - Lock

2шт.

22

195-525

WASHER,3/8", SAE

2шт.

23

H258095

DISC

Brake Disc

1шт.

24

H506881

HANDLE

Brake Lever Asm

1шт.

25

H53942

SPACER

- Long

1шт.

26

H53959

SPACER

- Short

1шт.

27

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

28

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Nut (5/16 NC Hex - Lock)

2шт.

29

H626077

CABLE PULLING GRIP

Cable - Brake

1шт.

30

D23693

AXLE PIN

Pin (1/4 x 1 - Clevis)

1шт.

31

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

32

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

1шт.

33

H619676

FASTENER

Propulsion Motor Asm (See Figure 32)

1шт.

34

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

35

H306480

Motor Mount - Upper

1шт.

37

H612325

Motor Mount - Lower

1шт.

38

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

41

131-1130

LOCK NUT,5/8"-11, GA

Nut (5/8 NC Hex - Lock)

3шт.

42

195-541

WASHER,5/8", SAE

(5/8 - Flat)

1шт.

43

H559112

LUG

Eye Bolt

1шт.

44

H613158

ADJUSTER

- Chain

1шт.

45

425-1410

JAM NUT,Jam, 5/8"-11, G5

(5/8 NC Hex - Jam)

2шт.

46

H613679

Guard - Sprocket

1шт.

47

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49

H313999

DRIVE SPROCKET

Sprocket - Driven

1шт.

50

H305631

DRIVE SPROCKET

Sprocket - Drive

1шт.

51

T25683

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

52

H757211

CHAIN (AG)

Chain (#40 - 83 Pitches)

1шт.

53

H748285

CONNECTOR, ELEC

Connector Link (#40)

1шт.

54

B12502

OFFSET LINK

Half Link (#40)

1шт.

55

H615302

DRIVE ASSY.

Drive Line Asm

1шт.

56

H312397

Tube & Yoke

1шт.

57

H312405

Bar & Yoke

1шт.

58

H149211

U-JOINT SPIDER

Journal & Bearing Kit

2шт.

59

H613539

FLANGE

Yoke

2шт.

60

H264523

BOLT

Bole AN6-12 (3/8 UNF - 24 3A x 1 21/64)

8шт.

61

131-1133

NUT,3/8"-24, GC

Nut (3/8 NF Hex - Lock)

8шт.
