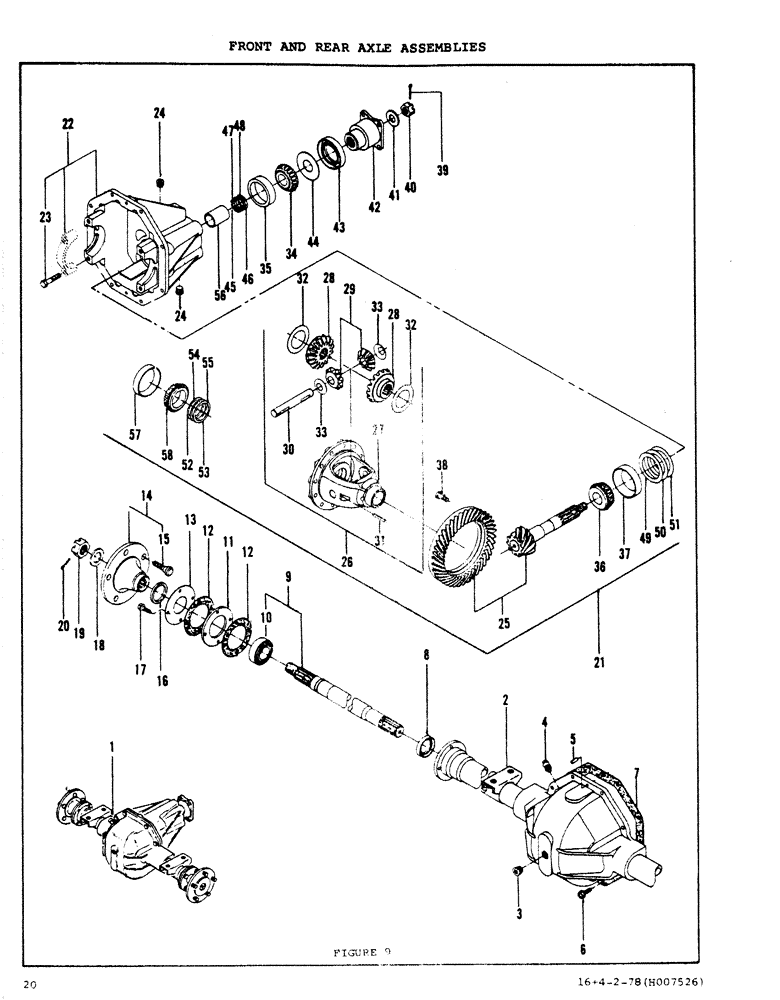

Запчасти Case DAVIS (20) - FRONT AND REAR AXLE ASSEMBLIES

1

H612663

CENTER AXLE

Axle Assembly (Front and Rear)

2шт.

2

H614941

Lower Housing

1шт.

3

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe Plug (1/2 - 14 NPT hex Socket Head)

1шт.

4

T25082

Vent Tube

1шт.

5

H757393

Dowel Pin

2шт.

6

H757401

Self Tapping Screw

8шт.

7

H312595

GASKET

Housing Gasket

1шт.

8

H757419

OIL RESERVOIR

Oil Seal

2шт.

9

H614966

CENTER AXLE

Axle and Bearing Asm

2шт.

10

H757468

TAPERED BEARING

Bearing

1шт.

11

H312611

RETAINER

Wheel Bearing Retainer

2шт.

12

H312629

GASKET

Wheel Bearing Gasket

4шт.

13

H312637

SHIELD

Dust Shield

2шт.

14

H614974

FLANGE

Asm

2шт.

15

H312934

BOLT

Wheel Bolt

5шт.

16

H312645

SEAL ASSY.

Felt Seal

2шт.

17

H757401

Self Tapping Screw

8шт.

18

H312652

WASHER

2шт.

19

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

20

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

21

H614982

Upper Housing Asm

1шт.

22

H614990

CARRIER

Sub-Asm

1шт.

23

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Hex Bolt

2шт.

24

221-1843

PLUG

Pipe Plug

2шт.

25

H61550

Gear and Pinion Set

1шт.

26

H615518

CASE

Differential Case Asm

1шт.

27

H312785

Case

1шт.

28

H312793

GEAR WHEEL

Gear - Differential

2шт.

29

H312801

PINION

- Differential

2шт.

30

H312819

SHAFT

1шт.

31

H303347

LATCH ASSY.

Lock - Shaft

1шт.

32

H312827

WASHER

Thrust Washer - Differential Gear

2шт.

33

H312835

WASHER

Thrust Washer - Differential Pinion

2шт.

34

H757435

CONE

Bearing Cone - Timken #M86643 Cone

1шт.

35

H3148

Bearing Cup - Timken #86610 Cup

1шт.

36

H757443

CONE

Bearing Cone _ Timken #HM88630 Cone

1шт.

37

H753525

CUP

Bearing Cup - Timken #HM88610 Cup

1шт.

38

H225219

BOLT (SPREADER)

Drive Gear Screw

10шт.

39

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

40

H753004

NUT

1шт.

41

F53638

Washer

1шт.

42

H312843

FLANGE

Companion Flange

1шт.

43

H757450

OIL RESERVOIR

Oil Seal

1шт.

44

H312660

WASHER

Oil Seal Washer

1шт.

45

H312850

SHIM

(.003)

1шт.

46

H312868

SHIM

(.005)

1шт.

47

H312876

SHIM

(.010)

1шт.

48

H312884

SHIM

(.030)

1шт.

49

H312892

SHIM

(.003)

1шт.

50

H312900

SHIM

(.005)

1шт.

51

H312918

SHIM

(.010)

1шт.

52

H197947

SHIM,.003" Thk

1шт.

53

H197954

SHIM,.005" Thk

1шт.

54

H197962

SHIM,.010" Thk

1шт.

55

H312926

Spacer

1шт.

57

G15218

BEARING, CUP

Bearing Cup - Timken #LM501310 Cup

2шт.

58

G15219

ROLLER BEARING

Bearing Cone - Timken #LM501349 Cone

2шт.
