Запчасти Case 700 (16) - HYDRAULIC SYSTEM - PUMP CIRCUIT - VALVE CONTROLS

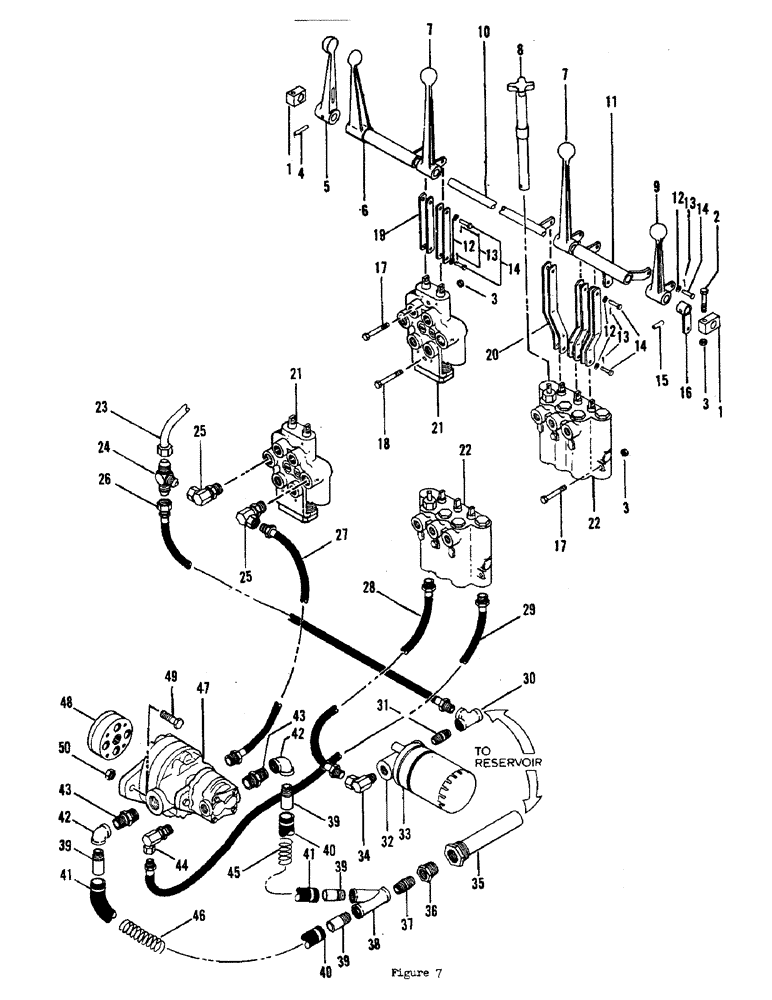

Схема запчастей Case 700 - (16) - HYDRAULIC SYSTEM - PUMP CIRCUIT - VALVE CONTROLS

Артикул

Название

Примечание

Количество

1

H48843

BLOCK

BEARING - lever shaft

3шт.

2

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - jam)

7шт.

4

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

5

H79467

LEVER

- slow speed

1шт.

6

H521781

LEVER

- high speed

1шт.

7

H50922

LEVER

- conveyor & blade

2шт.

8

H96545

KNOB

CONTROL - variable speed

1шт.

9

H50930

LEVER

- boom control

1шт.

10

H521799

SHAFT

LEVER SHAFT

1шт.

11

H521807

BOOM

CONTROL SHAFT ASM

1шт.

12

195-509

WASHER,3/16"

(5/16 - flat)

11шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

11шт.

14

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN (3/16 x 31/32 - clevis)

11шт.

15

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

16

H526137

LEVER

- shaft

1шт.

17

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

3шт.

18

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

19

H93575

DRAG LINK

LINK - high speed & conv. valve

4шт.

20

H93591

LINK

- low speed & boom valve

6шт.

21

H567586

LOCK VALVE

HIGH SPEED & CONV. VALVE ASM (See Figure 34)

1шт.

22

H594457

CONTROL BLOCK

VALVE ASM - boom, blade, & low speed (See Figure 36)

1шт.

23

H560847

TUBE,0.625" OD x 6.437, 21.375" L

ASM - backhoe return (See Figure 18)

1шт.

24

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

ADAPTER TEE (7/8 JIC M x 1/2 MP)

1шт.

25

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degrees (7/8 ORB x 1/2 pipe)

2шт.

26

H197517

HOSE ASSY.

HOSE (1/2 x 21 - 1/2 MP x 7/8 JIC Fe Swv)

1шт.

27

H200766

HOSE ASSY.

HOSE (1/2 x 25 - 1/2 MP x 7/8 JIC M) Wisc engine

1шт.

27

H229047

HOSE ASSY.

HOSE (1/2 x 28 - 1/2 MP x 7/8 JIC M) Deutz engine

1шт.

28

H105619

HOSE ASSY.

HOSE (1/2 x 21 - 1/2 MP x 3/4 ORB)

1шт.

29

H72348

HOSE ASSY.

HOSE (3/8 x 31 - 3/8 MP x 3/4 ORB) Wisc engine

1шт.

29

H51482

HOSE

(3/8 x 24 - 3/8 MP x 3/4 ORB) Lister engine

1шт.

30

221-424

TEE,1/2" NPT

(1/2 - pipe)

1шт.

31

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE (1/2" all thd - pipe)

2шт.

32

F36110

CABLE PULLING GRIP

HEAD - filter

1шт.

33

H311654

FILTER, ENGINE OIL

CARTRIDGE - filter

1шт.

34

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 90 degrees (1/2" pipe)

1шт.

35

H151399

FILTER STRAINER

FILTER - suction screen

1шт.

36

221-604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING (3/4 to 1 - pipe)

1шт.

37

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE (3/4 all thd - pipe)

1шт.

38

221-825

DEFLECTOR

Y-BEND (3/4 - pipe)

1шт.

39

H30650

NIPPLE, LUBE

SPECIAL NIPPLE

4шт.

40

H118026

HOSE ASSY.

HOSE - suction (1 x 28)

2шт.

41

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

42

221-378

ELBOW,90 Degree, 3/4" NPT

(3/4 x 90 degrees - pipe)

2шт.

43

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR (1-1/16 ORB x 3/4 M pipe)

2шт.

44

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

- 90 degrees (3/4 ORB x 3/8 Fe pipe)

1шт.

45

H216994

VALVE SPRING

SPRING - hose

2шт.

46

H33233

VALVE SPRING

SPRING - hose

1шт.

47

H567776

PUMP

TANDEM PUMP ASM (See Figure 40)

1шт.

48

H567941

COUPLING, BREAK AWAY

FLEX COUPLING - pump drive

1шт.

49

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

50

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC - hex lock)

2шт.

Выбрано товаров: 52
